Product Overview
The 1.85 mm jack to jack RF adapter (Model: 80-40-0003) is a high-precision, in-series RF interconnect component designed for ultra-high-frequency signal transmission. Engineered with a 50 ohm impedance and a DC to 67 GHz operating frequency range, this female-to-female straight adapter enables seamless, low-loss connection between two 1.85 mm RF interfaces, minimizing insertion loss and VSWR fluctuations for critical high-frequency applications. Built with passivated stainless steel body and gold-plated phosphor bronze contacts, this stainless steel 1.85 mm RF adapter delivers exceptional durability and signal integrity for millimeter wave, test & measurement, and advanced communication systems, serving the needs of industrial manufacturers, R&D institutions, and system integrators.

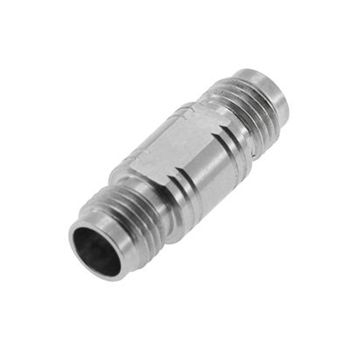

![1.85 mm jack to jack RF adapter 80-40-0003]( "1.85 mm jack to jack RF adapter 80-40-0003")
Core Features
Ultra-Wide Bandwidth for High-Frequency Performance
This 67 GHz 1.85 mm jack to jack adapter supports full DC to 67 GHz frequency coverage, optimized for millimeter wave (mmWave) and high-speed RF signal transmission. It maintains exceptional signal integrity with ultra-low insertion loss and return loss, ensuring accurate data capture and transmission in precision test and high-speed communication scenarios.
Rugged Stainless Steel Construction for Extreme Durability
Crafted with high-grade stainless steel body with passivated finish, this 1.85 mm female to female adapter offers superior corrosion resistance, vibration resistance, and mechanical stability compared to brass alternatives. It operates reliably across a -65°C to 165°C temperature range, with a 3-year warranty for long-term performance in harsh industrial and field environments.
Precision Threaded Coupling for Secure Mating
The precision threaded coupling mechanism ensures stable, secure mating even in high-vibration industrial and field test settings, preventing signal dropouts and maintaining consistent RF performance. It is rated for a minimum of 500 mating cycles, with optional beryllium copper contacts available for enhanced durability.
Universal Standard Compliance for Cross-Brand Compatibility
This adapter strictly adheres to global 1.85 mm interface standards, enabling seamless compatibility with all compliant 1.85 mm RF connectors from leading brands. It is fully ROHS & REACH compliant, meeting environmental and market access requirements for North America, Europe, and Asia-Pacific regions.
Key Technical Specifications
Parameter | Specification |
Model Number | 80-40-0003 |
Gender Configuration | Female to Female (Jack to Jack) |
Orientation | Straight |
Impedance | 50 Ohms |
Operating Frequency Range | DC – 67 GHz |
Body Material/Finish | Stainless Steel / Passivated |
Contact Material/Plating | Phosphor Bronze / Gold |
Coupling Mechanism | Threaded |
Operating Temperature | -65°C to 165°C |
Minimum Mating Cycles | 500 |
Adapter Type | In-Series |
HS Code | 8536909000 |
Warranty | 3 Years |
Compliance | ROHS & REACH |
Industry Applications
Precision Test & Measurement: Interconnection between spectrum analyzers, signal generators, vector network analyzers, and devices under test (DUTs) in R&D laboratories and production testing facilities
mmWave & Wireless Communication: 5G/6G mmWave communication systems, wireless sensor networks, IoT gateways, GPS and LTE telecommunication infrastructure
Medical Electronic Devices: RF ablation equipment, telemetry systems, and medical diagnostic tools requiring stable, high-reliability RF interconnects
Industrial & Smart Infrastructure: Smart meters, remote monitoring devices, industrial automation systems, and aerospace & defense RF electronics
Why Choose LenoRF
LenoRF is a trusted provider of high-precision RF interconnect solutions for R&D institutions, industrial manufacturers, and engineering service providers. Our 1.85 mm RF adapters are manufactured with micron-level CNC machining for tight tolerance control, ensuring consistent high-frequency performance across every unit. We offer flexible MOQ terms (100 PCS for standard adapters), military-grade customization options, and dedicated RF engineering support for performance simulation and custom design. Every adapter undergoes full RF performance testing before shipment, with complete compliance documentation for global market access.
FAQ About This 1.85 mm Jack to Jack Adapter
What is the maximum operating frequency of this adapter?
This 1.85 mm high-frequency RF adapter supports a wide operating frequency range from DC to 67 GHz, making it suitable for mmWave and high-precision test applications.
What is the minimum order quantity for this product?
The standard MOQ for 1.85 mm series adapters is 100 PCS. Small-batch and sample orders are available upon request.
Is this adapter compatible with other brands of 1.85 mm connectors?
Yes, it is designed to comply with universal 1.85 mm interface standards, ensuring compatibility with all compliant brands. We recommend avoiding mixing low-precision and high-precision connectors to prevent equipment damage.
Does this adapter come with a warranty?
Yes, all stainless steel 1.85 mm adapters from LenoRF come with a 3-year manufacturer warranty against material and workmanship defects.
Get Your Custom Quote Today
Whether you are a test equipment manufacturer, wireless communication system integrator, medical device producer, or R&D institution, our team is ready to support your project. Contact us today for a custom quote, sample request, or technical consultation for your 1.85 mm jack to jack adapter needs.
