What Is MMCX RF Connector

Introduction

In the fast-evolving world of radio frequency (RF) technology, the Micro-Miniature CoaXial (MMCX) connector series has emerged as a remarkable innovation. These connectors, with a characteristic impedance of 50 Ω and a maximum operating frequency of 6.00 GHz, offer snap-on coupling and are standardized under IEC 61169-52. MMCX connectors, measuring a mere 2.4 mm in diameter, represent a miniaturized version of the MCX RF connector, making them an ideal choice for lightweight and space-limited applications.

This comprehensive guide will delve into the world of MMCX connectors, exploring their design, technical specifications, historical development, diverse applications spanning GPS, modems, and Wi-Fi hardware, and the availability of variations, including a 75 Ω variant.

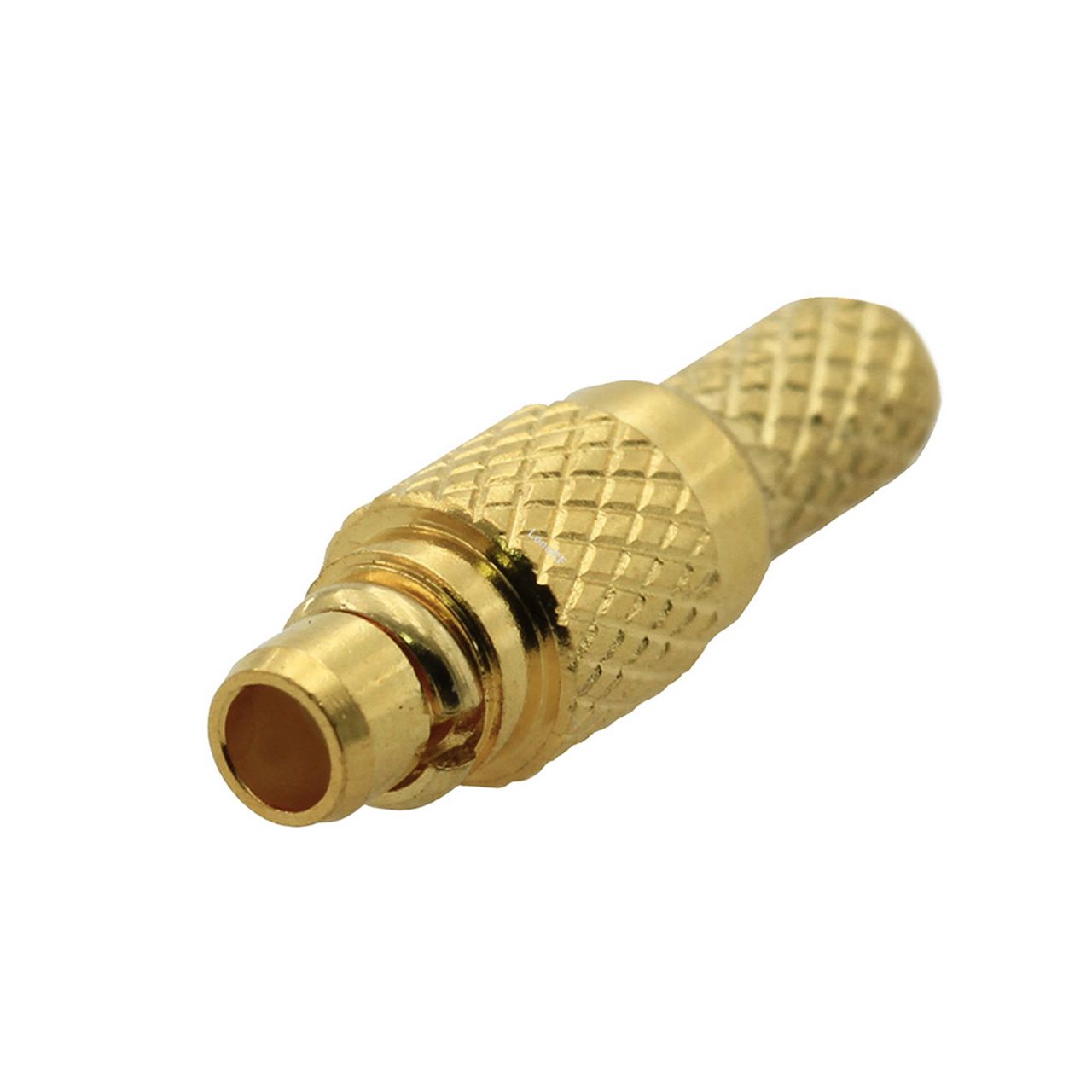

MMCX Plug Connector

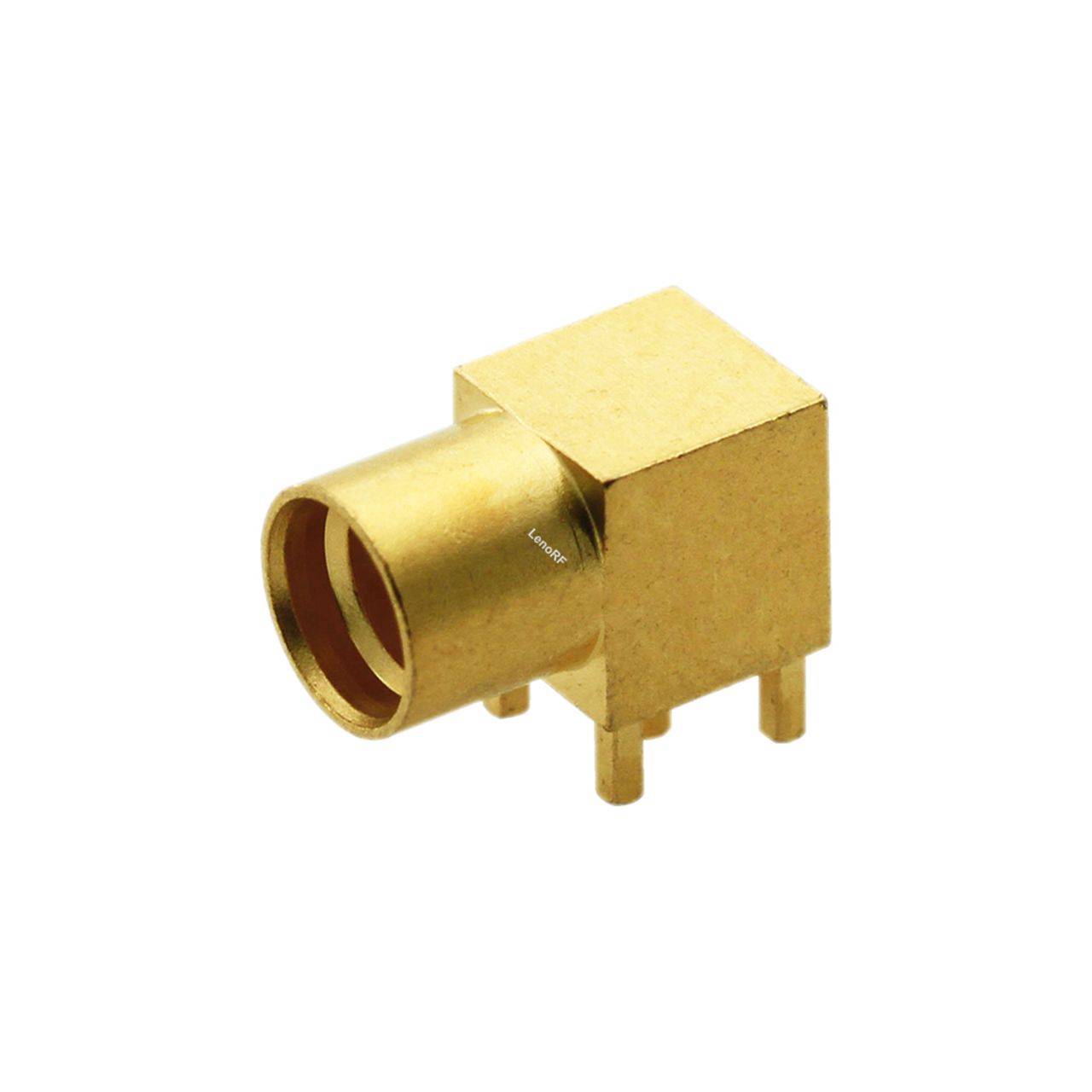

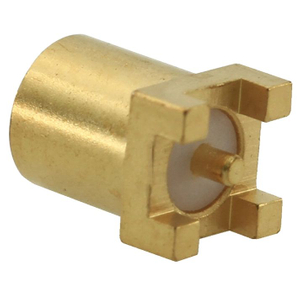

MMCX Jack Connector

Understanding MMCX Connectors

1. Design and Construction

MMCX connectors are designed with a focus on miniaturization and efficiency. They represent a scaled-down version of the MCX RF connector, retaining the snap-on coupling mechanism that ensures quick and secure RF connections. What sets MMCX connectors apart is their diminutive size, with a diameter of just 2.4 mm. This compact design makes them well-suited for applications where space constraints are a critical consideration.

Internally, MMCX connectors maintain the same inner and outer contact interface dimensions as the SMB connector but in a significantly smaller form factor. This unique design approach enables MMCX connectors to deliver exceptional RF performance while minimizing their physical footprint. Furthermore, MMCX connectors employ a slot-less design, effectively reducing RF leakage and enhancing their overall performance.

2. Technical Specifications

To gain a comprehensive understanding of MMCX connectors, let's delve into their key technical specifications:

• Impedance: 50 Ω

• Maximum Operating Frequency: 6.00 GHz

• Coupling Mechanism: Snap-on Coupling

• Interface Standards: IEC 61169-52

These specifications underscore the impressive RF capabilities and design efficiency that MMCX connectors bring to the world of RF technology.

Historical Development

The origins of the MMCX connector can be traced back to the 1990s, with Huber+Suhner presumed to be the developer of the original MCX connector. The miniaturized version, MMCX, emerged as a response to the growing demand for connectors that could deliver high-performance RF connectivity while occupying minimal space.

Applications of MMCX Connectors

MMCX connectors find applications across a diverse range of industries and technologies. Some notable applications include:

1. GPS (Global Positioning System)

MMCX connectors are widely used in GPS devices, where their compact size and efficient RF performance make them an ideal choice for ensuring reliable and accurate location-based services.

2. Modems

In the world of modems, MMCX connectors play a crucial role in establishing RF connections that enable data transmission. Their versatility and ability to deliver broadband performance up to 6 GHz make them a preferred choice in modem hardware.

3. Wi-Fi Hardware

MMCX connectors are a common sight in Wi-Fi hardware, where they facilitate the seamless transmission of RF signals. Their low cost and excellent broadband performance from DC to 6 GHz cover most RF applications in the realm of wireless networking.

Variations of MMCX Connectors

MMCX connectors are also available in a 75 Ω variant, offering versatility to meet the specific impedance requirements of certain applications. This variation ensures that MMCX connectors can adapt to a wider range of use cases while maintaining their core design principles of miniaturization and efficient RF performance.

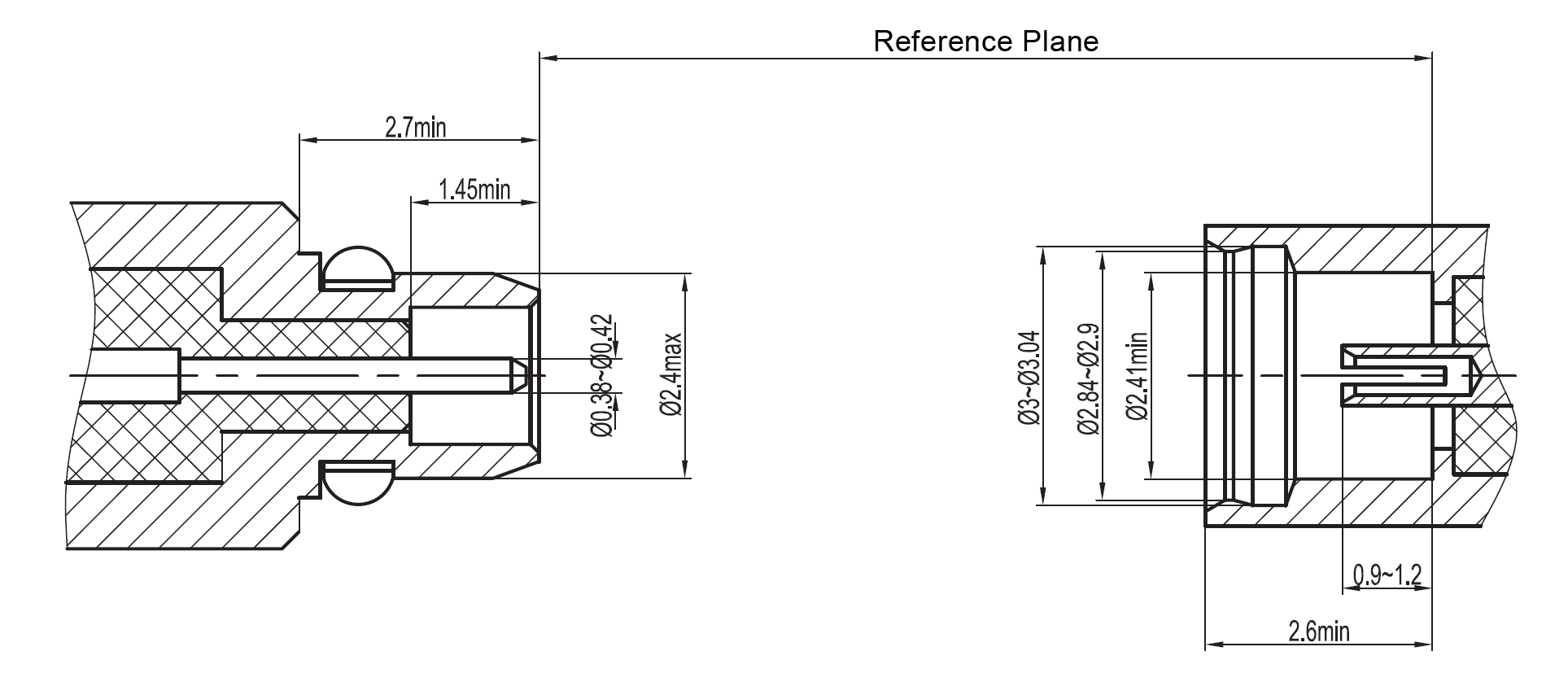

Interface Drawing

Conclusion

MMCX connectors, with their compact size, snap-on coupling mechanism, and exceptional RF performance, represent a significant advancement in RF connector technology. Developed as a miniaturized version of the MCX RF connector, MMCX connectors have found their place in a wide array of applications, from GPS devices and modems to Wi-Fi hardware.

Their standardized design under IEC 61169-52 ensures consistency and compatibility across different applications and industries. Additionally, the availability of a 75 Ω variant further enhances their versatility, allowing MMCX connectors to adapt to specific impedance requirements.

In an era where the demand for smaller, more efficient, and high-performance RF connectors is on the rise, MMCX connectors have proven their worth. These miniaturized marvels have unlocked new possibilities in RF technology, offering reliable and space-efficient RF connections that are essential in today's interconnected world.
