In the realm of radio frequency (RF) technology, connectors play a crucial role in establishing reliable and efficient signal transmission. One such connector, the Reverse-polarity SMA (RP-SMA or RPSMA), has gained prominence due to its unique gender-reversed interface. This connector, while non-standard, finds widespread use in WiFi and WLAN (Wireless Local Area Network) systems, making it the most popular reverse polarity RF connector in the field. In this comprehensive guide, we will delve into the intricacies of RP-SMA connectors, exploring their design, applications, historical context, and technical specifications. Additionally, we will examine the variations within the RP-SMA connector series and its vital role in preventing incorrect antenna attachments.
1. Design and Construction

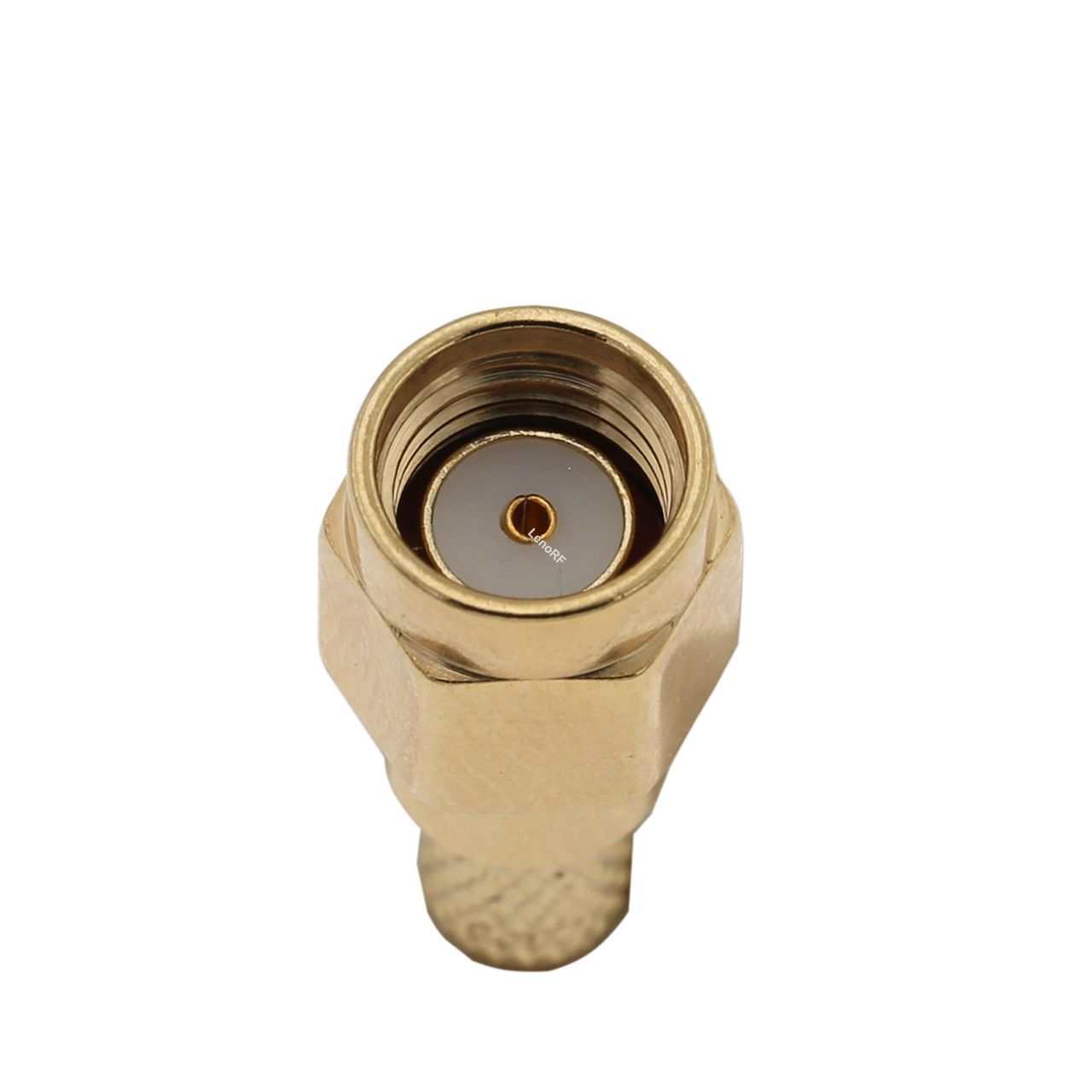

RP-SMA connectors are distinguished by their reverse-polarity design, which alters the traditional gender of the SMA (SubMiniature version A) connector interface. While the standard SMA connector typically features a male outer housing and a female receptacle, the RP-SMA connector inverts this arrangement. In RP-SMA, the male connector houses the female receptacle, while the female connector, often referred to as the jack, contains the center pin. This design adjustment ensures that RP-SMA connectors are not compatible with standard SMA connectors, a feature introduced to prevent incorrect antenna attachments.
2. Technical Specifications
To gain a comprehensive understanding of RP-SMA connectors, it is essential to examine their key technical specifications:
Impedance: 50 Ω
Maximum Operating Frequency: 18.00 GHz
Coupling Mechanism: Screw-on Coupling
These specifications define the electrical performance, frequency range, and coupling mechanism of RP-SMA connectors, making them suitable for a range of applications.
The development and evolution of SMA connectors, including RP-SMA, have a notable history. The origins of SMA connectors can be traced back to Bendix Research Laboratories in 1958, where they were initially designed by James Cheal. These connectors were initially known as the 'BRM connector,' which stood for Bendix Real Miniature connector. In 1962, Omni Spectra continued their development, giving rise to the 'OSM' (Omni Spectra Miniature) designation. It was not until 1968 that SMA connectors were incorporated into MIL-C-39012, receiving their current designation of SMA.
The introduction of RP-SMA connectors occurred with the proliferation of consumer-grade wireless equipment, particularly in WiFi systems. Reverse-gendering of contacts was implemented to prevent the attachment of external antennas that might breach regulations related to Equivalent Isotropically Radiated Power (EIRP) and Total Radiated Power (TRP).
RP-SMA connectors find extensive application in the realm of consumer WiFi equipment, playing a crucial role in ensuring the correct attachment of antennas and preventing potential regulatory violations. Some key applications include:
1. Consumer WiFi Devices
RP-SMA connectors are almost exclusively used in consumer-grade WiFi equipment, such as wireless routers, access points, and WiFi adapters. Their gender-reversed design helps prevent users from attaching incompatible or non-compliant antennas that could lead to signal interference or regulatory violations.
2. Integration of Multiple Technologies
In scenarios where hardware integrates multiple technologies, such as Cellular or Global Navigation Satellite System (GNSS) alongside WiFi, RP-SMA connectors are employed to ensure the correct attachment of antennas specific to each technology. This prevents signal crossover and interference, ensuring optimal device performance.
The RP-SMA series represents a variation of the standard SMA connector. While RP-SMA connectors adhere to a reverse-polarity design, it's essential to note that they maintain compatibility within their own series. Variations within the RP-SMA series may include different cable types, sizes, and configurations to meet diverse application requirements.
RP-SMA connectors, with their reverse-polarity design and distinctive gender-reversed interface, have become integral components in consumer WiFi equipment and applications that require the integration of multiple technologies. Their historical development within the broader context of SMA connectors underscores the importance of design precision and regulatory compliance in RF technology.
The non-standard nature of RP-SMA connectors ensures their incompatibility with standard SMA connectors, a critical feature in preventing incorrect antenna attachments that could lead to signal interference and regulatory issues.
As consumer WiFi equipment continues to evolve and the demand for reliable and efficient wireless connectivity grows, RP-SMA connectors remain a reliable and essential choice for engineers, manufacturers, and end-users. Their adherence to key technical specifications, including a 50 Ω impedance and a maximum operating frequency of 18.00 GHz, makes them suitable for a wide range of applications where signal integrity and compliance with regulatory standards are paramount.
