Overview
High-frequency applications demand precision and reliability, and the BMA connector series excels in meeting these requirements. With a maximum operating frequency of 22.00 GHz, it is well-suited for use in microwave systems where signal integrity and performance are paramount. The coupling mechanism employed by BMA connectors is known as slide-on/push-on coupling. This mechanism allows for a quick and secure connection, making it ideal for applications where ease of use and speed of connection are essential. In terms of interface standards, the BMA connectors adhere to the IEC 61169-33 and MIL-STD-348B standards. These standards ensure that the connectors are designed and manufactured to meet rigorous specifications, guaranteeing compatibility and interoperability with other equipment and components that also comply with these standards.
Features
Frequency range: DC-22 GHz
Impedance: 50 Ohm precision interface
Push-on coupling for fast connection/disconnection
360° rotatable after mating for flexible cable routing
Low VSWR and low insertion loss
Compact size for high-density installations
Gold-plated contacts and brass/stainless-steel housing for corrosion resistance

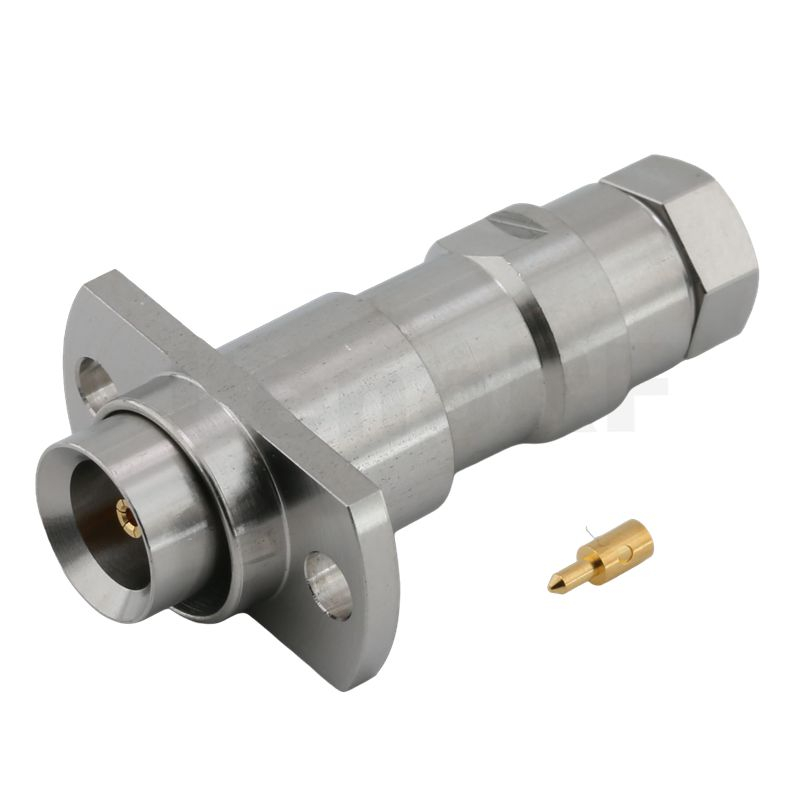

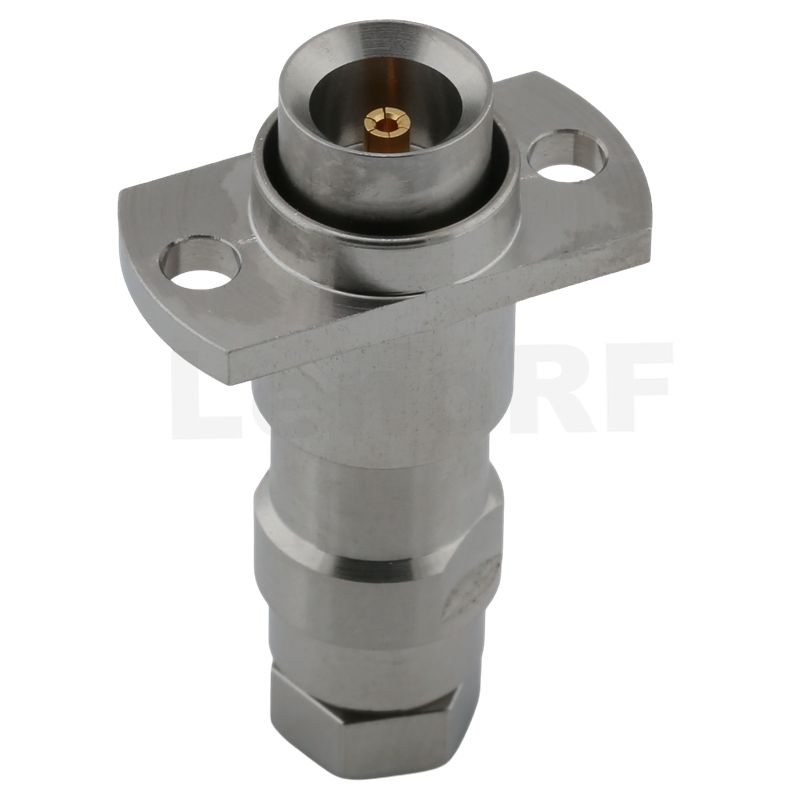

Available in straight, right-angle, panel-mount, flange-mount and PCB-mount versions
Ideal for telecom, test, IoT, and RF module applications
Applications
Telecom equipment
Broadcast
Instrumentation
Test and measurement equipment
Electronic warfare, military radios, and secure communication links
Missile guidance, drones, and satellite payload systems
Radar systems, avionics, and navigation equipment
Specification
Body Plating | Nickel |
Body Material | Brass |
Contact Plating | Gold |
Contact Material | Brass |
Coupling Mechanism | Push-on |
HS Code | 8536909000 |
Frequency (Max GHz) | 22 |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Size Category | Medium |
Temperature Range | -65 to 165 ° C |
Mating Cycles | 500 Min |
Interface Specification | MIL-STD-348/321 |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
What is the difference between threaded, bayonet, and push-on RF connectors?
Threaded (SMA, N, TNC): Secure, vibration-resistant. Bayonet (BNC): Quick connect/disconnect. Push-on (MCX, SMP): Ultra-fast, compact, used in high-density modules.
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
Are RF connectors interchangeable between brands?
Yes, if they follow the same standard (e.g., SMA-to-SMA). However, tolerances, plating, and dielectric quality vary — mixing low-quality and precision connectors can damage equipment.
How do environmental conditions affect RF connectors?
Temperature extremes can cause expansion/shrinkage and change performance. Humidity and salt spray may cause corrosion (use stainless steel or weatherproof designs). Vibration may loosen bayonet types - use threaded connectors in harsh environments.
Can RF connectors be adapted from one type to another?
Yes, RF adapters (e.g., SMA-to-N, BNC-to-TNC) exist. But:Each adapter adds insertion loss and possible VSWR increase.Avoid stacking multiple adapters in sensitive applications.
