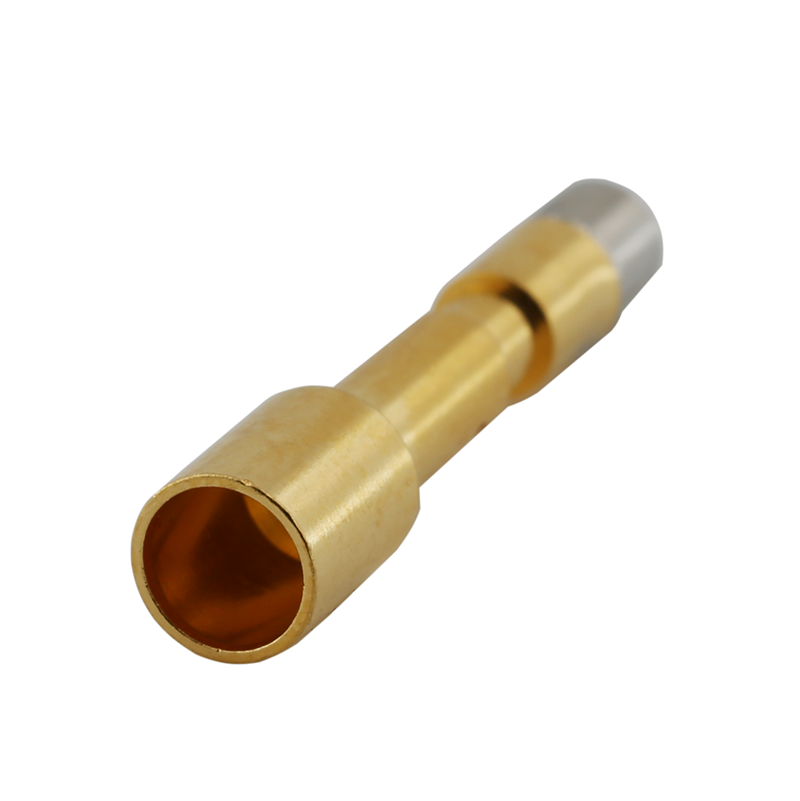

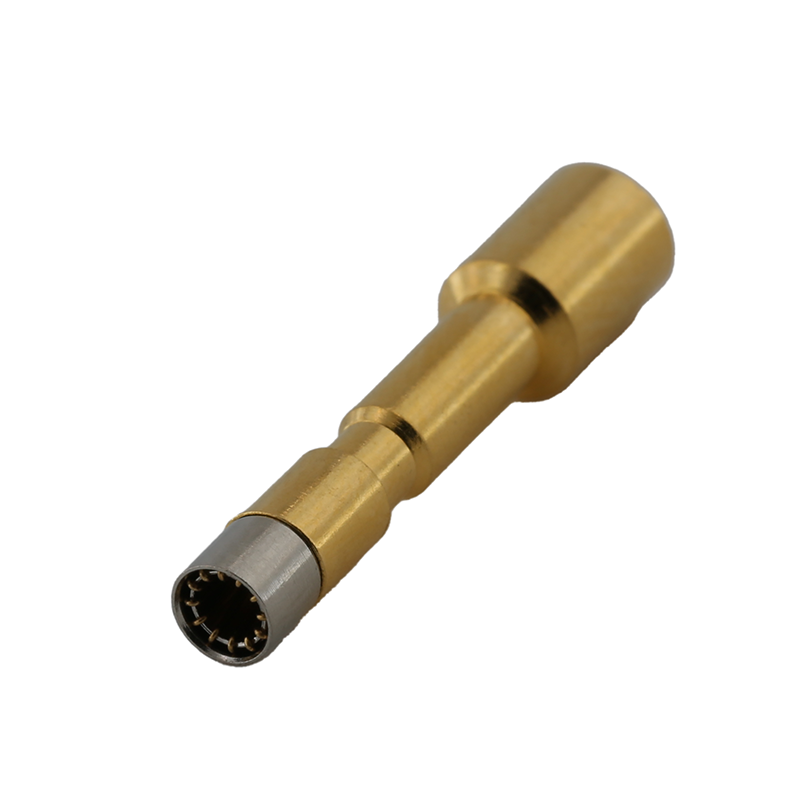

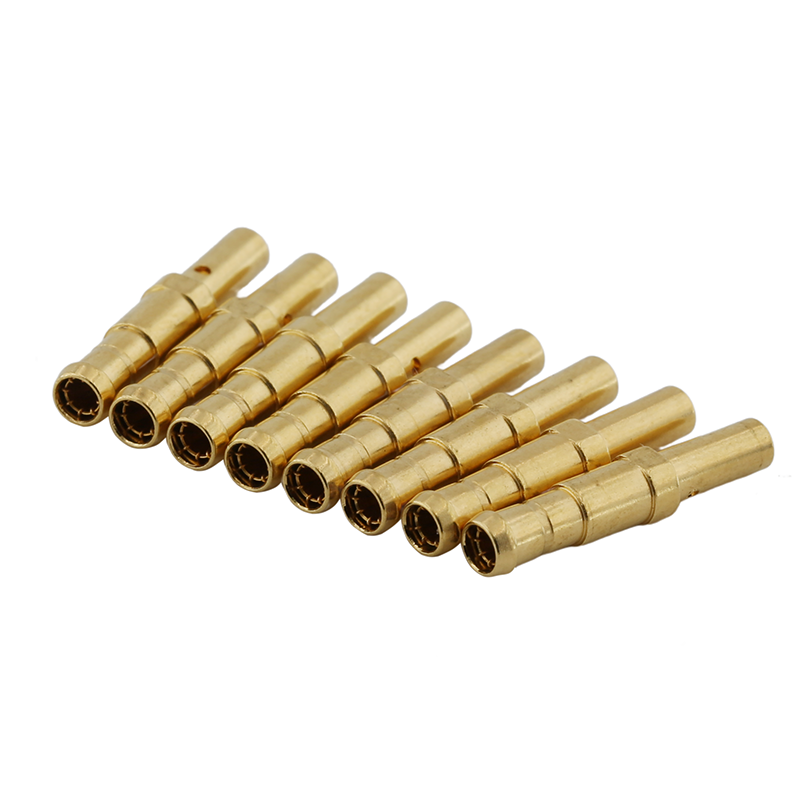

Hyperboloid spring contact

we represents a cutting-edge hyperboloid contact technology designed to meet the highest performance standards. Its contact sleeve features a unique structure of hyperbolically arranged wires that flexibly adapt around the pin, creating multiple linear contact paths.
  • Male

  • Straight

  • Crimping

  • Crimping

  • 1002

Availability:
Quantity:
  • Hyperboloid spring contact benefits:

    .Over 1000 mating cycles

    .Low,stable plug and pull force

    .High shock and vibration resistance.

    .Low contact resistance

    .Operarting temperature range from -65 to 150°C

    .Discontinuity duration less than 1 µs

    Body material: copper alloy

    Surface treatment: gold or sliver.



    For Inch

     Item
    项目
    Contact size
    接触件尺寸
    Barrel AWG
    后套
    Contact resistance
    -low level mΩ
    接触电阻
    Rated test
    current A
    额定测试电流
    Insertion force
    -gauge(max) N
    插入力(最大)
    Extraction force
    -gauge(min) N
    拔出力(最小)
    10# 3.18±0.03 8/10 0.1 33.00 16.7 1.11
    12# 2.39±0.03 10/12 0.5 23.00 8.35 0.83
    14# 1.98±0.03 12/14 1 13.00 8.35 0.56
    16# 1.59±0.025 14/16 5 10.00 8.35 0.56
    20# 1.02±0.025 16/18/20 9 7.50 5.01 0.19
    22# 0.762±0.013 20/22/24 15 5.00 3.34 0.19
    24# 0.635±0.013 20/22/24/26 20 3.00 2.23 0.19
    26# 0.508±0.013 24/26 31 2.00 1.5 0.12
    28# 0.381±0.013 26/28 50 1.50 1 0.12



    For Metric

     Item
    项目
    Contact size
    接触件尺寸
    Barrel AWG
    后套
    Contact resistance
    -low level mΩ
    接触电阻
    Rated test
    current A
    额定测试电流
    Insertion force
    -gauge(max) N
    插入力(最大)
    Extraction force
    -gauge(min) N
    拔出力(最小)
    1 3.5±0.03 8/10 0.1 33.0 16.7 1.11
    2 3.0±0.03 10/12 0.5 23.0 8.35 0.83
    3 2.5±0.03 12/14 0.8 15.0 8.35 0.56
    4 2.0±0.03 14/16 1 13.0 8.35 0.56
    5 1.5±0.03 16/18/20 5 10.0 8.35 0.56
    6 1.0±0.013 20/22/24 9 7.5 5.01 0.19
