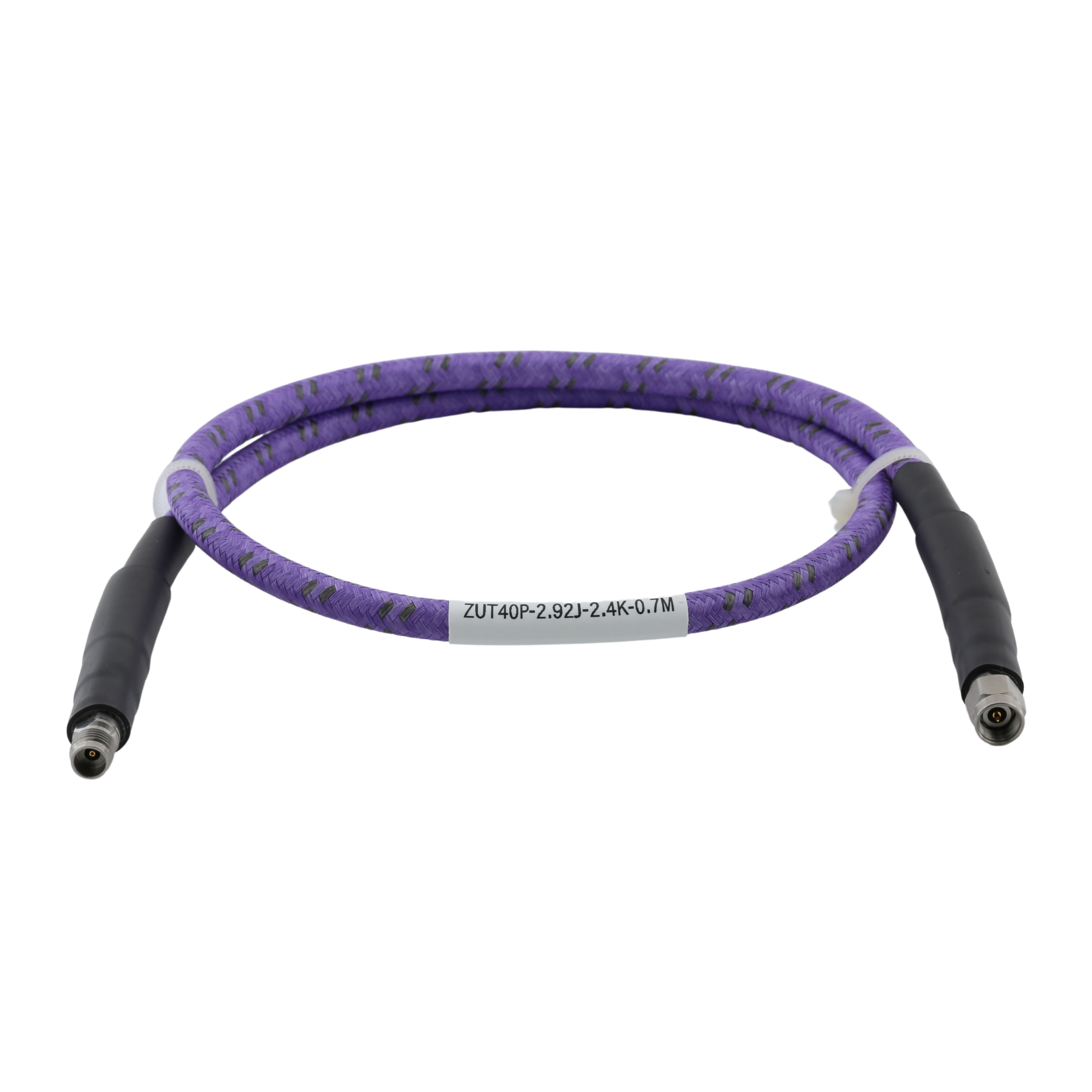

ZUT40P
Male
Straight
Crimping
Crimping
Availability: | |
---|---|
Quantity: | |
The TestLink RF Test Cable Assemblies are engineered to meet high standards in attenuation, phase stability, and durability, making them ideal for test and measurement applications. Equipped with purpose-designed connectors, they feature a specialized connection process that ensures low and stable VSWR, along with robust cable protection against mechanical stress.
The connector bodies and nuts are crafted from stainless steel, providing exceptional durability with a high number of mating cycles. These features make TestLink cables the perfect choice for laboratory or production environments, where reliable signal testing is conducted frequently.
Series | Frequency | Connector |
ZUT06 | 6 GHz | SMA,N ,TNC ,BNC Connector |
ZUT26 | 26.5 GHz | 3.5 mm, SMA, N, TNC Connector |
ZUT26P | 26.5 GHz Armour Cable | 3.5 mm, SMA, N, TNC Connector |
ZUT40 | 40 GHz | 2.40 mm, 2.92 mm Connector |
ZUT40P | 40 GHz Armour Cable | 2.40 mm, 2.92 mm Connector |
ZUT50 | 50 GHz | 2.40 mm, 2.92 mm Connector |
ZUT50P | 50 GHz Armour Cable | 2.40 mm, 2.92 mm Connector |
ZUT67 | 67 GHz | 1.85 mm Connector |
ZUT67P | 67 GHz Armour Cable | 1.85 mm Connector |
ZUT110 | 110 GHz | 1.0 mm Connector |
ZUT110P | 110 GHz Armour Cable | 1.0 mm Connector |
Applications:
•Laboratory test and measurement
•Production line testing
•Field test and measurement
•High stability
•100% tested for reliability
•Superior electrical performance
•Precision connectors
•Extended mating cycles
•Heat-resistant and flame-retardant design
•Armoured jacket available

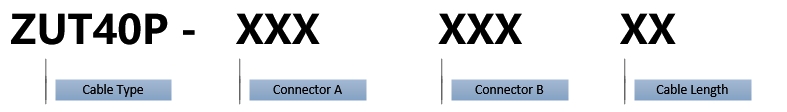

Connector Code | Description |
2.92J | 2.92 mm male |
2.92K | 2.92 mm female |
2.4J | 2.4mm male |
2.4K | 2.4 mm female |
Part No | ZUT40P | |
Cable Construction | ||
Item | Material | |
1 | Conduct: Silver Plated Copper Wire | |
2 | Insulator: LD-PTFE | |
3 | Inner Braiding: Silver Plated Copper Ribbon | |
4 | Interlayer: LD-PTFE | |
5 | Outer Braiding: Silver Plated Copper Wire | |
6 | Jacket: FEP | |
7 | Inner Armour: Spring | |
8 | Strength Braiding: TIN Plated Copper Wire | |
9 | Prevent Distortion: PTFE Ribbon | |
10 | Outer Jacket: PTFE Fiber (Purple + Black) | |
Physical Characteristic | ||
Jacket | 7.60 Mm, 0.299 Inch | |
Cycles | > 5000 | |
Weight | 0.120 Kg/M | |
Temperature | -55℃ - +125℃ | |
Minimum Bending Radius | Dynamic 76.0 Mm, Static 38.0. Mm | |
compressive strength | 180N/25 mm |
Mechanical Characteristic | ||||
Dimension | mm | Inch | ||
Conduct | 0.91 | 0.036 | ||
Insulator | 2.5 | 0.098 | ||
Inner Braiding | 2.66 | 0.105 | ||
Interlayer | 2.95 | 0.116 | ||
Outer Braiding | 3.11 | 0.122 | ||
Jacket | 3.8 | 0.15 | ||
Weight | 0.034 kg/m | |||
Minimum Bending Radius | Dynamic 38.0mm | Static 14.4mm | ||
Cycle | > 5000 | |||
Temperature Range | -55℃~ +165℃ | |||
Electrical Characteristic | ||||
Connector | 18GHz | 26.5GHz | 40GHz | |
Maximum VSWR | 2.92 mm | 1.25:1 | 1.30:1 | 1.30:1 |
2.4 mm | 1.25:1 | 1.30:1 | 1.30:1 | |
Impedance | 50Ω | |||
Velocity Propagation | 83% | |||
Shelding efficiency | > 90 dB | |||
Amplitude Stability | < ±0.04dB@40GHz | |||
Phase Stability | < ±4° @40GHz |
Attenuation(25℃) | ||
Frequency(MHz) | dB/100 ft | dB/100m |
1000 | 11.43 | 37.5 |
3000 | 20.01 | 65.65 |
6000 | 28.59 | 93.81 |
10000 | 37.29 | 122.35 |
12000 | 41.03 | 134.6 |
18000 | 50.8 | 166.67 |
26500 | 62.42 | 204.79 |
40000 | 77.93 | 255.69 |
Average power (25℃,sea level,only cable) | ||
Frequency(MHz) | Watts | |
1000 | 387 | |
3000 | 221 | |
6000 | 155 | |
10000 | 119 | |
12000 | 108 | |
18000 | 87 | |
26500 | 71 | |
40000 | 57 |
LenoRF ensures that TestLink cables deliver unmatched performance for all RF testing needs
