ZUT26A
Male
Straight
Crimping
Crimping
Availability: | |
---|---|
Quantity: | |

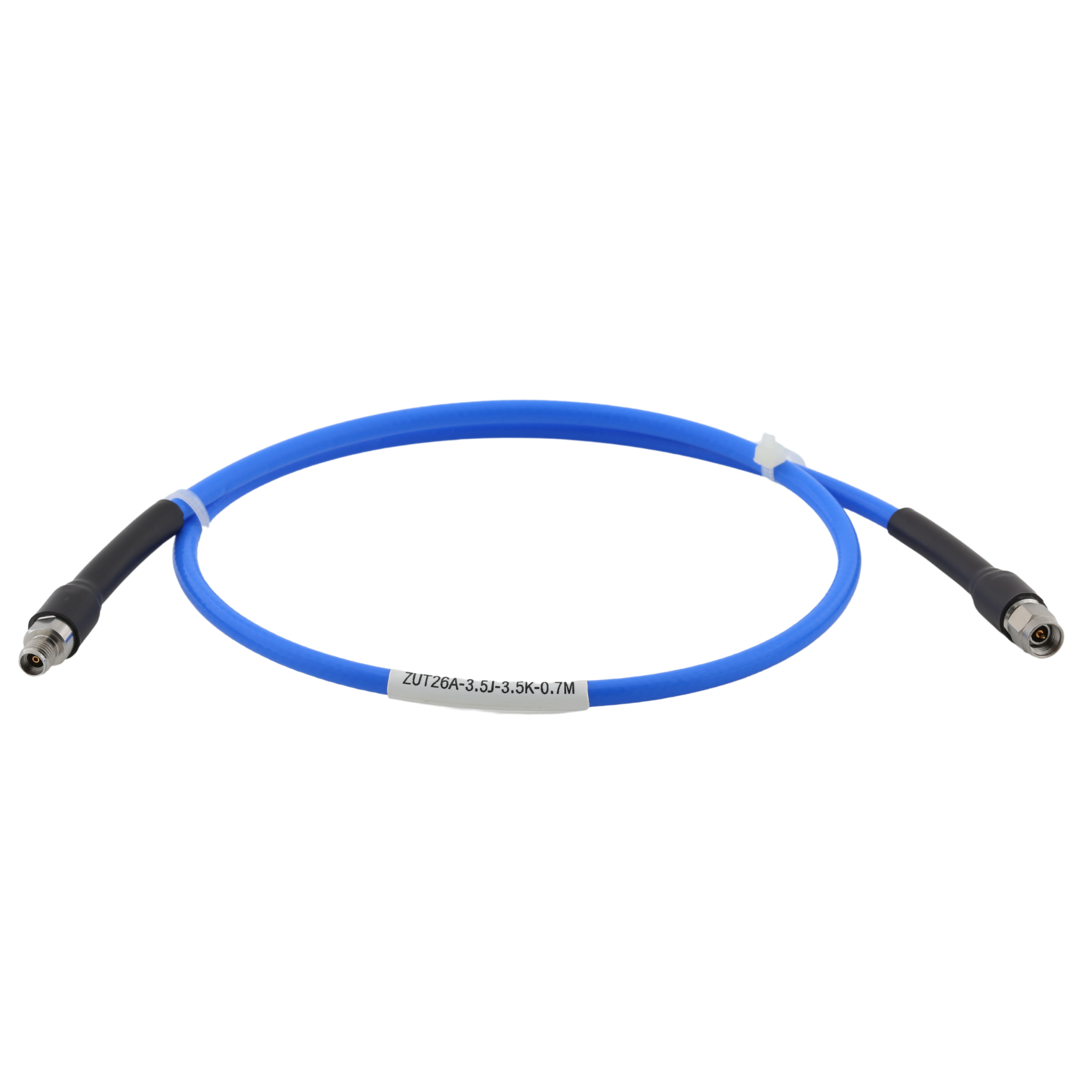

The TestLink RF Test Cable Assemblies are engineered to meet high standards in attenuation, phase stability, and durability, making them ideal for test and measurement applications. Equipped with purpose-designed connectors, they feature a specialized connection process that ensures low and stable VSWR, along with robust cable protection against mechanical stress.
The connector bodies and nuts are crafted from stainless steel, providing exceptional durability with a high number of mating cycles. These features make TestLink cables the perfect choice for laboratory or production environments, where reliable signal testing is conducted frequently.
Series | Frequency | Connector |
ZUT06 | 6 GHz | SMA,N ,TNC ,BNC Connector |
ZUT26 | 26.5 GHz | 3.5 mm, SMA, N, TNC Connector |
ZUT26P | 26.5 GHz Armour Cable | 3.5 mm, SMA, N, TNC Connector |
ZUT40 | 40 GHz | 2.40 mm, 2.92 mm Connector |
ZUT40P | 40 GHz Armour Cable | 2.40 mm, 2.92 mm Connector |
ZUT50 | 50 GHz | 2.40 mm, 2.92 mm Connector |
ZUT50P | 50 GHz Armour Cable | 2.40 mm, 2.92 mm Connector |
ZUT67 | 67 GHz | 1.85 mm Connector |
ZUT67P | 67 GHz Armour Cable | 1.85 mm Connector |
ZUT110 | 110 GHz | 1.0 mm Connector |
ZUT110P | 110 GHz Armour Cable | 1.0 mm Connector |
Applications:
•Laboratory test and measurement
•Production line testing
•Field test and measurement
•High stability
•100% tested for reliability
•Superior electrical performance
•Precision connectors
•Extended mating cycles
•Heat-resistant and flame-retardant design
•Armoured jacket available
Connector Code | Description |
3.5J | 3.5 mm male |
3.5K | 3.5 mm female |
SMAJ | SMA male |
SMAK | SMA female |
NJ | N male |
NK | N female |
TNCJ | TNC male |
TNCK | TNC female |
Connector Code | Description |
SMAJW | 3.5 mm male |
NJW | 3.5 mm female |
TNCAJ | TNCA male |
TNCAK | TNCA female |

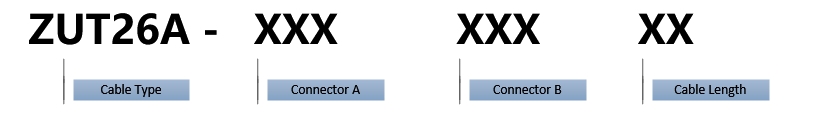

Cable Part No | ZUT26A | ||

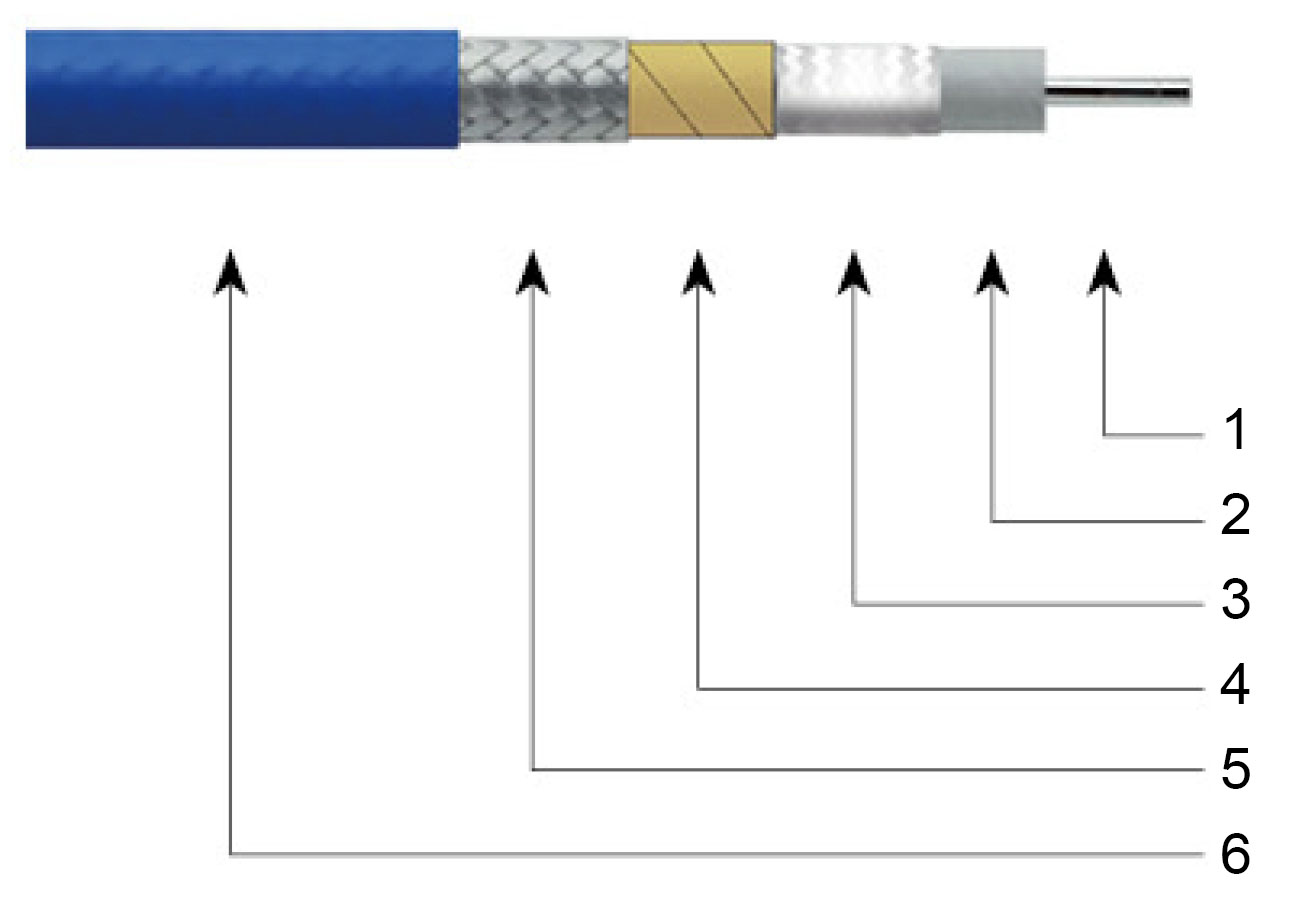

Cable Construction | |||
No | Material & Surface Finish | ||
1 | Conduct: | Silver plated cooper wire | |
2 | Insulator: | LD-PTFE | |
3 | Inner Braiding: | Silver plated cooper ribbon | |
4 | Interlayer | High-temperature aluminum foil | |
5 | Outer Braiding: | Silver plated cooper braiding | |
6 | Jacket: | FEP |
Mechanical Characteristic | |||
Dimension | mm | Inch | |
Conduct | 0.93 | 0.037 | |
Insulator | 2.98 | 0.117 | |
Inner Braiding | 3.18 | 0.125 | |
Interlayer | 3.35 | 0.137 | |
Outer Braiding | 3.9 | 0.154 | |
Jacket | 4.95 | 0.195 | |
Weight | 0.050kg/m | ||
Minimum Bending Radius | (Dynamic 50.0mm),(Static 25.0mm) | ||
Cycle | > 5000 | ||
Temperature Range | -55℃~ +200℃ | ||
Electrical Characteristic | |||
6GHz | 18GHz | 26.5GHz | |
Maximum VSWR | 3.5mm 1.15:1 | 1.20:1 | 1.25:1 |
SMA 1.15:1 | 1.25:1 | 1.30:1 | |
N/TNC 1.15:1 | 1.25/1.30:1 | ||
Impedance | 50Ω | ||
Velocity Propagation | 76% | ||
Shielding Efficiency | > 90 dB | ||
Amplitude Stability | < ±0.03dB@26.5GHz | ||
Phase Stability | < ±2.7° @26.5GHz |
Attenuation(25℃) | ||
Frequency(MHz) | dB/100ft | dB/100m |
1000 | 12.20 | 40.04 |
3000 | 22.66 | 74.35 |
6000 | 34.16 | 112.06 |
10000 | 46.80 | 153.54 |
12000 | 53.63 | 174.96 |
18000 | 68.29 | 224.05 |
26500 | 88.45 | 290.19 |
Average power (25℃,sea level, only cable) | ||
Frequency(GHz) | Watts | |
1000 | 553 | |
3000 | 315 | |
6000 | 220 | |
10000 | 168 | |
12000 | 153 | |
18000 | 123 | |
26500 | 100 |
LenoRF ensures that TestLink cables deliver unmatched performance for all RF testing needs
Regular models require 15 days, while some complex connectors require 25 days.
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
Our products fully comply with ROHS & REACH regulations.
Yes. We are honored to provide military-grade products with exceptionally stable quality.
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
Body: Brass, stainless steel, or beryllium copper (with nickel, gold, or silver plating). Insulator: PTFE, PE, or advanced low-loss dielectrics. Contacts: Gold-plated brass or beryllium copper for low resistance and durability.
Some RF connectors are designed with gaskets and sealing (e.g., N-type, 4.3-10) for outdoor telecom, antennas, and harsh environments. Indoor lab connectors (e.g., SMA, BNC) are usually not weatherproof unless specified.
Male: Has a center pin and usually an outer thread or bayonet. Female: Has a receptacle (socket) for the center pin and matching thread. Some connectors (like SMA) can be confusing because “reverse polarity” (RP-SMA) swaps pin/socket configuration.
VSWR (Voltage Standing Wave Ratio) indicates signal reflection. Ideal: 1.0 (perfect match). Lower VSWR means less signal loss and distortion.
