The TestLink RF Test Cable Assemblies are engineered to meet high standards in attenuation, phase stability, and durability, making them ideal for test and measurement applications. Equipped with purpose-designed connectors, they feature a specialized connection process that ensures low and stable VSWR, along with robust cable protection against mechanical stress.
The connector bodies and nuts are crafted from stainless steel, providing exceptional durability with a high number of mating cycles. These features make TestLink cables the perfect choice for laboratory or production environments, where reliable signal testing is conducted frequently.

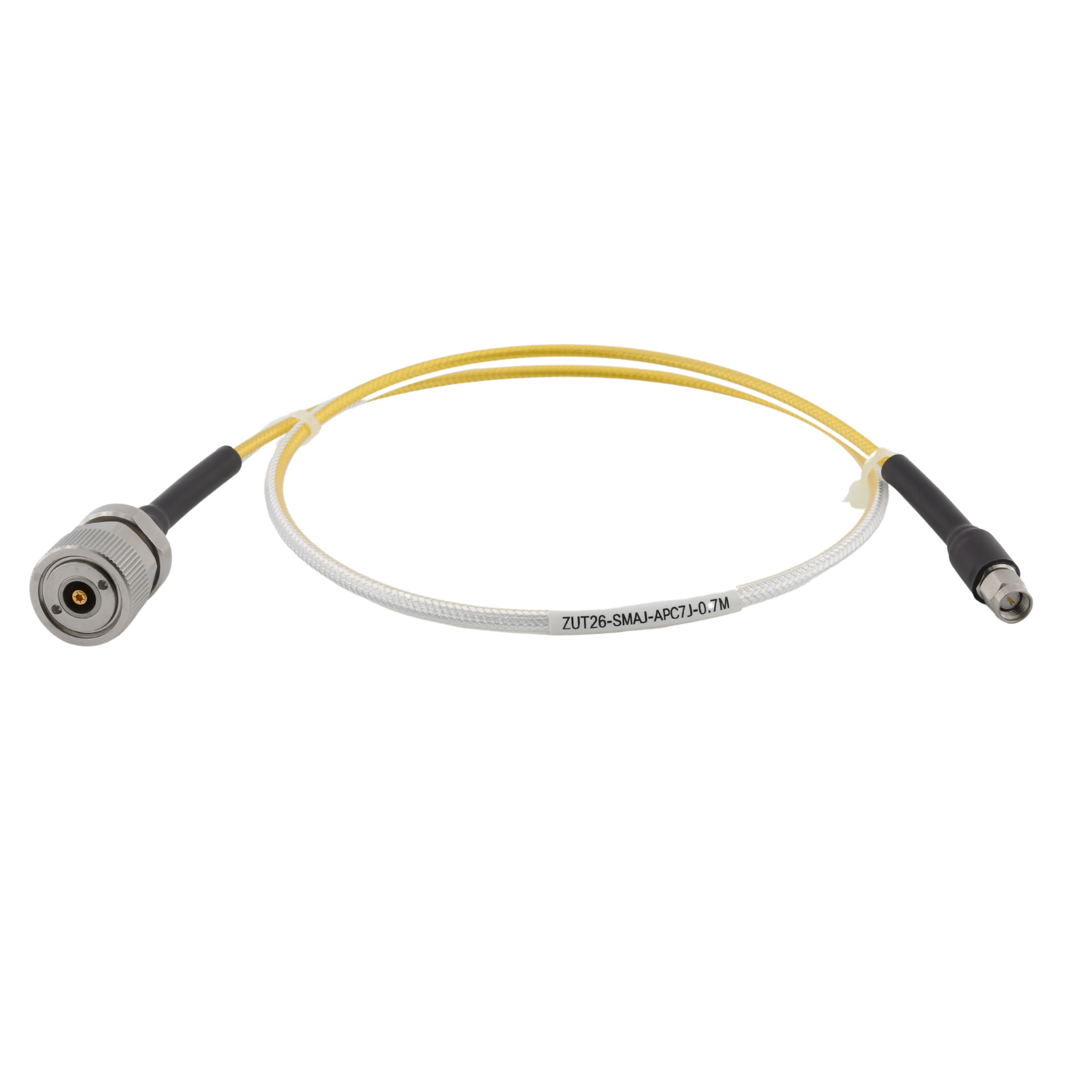

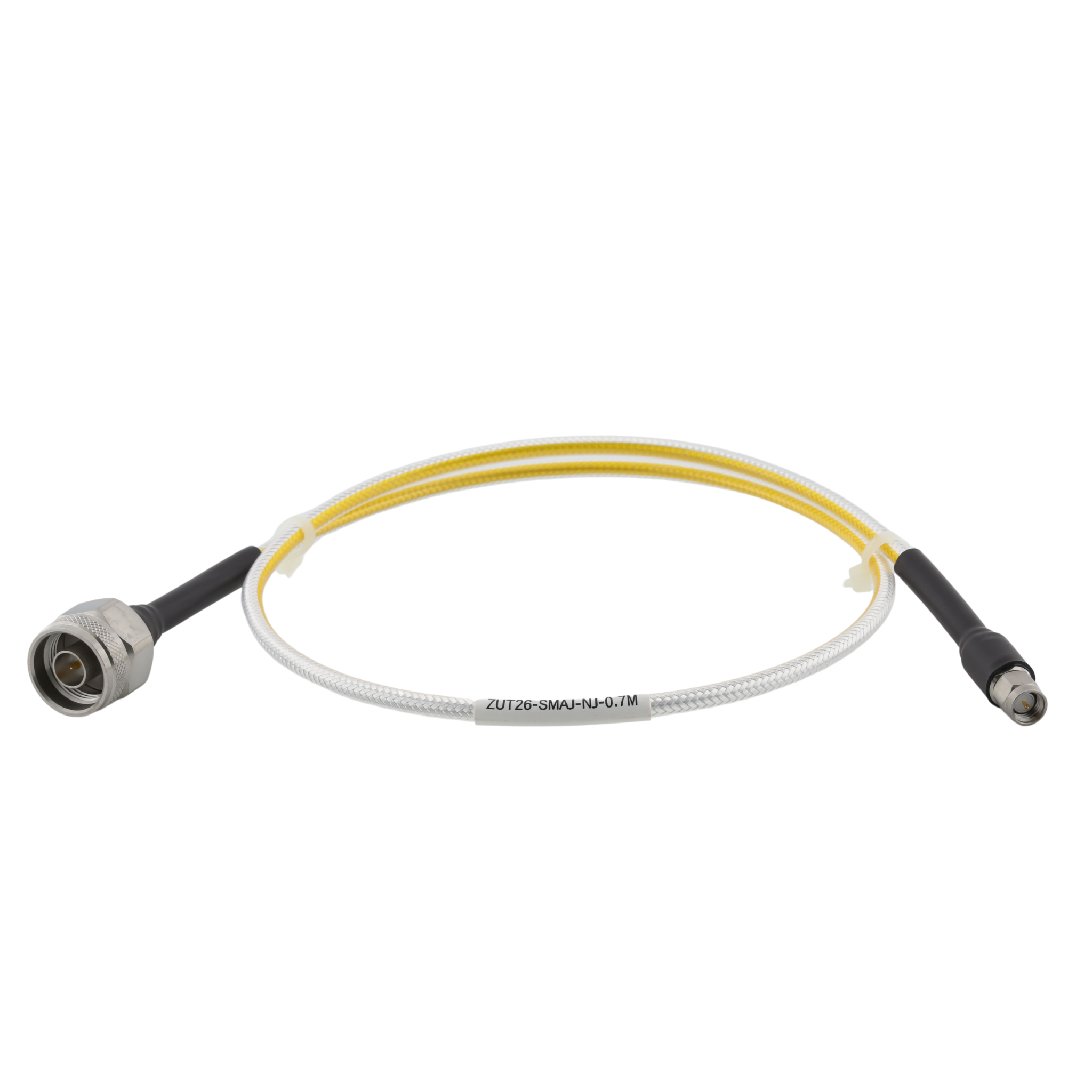

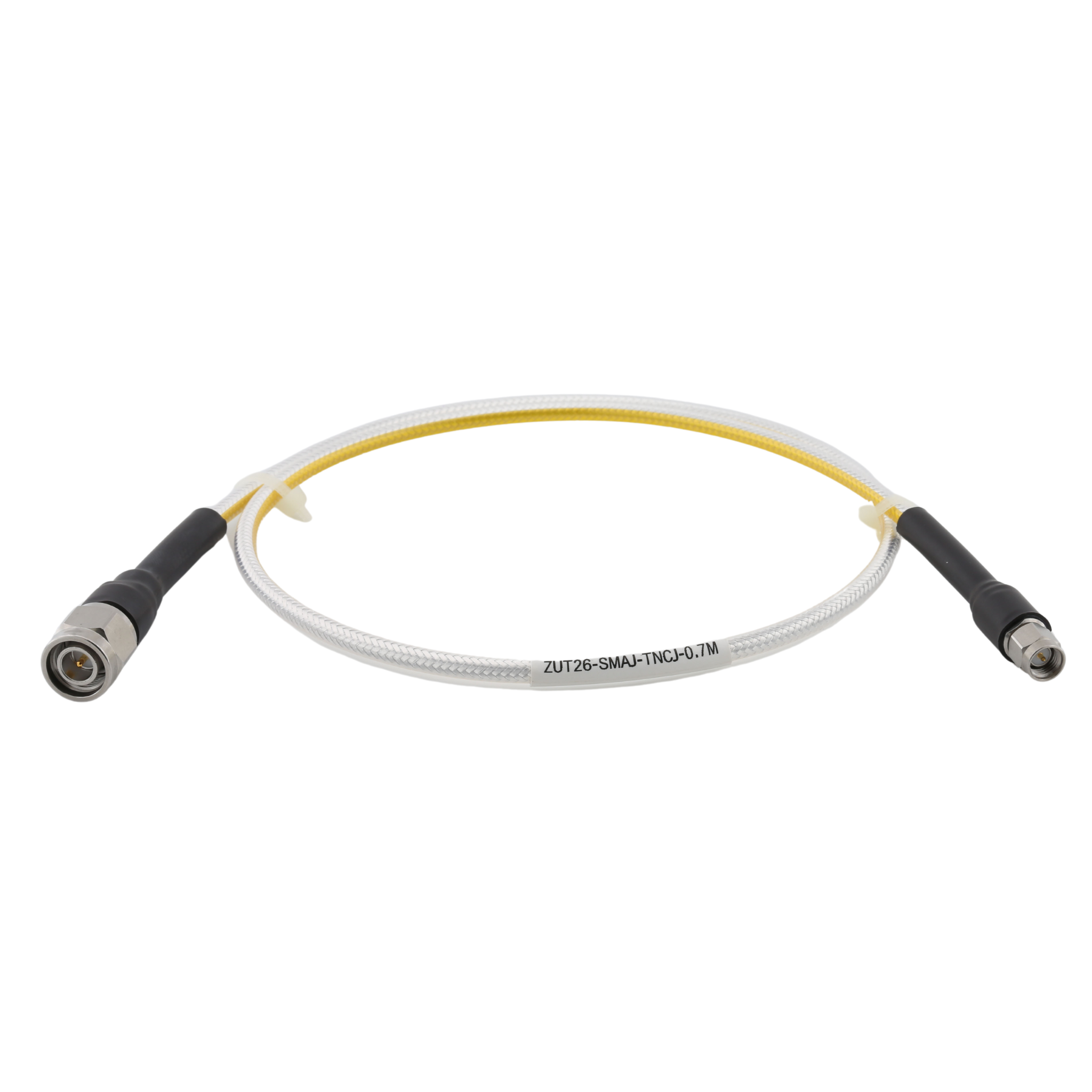

The TestLink Cable Assembly Family
Series | Frequency | Connector |
ZUT06 | 6 GHz | SMA,N ,TNC ,BNC Connector |
ZUT26 | 26.5 GHz | 3.5 mm, SMA, N, TNC Connector |
ZUT26P | 26.5 GHz Armour Cable | 3.5 mm, SMA, N, TNC Connector |
ZUT40 | 40 GHz | 2.40 mm, 2.92 mm Connector |
ZUT40P | 40 GHz Armour Cable | 2.40 mm, 2.92 mm Connector |
ZUT50 | 50 GHz | 2.40 mm, 2.92 mm Connector |
ZUT50P | 50 GHz Armour Cable | 2.40 mm, 2.92 mm Connector |
ZUT67 | 67 GHz | 1.85 mm Connector |
ZUT67P | 67 GHz Armour Cable | 1.85 mm Connector |
ZUT110 | 110 GHz | 1.0 mm Connector |
ZUT110P | 110 GHz Armour Cable | 1.0 mm Connector |
Applications:
•Laboratory test and measurement
•Production line testing
•Field test and measurement
Key Features:
•High stability
•100% tested for reliability
•Superior electrical performance
•Precision connectors
•Extended mating cycles
•Heat-resistant and flame-retardant design
•Armoured jacket available

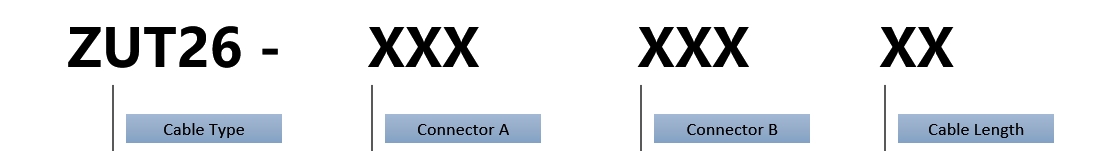

Ordering Guide
Connector Code | Description |
3.5J | 3.5 mm male |
3.5K | 3.5 mm female |
SMAJ | SMA male |
SMAK | SMA female |
NJ | N male |
NK | N female |
TNCJ | TNC male |
TNCK | TNC female |
Connector Code | Description |
SMAJW | 3.5 mm male |
NJW | 3.5 mm female |
TNCAJ | TNCA male |
TNCAK | TNCA female |
|
|
|
|
|
|
|
|

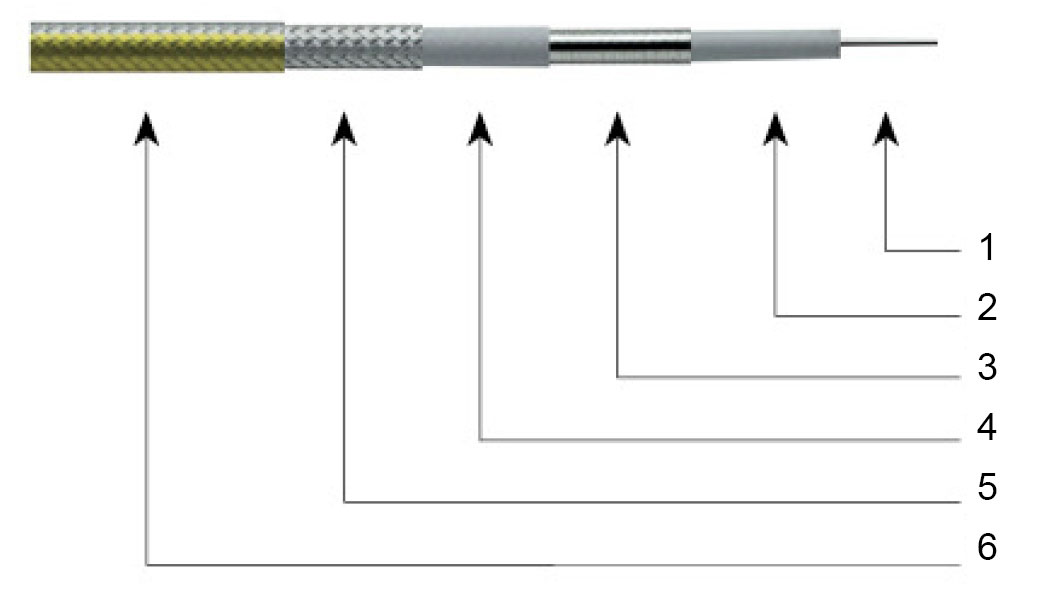

Cable Construction
Cable Part No | ZUT26 |
Cable Construction |
No |
| Material & Surface Finish |
1 | Conduct: | Silver plated cooper wire |
2 | Insulator: | LD-PTFE |
3 | Inner Braiding: | Silver plated cooper ribbon |
4 | Interlayer | LD-PTFE |
5 | Outer Braiding: | Silver plated cooper braiding |
6 | Jacket Jacket: | PUR |
Mechanical & Electrical Parameter
Mechanical Characteristic |
Dimension | mm | Inch |
Conduct | 1.02 | 0.040 |
Insulator | 3.07 | 0.121 |
Inner Braiding | 3.27 | 0.129 |
Interlayer | 3.47 | 0.137 |
Outer Braiding | 3.8 | 0.15 |
Jacket | 5.2 | 0.205 |
Weight | 0.065kg/m |
Minimum Bending Radius | (Dynamic 52.0mm),(Static 25.0mm) |
Cycle | > 5000 |
Temperature Range | -55℃~ +85℃ |
Electrical Characteristic |
| 6GHz | 18GHz | 26.5GHz |
Maximum VSWR | 3.5mm 1.15:1 | 1.20:1 | 1.25:1 |
| SMA 1.15:1 | 1.25:1 | 1.30:1 |
| N/TNC 1.15:1 | 1.25/1.30:1 |
|
Impedance | 50Ω |
Velocity Propagation | 76% |
Shielding Efficiency | > 90 dB |
Amplitude Stability | < ±0.03dB⑥26.5GHz |
Phase Stability | < ±2.7° @26.5GHz |
Attenuation(25℃) |
Frequency(MHz) | dB/100ft | dB/100m |
1000 | 10.7 | 35 |
3000 | 20.7 | 68 |
6000 | 28.7 | 94 |
10000 | 42.4 | 139 |
12000 | 45.1 | 148 |
18000 | 53.6 | 176 |
26500 | 68.6 | 225 |
Average power (25℃,sea level, only cable) |
Frequency(GHz) | Watts |
1000 | 149 |
3000 | 85 |
6000 | 55 |
10000 | 41 |
12000 | 37 |
18000 | 29 |
26500 | 23 |
LenoRF ensures that TestLink cables deliver unmatched performance for all RF testing needs
Each cable undergoes rigorous individual testing and is delivered with a comprehensive test report.
