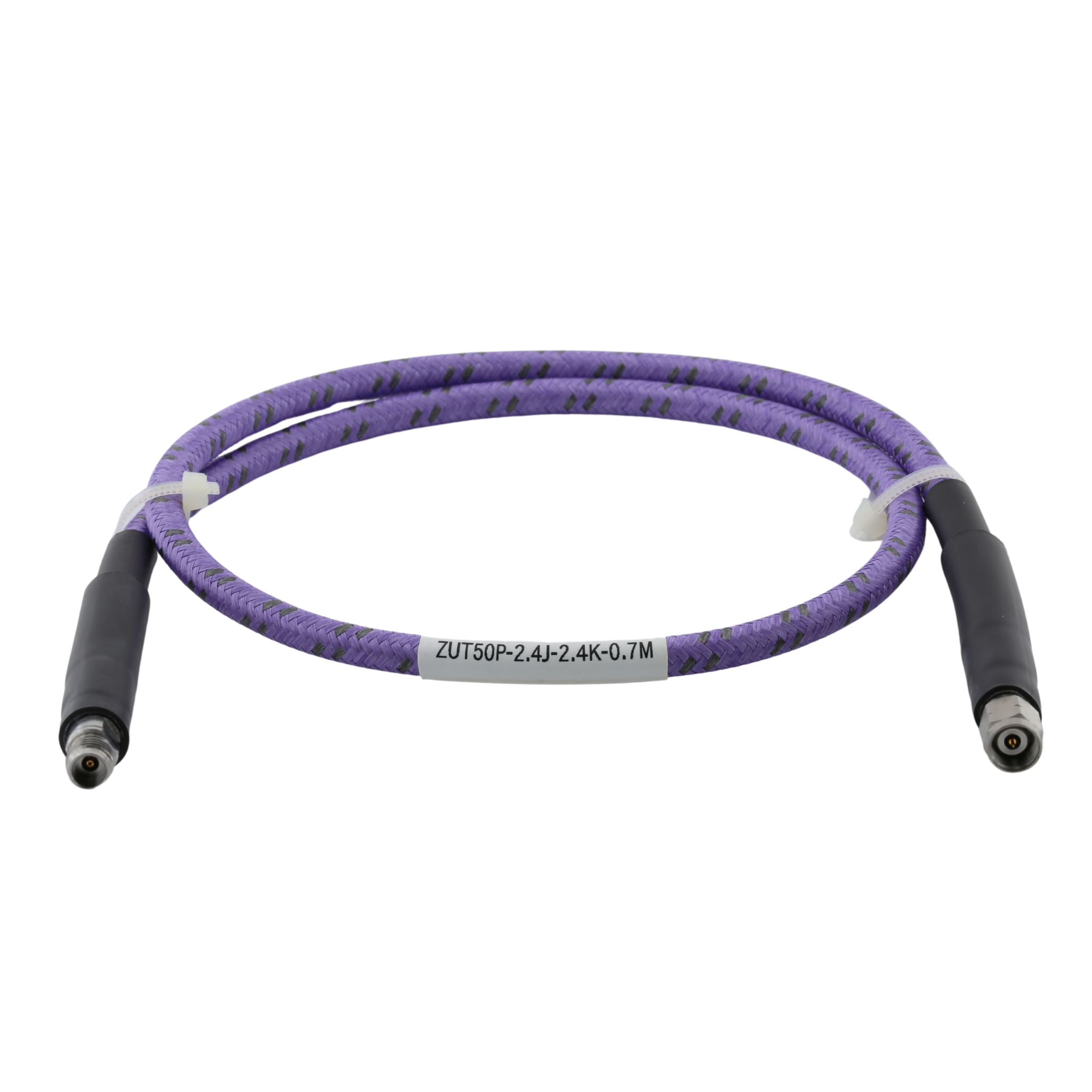

RF Test Cable Assemblies - ZUT50P Series Armour Cable

The TestLink RF Test Cable Assemblies are engineered to meet high standards in attenuation, phase stability, and durability, making them ideal for test and measurement applications. Equipped with purpose-designed connectors, they feature a specialized connection process that ensures low and stable VSWR, along with robust cable protection against mechanical stress.

The connector bodies and nuts are crafted from stainless steel, providing exceptional durability with a high number of mating cycles. These features make TestLink cables the perfect choice for laboratory or production environments, where reliable signal testing is conducted frequently.
  • ZUT50P

  • Male

  • Straight

  • Crimping

  • Crimping

Availability:
Quantity:

The TestLink RF Test Cable Assemblies are engineered to meet high standards in attenuation, phase stability, and durability, making them ideal for test and measurement applications. Equipped with purpose-designed connectors, they feature a specialized connection process that ensures low and stable VSWR, along with robust cable protection against mechanical stress.

The connector bodies and nuts are crafted from stainless steel, providing exceptional durability with a high number of mating cycles. These features make TestLink cables the perfect choice for laboratory or production environments, where reliable signal testing is conducted frequently.


The TestLink Cable Assembly Family



Series

Frequency

Connector

ZUT06

6 GHz

SMA,N ,TNC ,BNC Connector

ZUT26

26.5 GHz

3.5 mm, SMA, N, TNC Connector

ZUT26P

26.5 GHz Armour   Cable

3.5 mm, SMA, N, TNC Connector

ZUT40

40 GHz

2.40 mm, 2.92 mm Connector

ZUT40P

40 GHz Armour   Cable

2.40 mm, 2.92 mm Connector

ZUT50

50 GHz

2.40 mm, 2.92 mm Connector

ZUT50P

50 GHz Armour   Cable

2.40 mm, 2.92 mm Connector

ZUT67

67 GHz

1.85 mm Connector

ZUT67P

67 GHz Armour   Cable

1.85 mm Connector

ZUT110

110 GHz

1.0 mm Connector

ZUT110P 110 GHz Armour   Cable 1.0 mm Connector



application-2Applications:

•Laboratory test and measurement

•Production line testing

•Field test and measurement



features2Key Features:

•High stability

•100% tested for reliability

•Superior electrical performance

•Precision connectors

•Extended mating cycles

•Heat-resistant and flame-retardant design

•Armoured jacket available




Ordering Guide

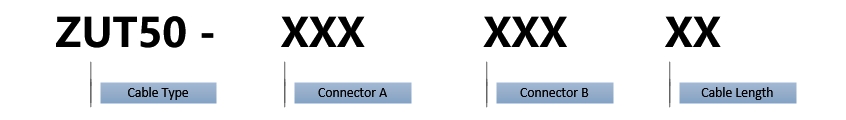

Ordering guide-name system ZUT50


Connector Code

Description

2.92J

2.92 mm male

2.92K

2.92 mm female

2.4J

2.4mm male

2.4K

2.4 mm female


cable structure Cable Construction



zt26p

Part   No

ZUT50P

Cable   Construction

Item

Material

1

Conduct:   Silver Plated Copper Wire

2

Insulator:   LD-PTFE

3

Inner   Braiding: Silver Plated Copper Ribbon

4

Interlayer:   LD-PTFE

5

Outer   Braiding: Silver Plated Copper Wire

6

Jacket:   FEP

7

Inner   Armour: Spring

8

Strength   Braiding: TIN Plated Copper Wire

9

Prevent   Distortion: PTFE Ribbon

10

Outer   Jacket: PTFE Fiber (Purple + Black)


Physical   Characteristic

Jacket

7.60   Mm, 0.299 Inch

Cycles

>   5000

Weight

0.120   Kg/M

Temperature

-55℃ - +125℃

Minimum Bending Radius

Dynamic 76.0 Mm, Static 38.0. Mm

compressive   strength

180N/25 mm


CABLE AND JUMPERMechanical & Electrical Parameter



Mechanical   Characteristic

Dimension

mm

Inch

Conduct

0.72

0.028

Insulator

2.21

0.087

Inner   Braiding

2.38

0.094

Interlayer

2.68

0.106

Outer   Braiding

3.14

0.124

Jacket

3.6

0.142

Weight

0.031kg/m

Minimum   Bending Radius

(Dynamic   36.0mm),(Static 18mm)

Cycle

>   5000

Temperature   Range

-55℃   - +165℃

Electrical   Characteristic


Connector

18GHz

26.5GHz

40GHz

50GHz

Maximum   VSWR

2.92mm

1.20:1

1.25:1

1.25:1

--


2.4mm

1.20:1

1.25:1

1.25:1

1.30:1

Impedance

50 Ω

Velocity   Propagation

76%

Shielding   Efficiency

>   90 dB

Amplitude   Stability

<   ±0.05dB@50GHz

Phase   Stability

<   ±5°@50GHz



Attenuation(25℃)

Frequency(MHz)

dB/100ft

dB/100m

1000

14.66

48.1

3000

25.57

83.9

6000

36.39

119.4

12400

52.85

173.4

18000

64.07

210.2

26500

78.36

257.1

40000

97.29

319.2

50000

109.48

359.2

Average   power (25℃,sea level,only   cable)

Frequency(GHz)

Watts

1000

506

3000

290

6000

204

12400

140

18000

116

26500

95

40000

76

50000

68




LenoRF ensures that TestLink cables deliver unmatched performance for all RF testing needs


Each cable undergoes rigorous individual testing and is delivered with a comprehensive test report.
