The TestLink RF Test Cable Assemblies are engineered to meet high standards in attenuation, phase stability, and durability, making them ideal for test and measurement applications. Equipped with purpose-designed connectors, they feature a specialized connection process that ensures low and stable VSWR, along with robust cable protection against mechanical stress.
The connector bodies and nuts are crafted from stainless steel, providing exceptional durability with a high number of mating cycles. These features make TestLink cables the perfect choice for laboratory or production environments, where reliable signal testing is conducted frequently.

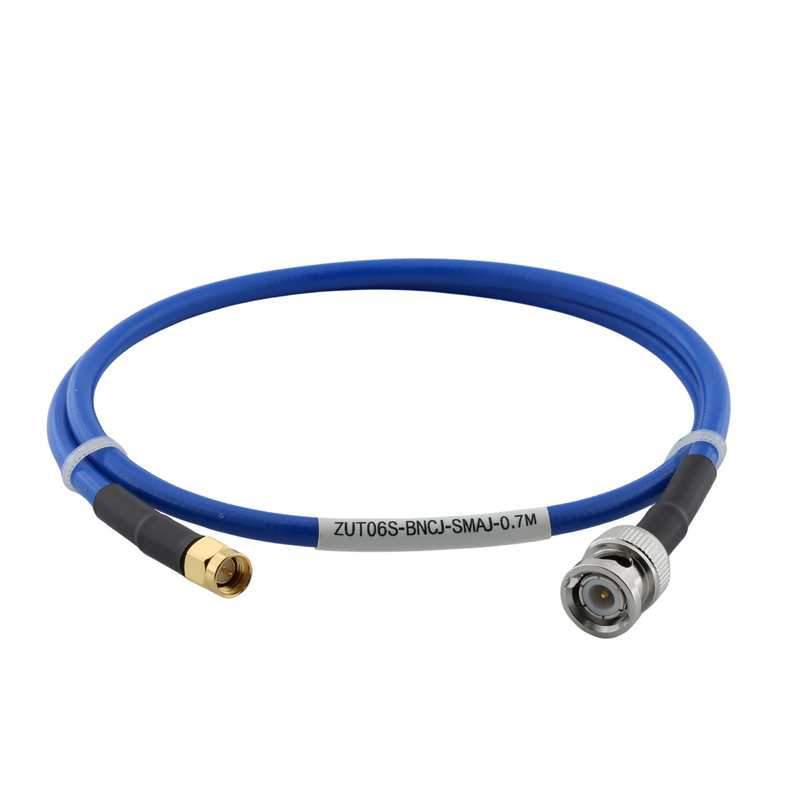

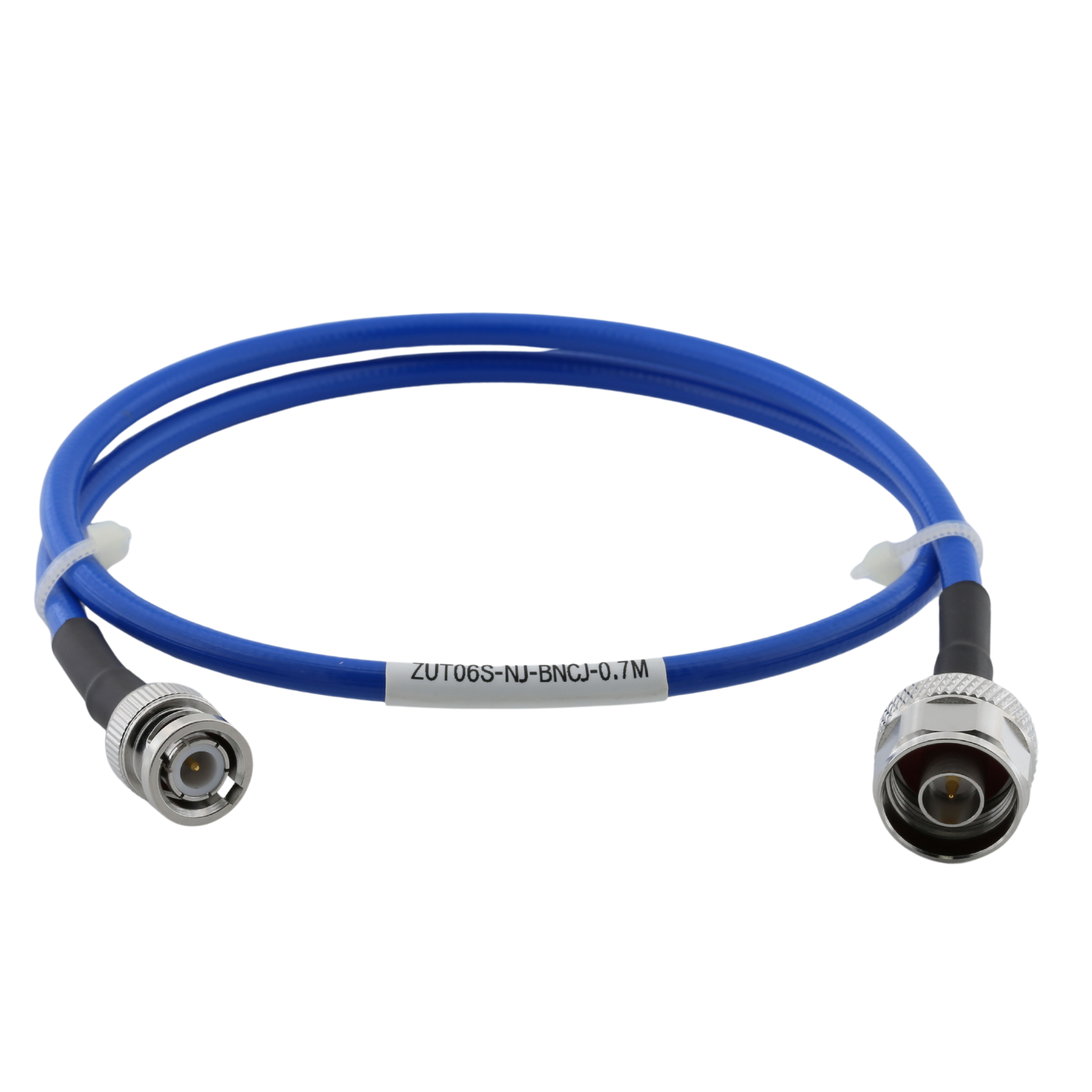

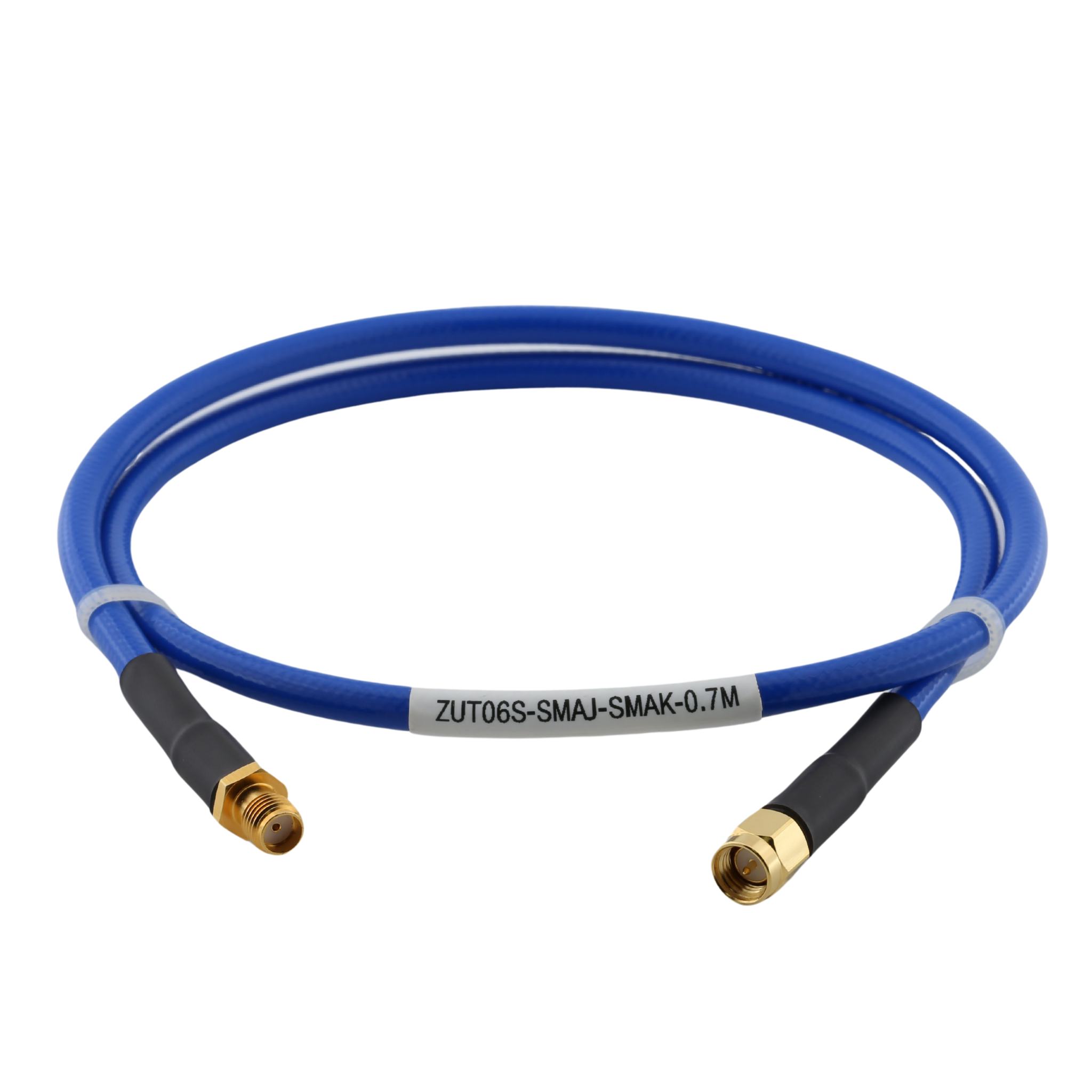

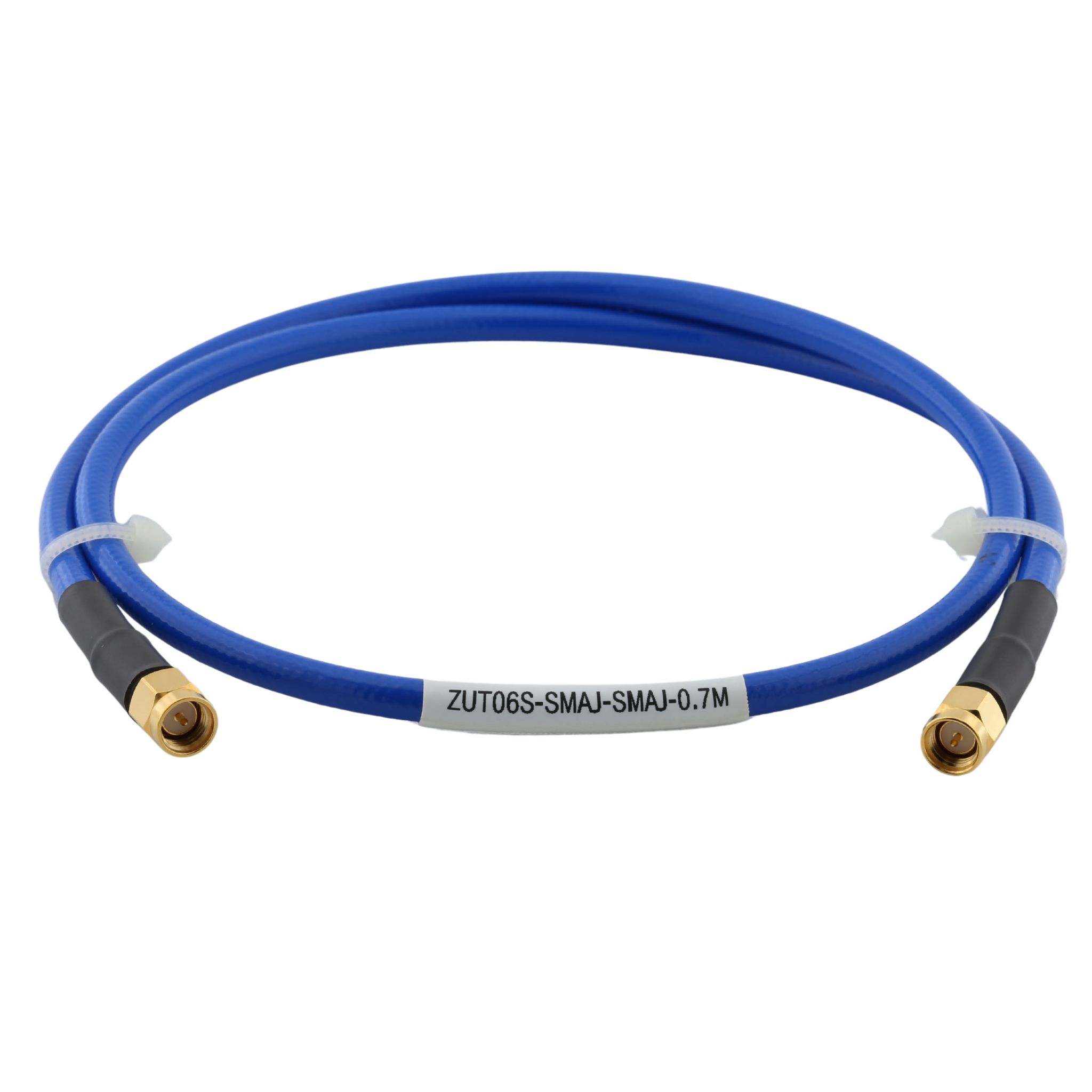

The TestLink Cable Assembly Family
Series | Frequency | Connector |
ZUT06 | 6 GHz | SMA,N ,TNC ,BNC Connector |
ZUT26 | 26.5 GHz | 3.5 mm, SMA, N, TNC Connector |
ZUT26P | 26.5 GHz Armour Cable | 3.5 mm, SMA, N, TNC Connector |
ZUT40 | 40 GHz | 2.40 mm, 2.92 mm Connector |
ZUT40P | 40 GHz Armour Cable | 2.40 mm, 2.92 mm Connector |
ZUT50 | 50 GHz | 2.40 mm, 2.92 mm Connector |
ZUT50P | 50 GHz Armour Cable | 2.40 mm, 2.92 mm Connector |
ZUT67 | 67 GHz | 1.85 mm Connector |
ZUT67P | 67 GHz Armour Cable | 1.85 mm Connector |
ZUT110 | 110 GHz | 1.0 mm Connector |
ZUT110P | 110 GHz Armour Cable | 1.0 mm Connector |
![application-2]( "application-2")
Applications:
•Laboratory test and measurement
•Production line testing
•Field test and measurement
![features2]()
Key Features:
•High stability
•100% tested for reliability
•Superior electrical performance
•Precision connectors
•Extended mating cycles
•Heat-resistant and flame-retardant design
•Armoured jacket available

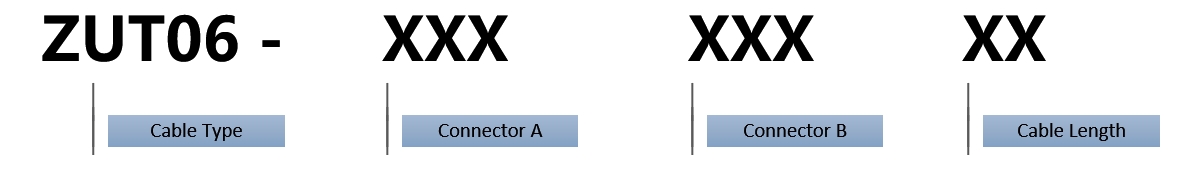

Ordering Guide
![Ordering guide-name system ZUT06]()
Connector Code | Description |
3.5J | 3.5 mm male |
3.5K | 3.5 mm female |
SMAJ | SMA male |
SMAK | SMA female |
NJ | N male |
NK | N female |
TNCJ | TNC male |
TNCK | TNC female |
Connector Code | Description |
SMAJW | 3.5 mm male |
NJW | 3.5 mm female |
BNCJ | BNC male |

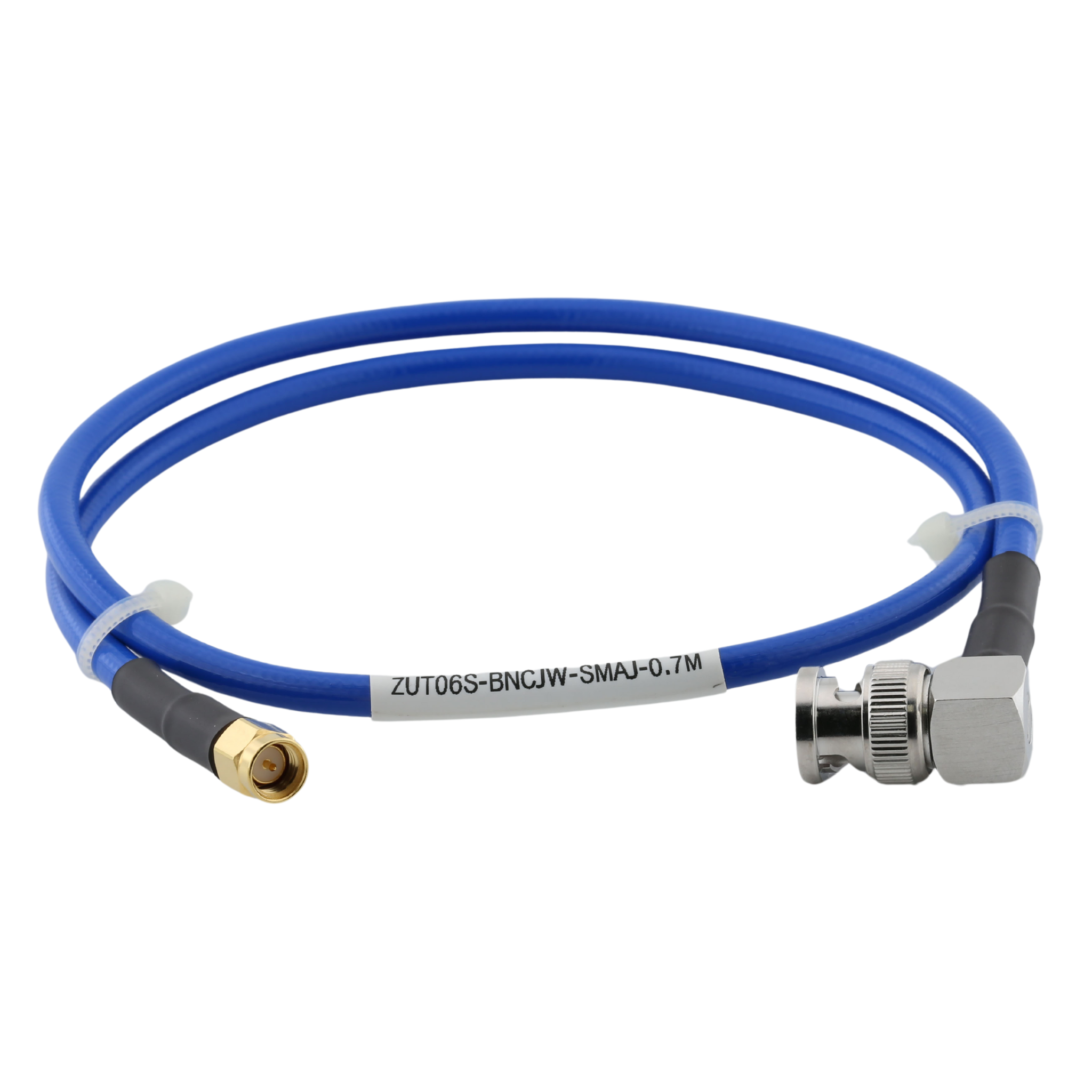

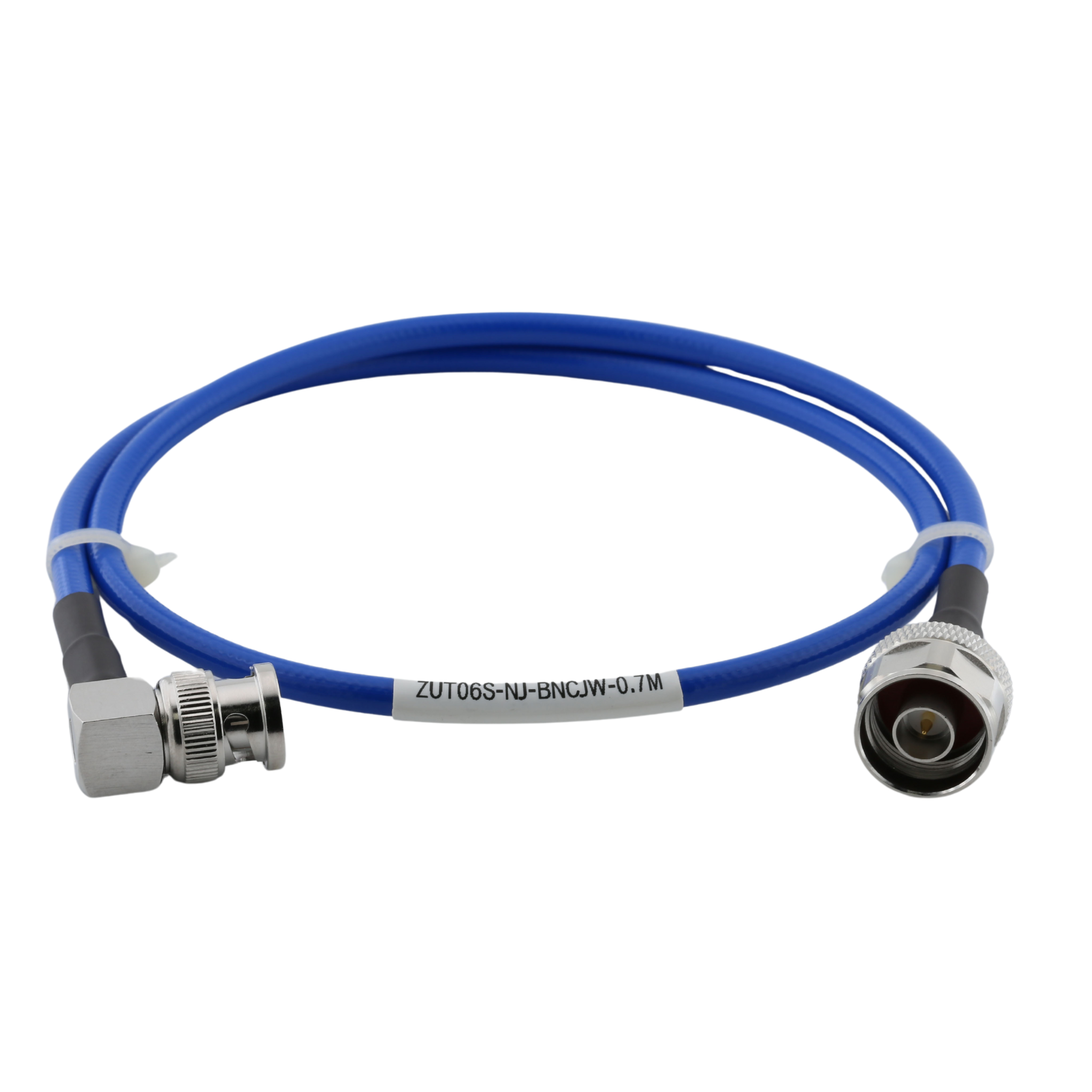

BNCJW | BNC male right angle |
|
|
|
|
|
|
|
|
![cable structure]()

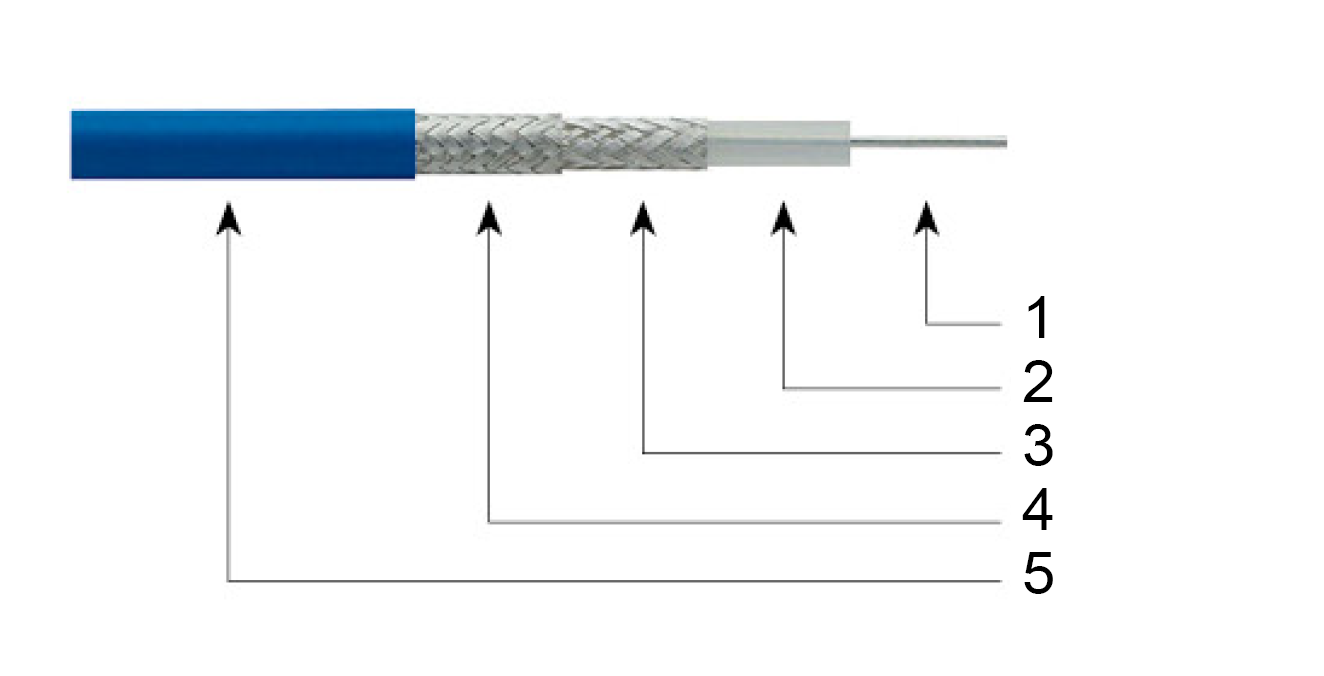

Cable Construction
![zt06s cable assembly]()
Part No | ZUT06S |
Cable Construction |
No |
| Material & Surface Finish |
1 | Conduct: | Silver plated cooper wire |
2 | Insulator: | PTFE |
3 | Inner Braiding: | Silver plated cooper braiding |
4 | Outer Braiding: | Silver plated cooper braiding |
5 | Jacket Jacket: | PVC/PUR |
![CABLE AND JUMPER]()
Mechanical & Electrical Parameter
Mechanical Characteristic |
Dimension | mm | Inch |
Conduct | 0.92 | 0.036 |
Insulator | 3 | 0.118 |
Inner Braiding | 3.5 | 0.138 |
Outer Braiding | 3.95 | 0.156 |
Jacket | 5.20 | 0.205 |
Weight | 0.062kg/m |
Minimum Bending Radius(Dynamic) | 25.4mm |
Cycle | > 5000 |
Temperature Range | -45℃~ +85℃ |
Electrical Characteristic |
Maximum VSWR | Connector | 1 GHz | 3 GHz | 6 GHz |
| SMA | 1.10:1 | 1.15:1 | 1.25:1 |
| N | 1.10:1 | 1.15:1 | 1.25:1 |
| TNC | 1.15:1 | 1.15:1 | 1.25:1 |
| BNC | 1.15:1 | 1.25:1 |
|
Impedance | 50Ω |
Velocity Propagation | 70% |
Shielding Efficiency | > 80 dB |
Amplitude Stability | < ±0.03dB@6GHz |
Phase Stability | ±1.5° @6GHz |
Attenuation(25℃) |
Frequency(MHz) | dB/100 ft | dB/100m |
100 | 3.96 | 13 |
400 | 7.92 | 26 |
1000 | 12.8 | 42 |
3000 | 23.77 | 78 |
5000 | 32 | 105 |
6000 | 39.01 | 128 |
Average power (25℃,sea level, only cable) |
Frequency(MHz) | Watts |
100 | 980 |
400 | 490 |
1000 | 300 |
3000 | 180 |
5000 | 140 |
6000 | 120 |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What’s the lifespan of an RF connector?
Connector durability is rated in mating cycles: General-purpose connectors (BNC, SMA): 500 cycles. Precision connectors (2.92 mm, 2.4 mm): 500 cycles or less. Rugged telecom connectors (N, 7/16 DIN): 500 cycles.
Can RF connectors be reused?
Yes, but performance degrades with wear. Precision connectors (used in test equipment) should be handled carefully—damage to threads or pins increases VSWR and insertion loss.
What’s the difference between threaded, bayonet, and push-on RF connectors?
Threaded (SMA, N, TNC): Secure, vibration-resistant. Bayonet (BNC): Quick connect/disconnect. Push-on (MCX, SMP): Ultra-fast, compact, used in high-density modules.
Are RF connectors interchangeable between brands?
Yes, if they follow the same standard (e.g., SMA-to-SMA). However, tolerances, plating, and dielectric quality vary — mixing low-quality and precision connectors can damage equipment.
LenoRF ensures that TestLink cables deliver unmatched performance for all RF testing needs
Each cable undergoes rigorous individual testing and is delivered with a comprehensive test report.
