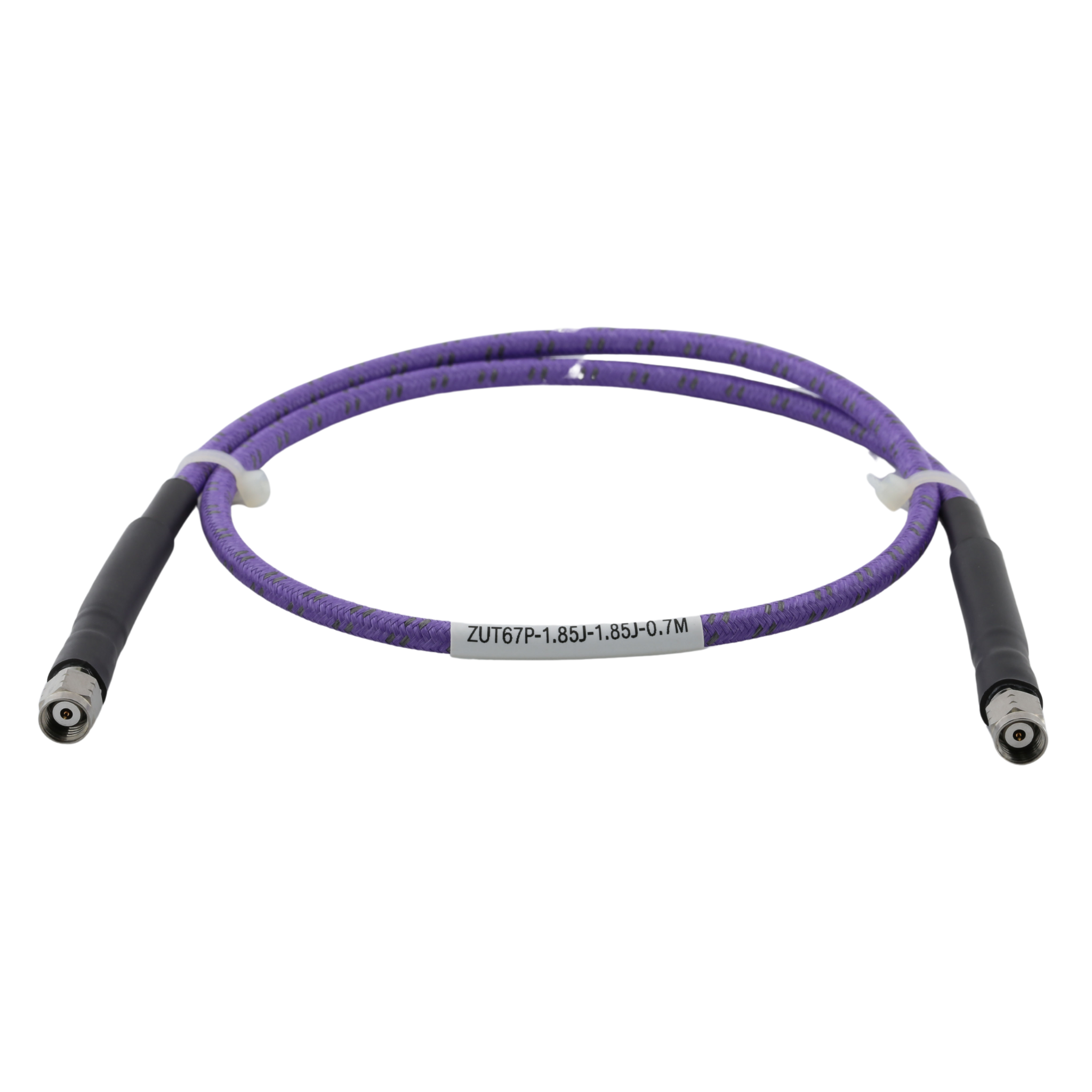

RF Test Cable Assemblies - ZUT67P Series Armour Cable

The TestLink RF Test Cable Assemblies are engineered to meet high standards in attenuation, phase stability, and durability, making them ideal for test and measurement applications. Equipped with purpose-designed connectors, they feature a specialized connection process that ensures low and stable VSWR, along with robust cable protection against mechanical stress.

The connector bodies and nuts are crafted from stainless steel, providing exceptional durability with a high number of mating cycles. These features make TestLink cables the perfect choice for laboratory or production environments, where reliable signal testing is conducted frequently.
  • ZUT67P

  • Male

  • Straight

  • Crimping

  • Crimping

Availability:
Quantity:

The TestLink RF Test Cable Assemblies are engineered to meet high standards in attenuation, phase stability, and durability, making them ideal for test and measurement applications. Equipped with purpose-designed connectors, they feature a specialized connection process that ensures low and stable VSWR, along with robust cable protection against mechanical stress.

The connector bodies and nuts are crafted from stainless steel, providing exceptional durability with a high number of mating cycles. These features make TestLink cables the perfect choice for laboratory or production environments, where reliable signal testing is conducted frequently.


The TestLink Cable Assembly Family



Series

Frequency

Connector

ZUT06

6 GHz

SMA,N ,TNC ,BNC Connector

ZUT26

26.5 GHz

3.5 mm, SMA, N, TNC Connector

ZUT26P

26.5 GHz Armour   Cable

3.5 mm, SMA, N, TNC Connector

ZUT40

40 GHz

2.40 mm, 2.92 mm Connector

ZUT40P

40 GHz Armour   Cable

2.40 mm, 2.92 mm Connector

ZUT50

50 GHz

2.40 mm, 2.92 mm Connector

ZUT50P

50 GHz Armour   Cable

2.40 mm, 2.92 mm Connector

ZUT67

67 GHz

1.85 mm Connector

ZUT67P

67 GHz Armour   Cable

1.85 mm Connector

ZUT110

110 GHz

1.0 mm Connector

ZUT110P 110 GHz Armour   Cable 1.0 mm Connector



application-2Applications:

•Laboratory test and measurement

•Production line testing

•Field test and measurement



features2Key Features:

•High stability

•100% tested for reliability

•Superior electrical performance

•Precision connectors

•Extended mating cycles

•Heat-resistant and flame-retardant design

•Armoured jacket available

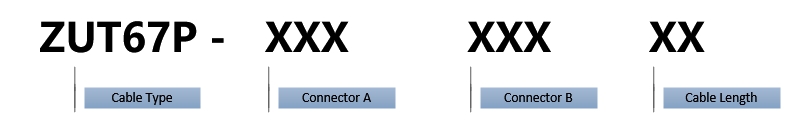

Ordering Guide


Ordering guide-name system zut67P

Connector Code

Description

1.85J

1.85 mm male

1.85K

1.85 mm female

cable structure Cable Construction



zt26p

Part   No

ZUT67P

Cable   Construction

Item

Material

1

Conduct:   Silver Plated Copper Wire

2

Insulator:   LD-PTFE

3

Inner   Braiding: Silver Plated Copper Ribbon

4

Interlayer:   LD-PTFE

5

Outer   Braiding: Silver Plated Copper Wire

6

Jacket:   FEP

7

Inner   Armour: Spring

8

Strength   Braiding: TIN Plated Copper Wire

9

Prevent   Distortion: PTFE Ribbon

10

Outer   Jacket: PTFE Fiber (Purple + Black)


Physical   Characteristic

Jacket

7.60   Mm, 0.299 Inch

Cycles

>   5000

Weight

0.120   Kg/M

Temperature

-55℃ - +125℃

Minimum Bending Radius

Dynamic 76.0 Mm, Static 38.0. Mm

compressive   strength

180N/25 mm


CABLE AND JUMPERMechanical & Electrical Parameter




Mechanical   Characteristic

Dimension

mm

Inch

Conduct

0.51

0.020

Insulator

1.55

0.059

Inner   Braiding

1.70

0.065

Interlayer

2.00

0.079

Outer   Braiding

2.32

0.091

Jacket

2.6

0.102

Weight

0.017   kg/m

Minimum   Bending Radius

(Dynamic   26.0mm),(Static 13.0 mm)

Cycle

>   5000

Temperature   Range

-55℃   - +125℃

Electrical   Characteristic

Maximum   VSWR

Connector

18GHz

40GHz

50GHz

67GHz

1.85mm

1.20:1

1.30:1

1.40:1

1.50:1

Impedance

50 Ω

Velocity   Propagation

76%

Shielding   Efficiency

>   90 dB

Amplitude   Stability

<   ±0.08dB@67GHz

Phase   Stability

<   ± 6.7° @67GHz


Attenuation(25℃)

Frequency(MHz)

dB/100ft

dB/100m

1000

21.36

70.07

3000

34.11

112

6000

48.73

160

10000

70.09

229.94

12000

77.17

253.17

18000

95.74

314.1

26500

117.9

386.8

40000

147.62

484.31

50000

167.01

547.92

67000

196.72

645.4

Average   power (25℃,sea level,only   cable)

Frequency(GHz)

Watts

1000

169

3000

96

6000

67

10000

52

12000

42

18000

38

26500

31

40000

24

50000

22

67000

18





LenoRF ensures that TestLink cables deliver unmatched performance for all RF testing needs


Each cable undergoes rigorous individual testing and is delivered with a comprehensive test report.
