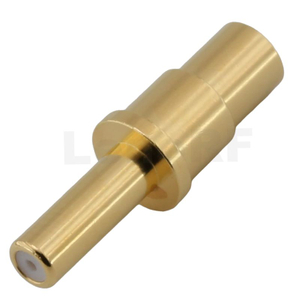

Exclusively supplied by LenoRF, the RF coaxial pin contact is a high-performance component meticulously engineered to meet the rigorous demands of high-frequency data transmission applications. As a size 12 pin contact compatible with D38999 connectors, it is specifically tailored for use with 0.085-inch coaxial cables, rendering it a versatile and reliable solution for a broad spectrum of critical systems across diverse industries.
Classified under the M39029 coax contact standard—an industry benchmark that governs reliable electrical connections in harsh and demanding environments—this component boasts a 50 Ohm impedance. This precise impedance matching minimizes signal reflections, effectively preserving signal integrity even during high-frequency operations. Complementing this, its maximum Voltage Standing Wave Ratio (VSWR) of 1.35 further optimizes transmission efficiency, while a maximum operating frequency of 3 GHz ensures it is well-equipped to handle a wide range of high-frequency communication requirements.
Crafted with premium materials to balance durability and peak performance, the RF coaxial pin contact features a gold-plated brass outer conductor and a beryllium copper inner conductor. These materials are carefully selected for their exceptional electrical conductivity, superior corrosion resistance, and extended service life, ensuring consistent performance even in challenging conditions. The contact integrates PTFE dielectric material, which delivers outstanding insulation properties and supports a dielectric withstanding voltage of 1000 Vrms—guaranteeing reliable operation even in harsh electrical environments. Additionally, it maintains a maximum insertion loss of just 0.191 dB, effectively minimizing signal degradation and ensuring stable, consistent performance over time.
Engineered for optimal signal performance, this LenoRF RF coaxial pin contact is specifically designed to reduce signal loss and crosstalk. Leveraging its precision construction, it delivers superior impedance matching and lower VSWR, further enhancing signal quality. With a reliable operating temperature range of -65°C to 125°C, it is ideally suited for rugged applications in aerospace, military, and industrial settings—where extreme environmental conditions demand uncompromising performance and durability.
The RF coaxial pin contact, exclusively supplied by LenoRF, is a high-performance component engineered to meet the rigorous demands of high-frequency data transmission applications. As a size 12 pin contact compatible with D38999 connectors, it is specifically designed for use with 0.085-inch coaxial cables, making it a versatile solution for a wide range of critical systems.
Classified as an M39029 coax contact—an industry-standard specification governing reliable electrical connections in demanding environments—this component boasts a 50 Ohm impedance, ensuring precise impedance matching to minimize signal reflections and maintain signal integrity. Its maximum Voltage Standing Wave Ratio (VSWR) of 1.35 further enhances transmission efficiency, while a maximum operating frequency of 3 GHz makes it well-suited for high-frequency communication needs.
Crafted with premium materials for durability and performance, the inserts features a gold-plated brass outer conductor and a beryllium copper inner conductor—materials selected for their excellent conductivity, corrosion resistance, and extended service life. The contact incorporates PTFE dielectric material, which delivers exceptional insulation properties and supports a dielectric withstanding voltage of 1000 Vrms, ensuring reliable operation even in harsh electrical environments. Additionally, it maintains a maximum insertion loss of just 0.191 dB, minimizing signal degradation for consistent performance.
Engineered for optimal signal performance, this RF coax contact is specifically designed to reduce signal loss and crosstalk, leveraging its precision construction to deliver superior impedance matching and lower VSWR. It operates reliably across an extreme temperature range of -65°C to 125°C, making it suitable for rugged applications in aerospace, military, and industrial settings where environmental conditions are challenging.
