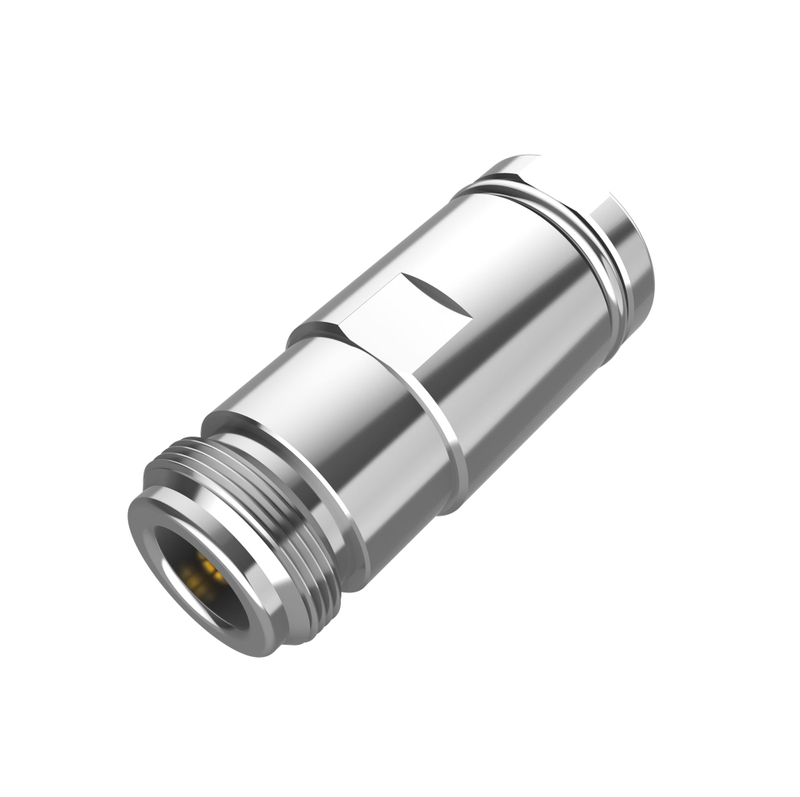

N Connector Jack Clamping Straight For 1/2" Flexible Coaxial Cable
You are here: Home » Products » RF Connector » N RF Connector » N Connector Jack Clamping Straight For 1/2" Flexible Coaxial Cable
Share to:

N Connector Jack Clamping Straight For 1/2" Flexible Coaxial Cable

N Connector Jack Clamping Straight For 1/2" Flexible Coaxial Cable
  • 20-618
  • 87-5061-246-01
  • Female
  • Straight
  • Clamping
  • Crimping
  • 1/2" Flexible Corrugated Coaxial Cable
  • 87-5061-222-01.pdf
Availability:
Quantity:
Body   PlatingTri-metal
Body MaterialBrass
Cable Type -
Contact PlatingGold
Contact MaterialBeryllium   copper
Contact TerminationCrimping
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)18
GenderJack
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Size CategoryStandard
Temperature Range-65   -165 °C
Termination StyleCrimping
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
