Description:

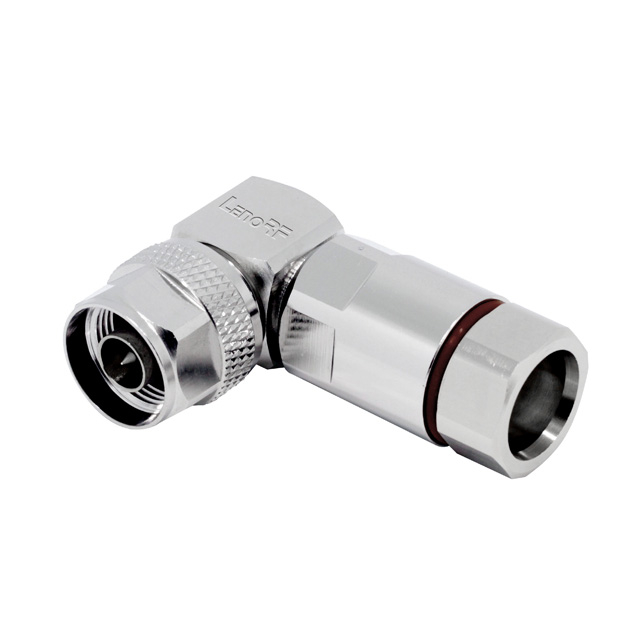

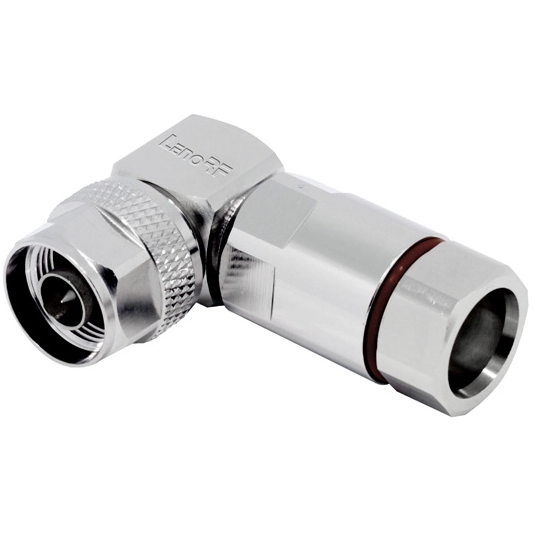

N-Type connectors are designed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance which includes models that support up to 18 GHz.
LenoRF’s N-Type connector features a threaded coupling mechanism and is fully interchangeable with N-Type connectors made to the MIL-C-39012 specification. These connectors are used in all systems where excellent RF and mechanical performance is critical.
Features and Benefits
Broad line of military, industrial and commercial grade products available
Excellent RF performance from DC to 11 GHz, and DC to 18 GHz on extended range designs
Threaded coupling mechanism ideal for vibration resistance
Accommodates a wide range of coaxial cables including low loss types
Applications
Antennas
Base Stations
Instrumentation
Satellite Systems
WLAN
Radar Systems
Broadcast
Surge Protection
Materials&Electroplating |
Conduct | Brass/ Silver Plating |
Insulator | PTFE |
Body | Brass /Ternary |
Other Parts | Brass/ Nickel Plating |
Electric Performance |
Impedance | 50 OHMS |
Frequency Range | 0-18GHz |
VSWR | ≤1.30 |
Rating Voltage | 500V |
Environmental |
|
Temperature Rating | -65°C to +165°C |
Corrosion (Salt Spray) | MIL-STD-202, Method 101, Condition B |
Vibration | MIL-STD-202, Method 204, Condition D, 20 Gs |
Shock | MIL-STD-202, Method 213, Condition I, 100 Gs |
Thermal Shock | MIL-STD-202, Method 107. Cond. B, -65°C to +125°C |
Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
FAQ
1. Sample delivery time
Regular model need 15 days, some complex connectors need 25 days
2. Sample Fee
The most of RF connector is CNC parts,don't need to make mold.
Through, each part need be tuning the CNC, usually one sample need 200 USD cost.
The fee will return after 5K bulk order
3. The Quarantee
Brass RF connector is one year, the stainless steel connector is three year.
Also, depend on the material of contact, Beryllium contact have better lifetime.
4. ROHS&REACH
Our product fully compliance with ROHS&REACH.
5.Does LENORF offer military class product
Yes. We honor to offer military product with super stable quality.
6. MOQ
Regular connector: 500PCS.
Adaptor:100PCS
Military connector:100PCS
7. Materials
The popular material is brass,stainless steel for body, PTFE,PEEK for insulator,
brass, phosphor bronze, beryllium copper for contact, as well as aluminum,titanium alloy.
Application：
Telecommunication,Military,Broadband,Industry,Medical,5G,Radar,Aerospace.
