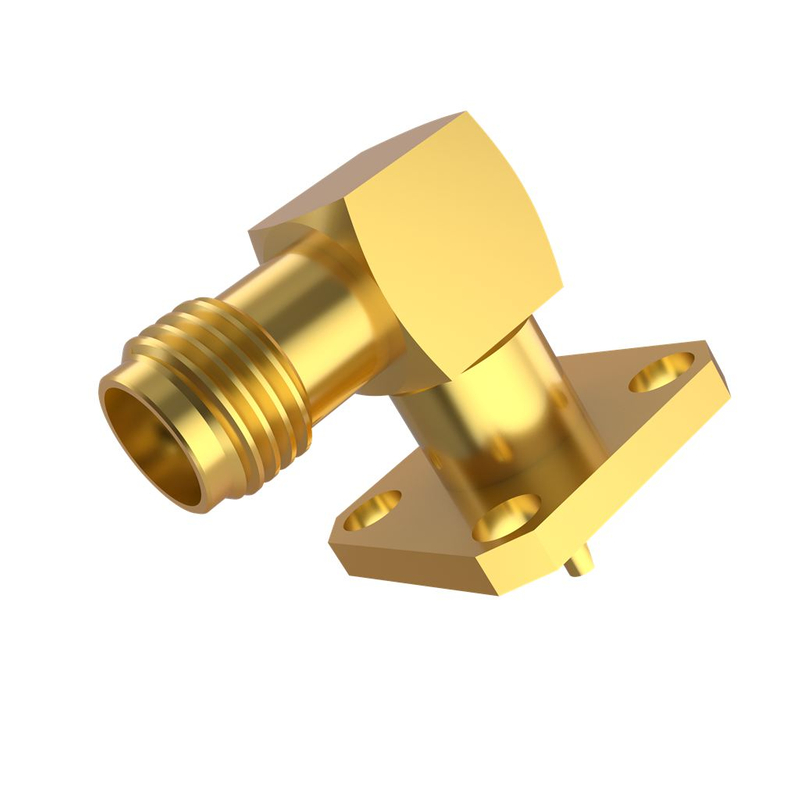

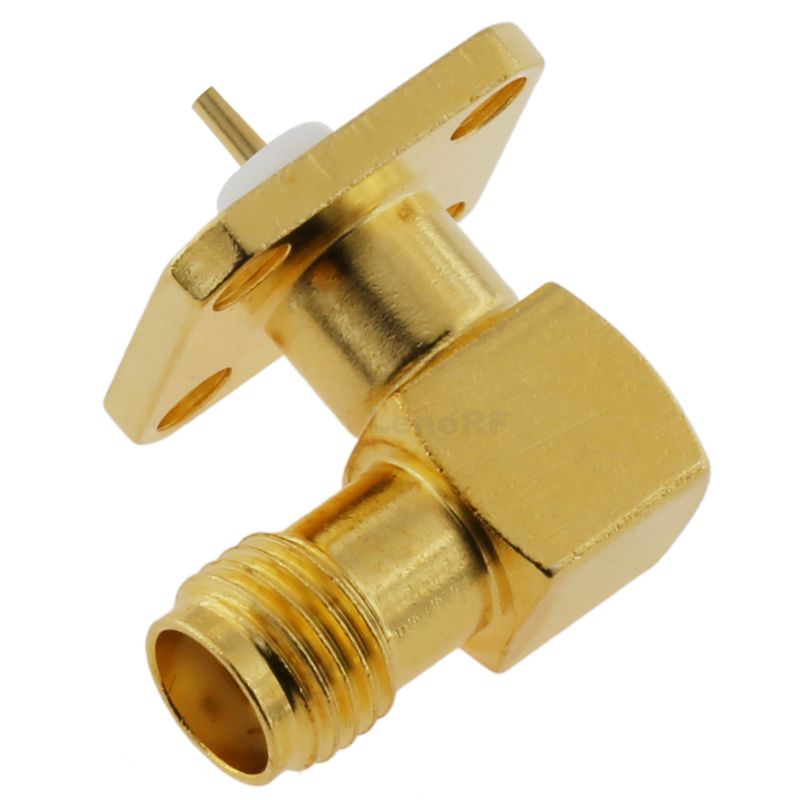

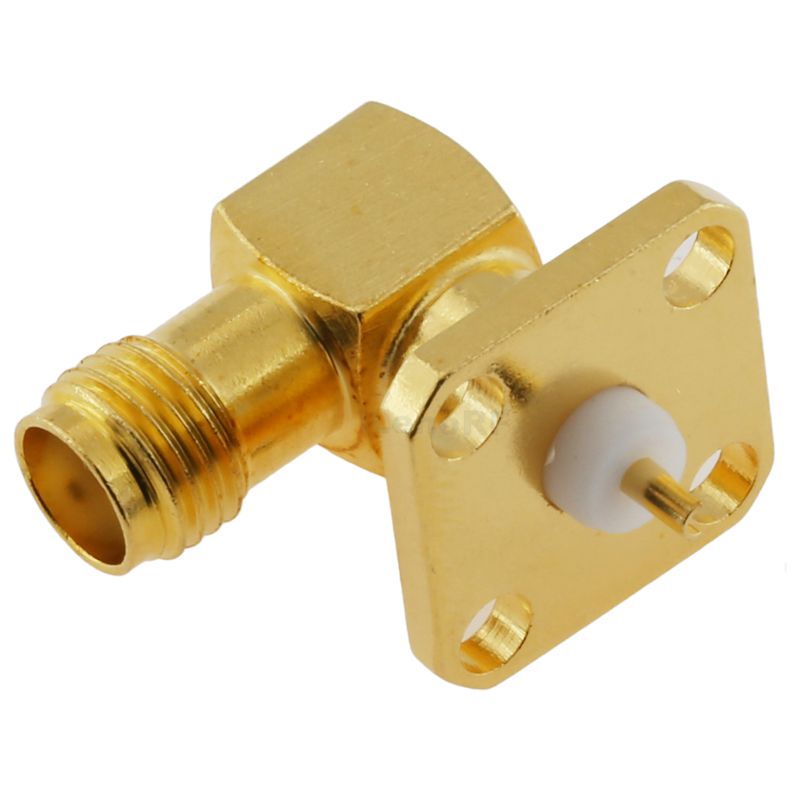

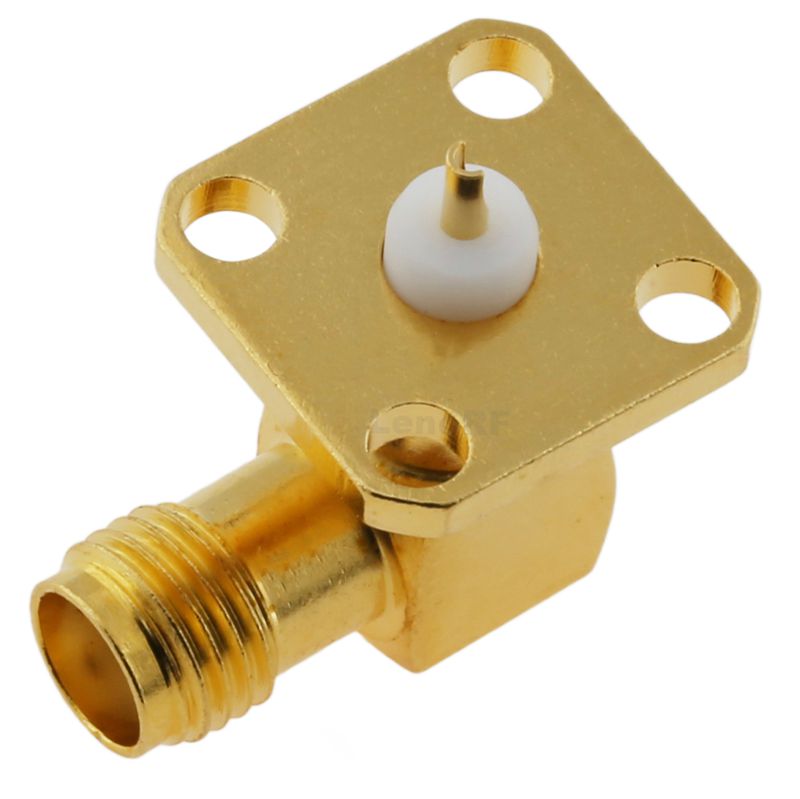

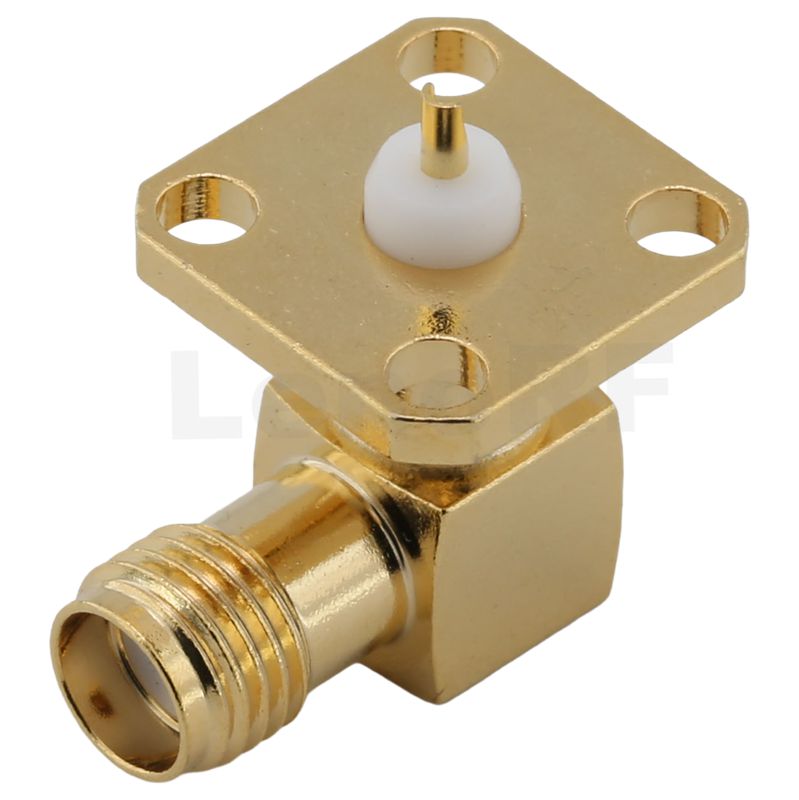

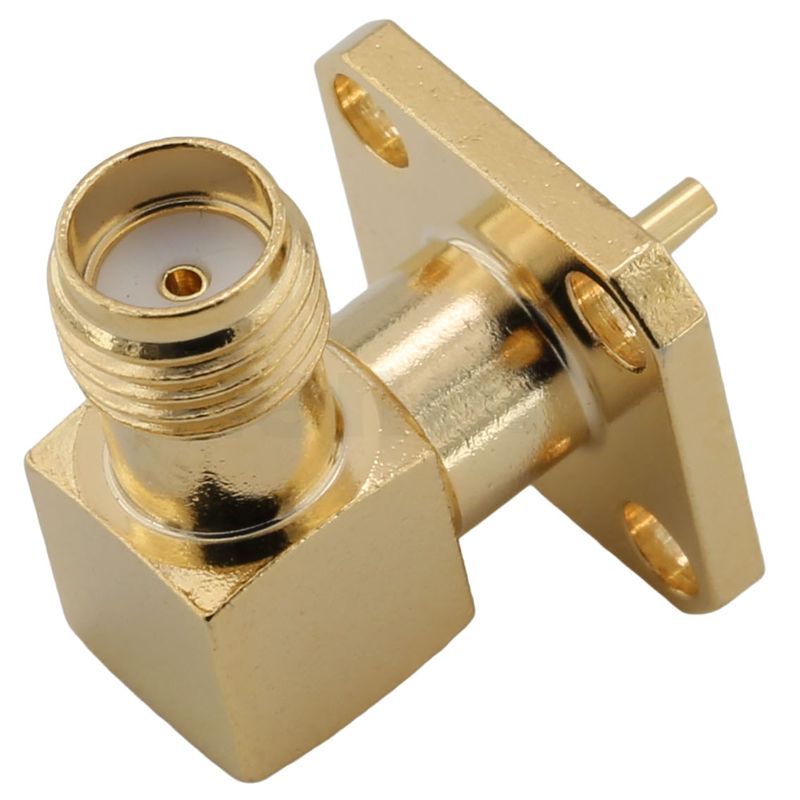

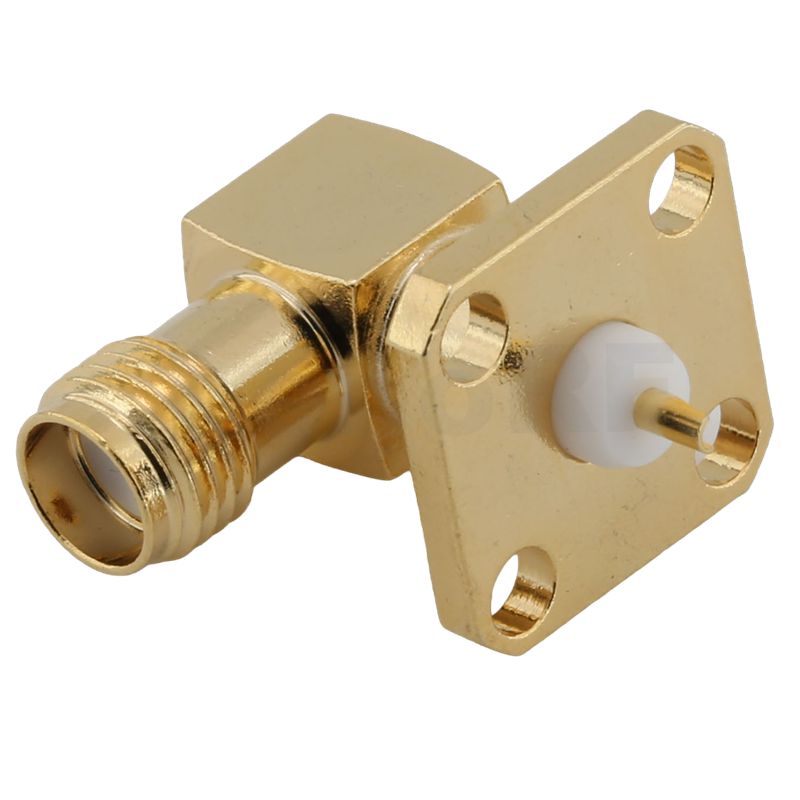

SMA Connector Jack Solder Right Angle For Microstrip

SMA coaxial connectors from LenoRF provide excellent quality and performance. Great dependability, extended service life, high mechanical stability, and outstanding electrical properties are all features of these screw-on locking connectors with a set maximum torque. The butted outer contact allows for excellent frequency ranges up to 18 GHz and 30 dB return loss. SMA connectors are used in a variety of RF applications, including telecommunications and mobile communication, as well as test and measurement tools and equipment.
  • 21-201

  • 89-5060-046-01

  • Female

  • Right angle

  • 4 Hole Flange

  • Soldering

  • N/A

  • 89-5060-046-01.pdf

  • 89-5060-046-01.stp

Availability:
Quantity:
Body   PlatingGold
Body MaterialBrass
Cable Type N/A
Contact PlatingGold
Contact MaterialBeryllium   Copper
Contact TerminationSolder
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)12.4
GenderJack
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Panel Mounting Feature4   Hole Flange
Size CategorySubminiature
Temperature Range-65   -165 °C
Termination StyleSolder
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
