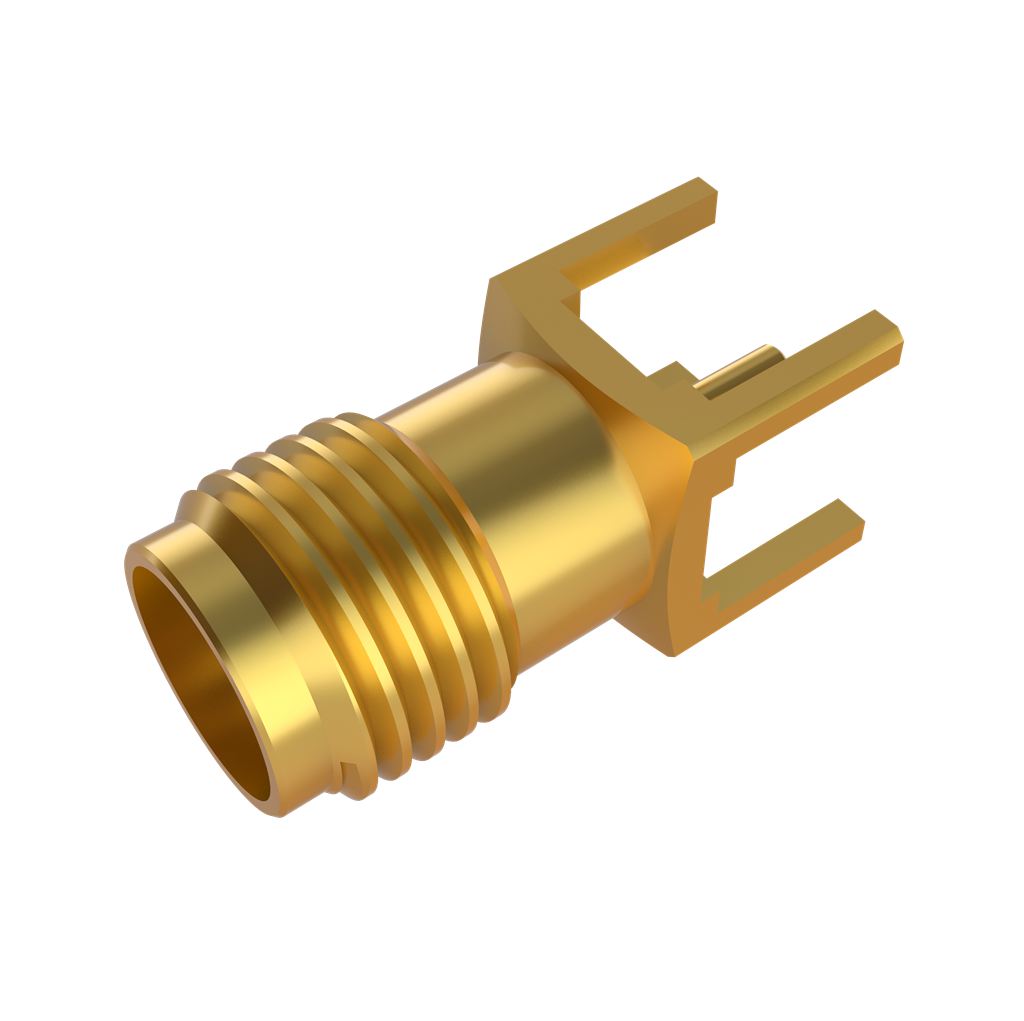

SMA Connectors Jack Straight For PCB Through Hole

LenoRF SMA coaxial connectors are high-quality and function well. These screw-on locking connectors with a fixed maximum torque provide great reliability, extended service life, excellent mechanical stability, and superb electrical qualities. The butted outer contact provides good frequency ranges up to 18 GHz with 30 dB return loss. SMA connectors are utilized in a range of RF applications, including telecommunications and mobile communication, as well as test and measurement equipment and instruments.
  • 21-029
  • 89-5061-011-03
  • Female
  • Straight
  • PCB Hole through
  • Soldering
  • N/A
  • 89-5061-011-03.pdf
  • 89-5061-011-03.stp
Body   PlatingGold
Body MaterialBrass
Cable Type N/A
Contact PlatingGold
Contact MaterialBeryllium   Copper
Contact TerminationSolder
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)12.4
Impedance (Ohms)50
Insulator MaterialPTFE
Panel Mounting FeatureBulkhead   - Rear Mount
Size CategorySubminiature
Temperature Range-65   -165 °C
Termination StylePCB   - Through Hole
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
