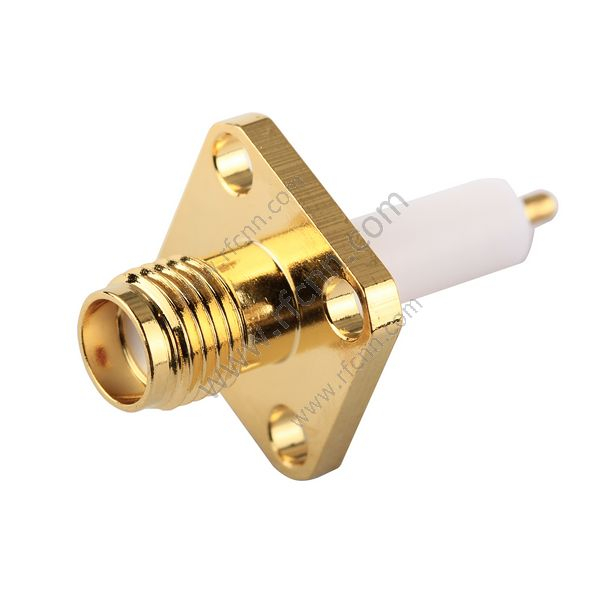

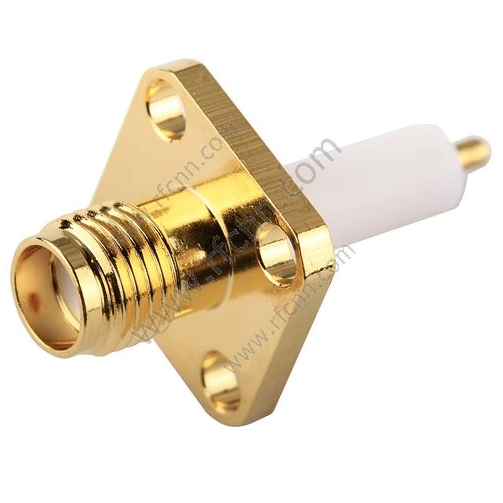

SMA Connector Female Flange Straight For Microstrip

LenoRF's SMA coaxial connectors are high-quality and reliable. For high reliability, longer service life, mechanical stability, and electrical performance, these screw-on locking connectors have a fixed maximum torque. With a frequency range of up to 18 GHz and a return loss of less than 30 dB, the butted outer contact is ideal. SMA connectors are often used in RF applications such as telecommunications and mobile communication, as well as test and measurement instruments and equipment.
  • SMA.266
  • Female
  • Straight
  • 4 Hole Flange
  • Crimping
  • Microstrip
Availability:
Quantity:
Body   PlatingGold
Body MaterialBrass
Cable TypeN/A
Contact PlatingGold
Contact MaterialBeryllium   Copper
Contact TerminationSolder
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)9
Gender Female
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Size CategorySubminiature
Temperature Range-65   -165 °C
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
