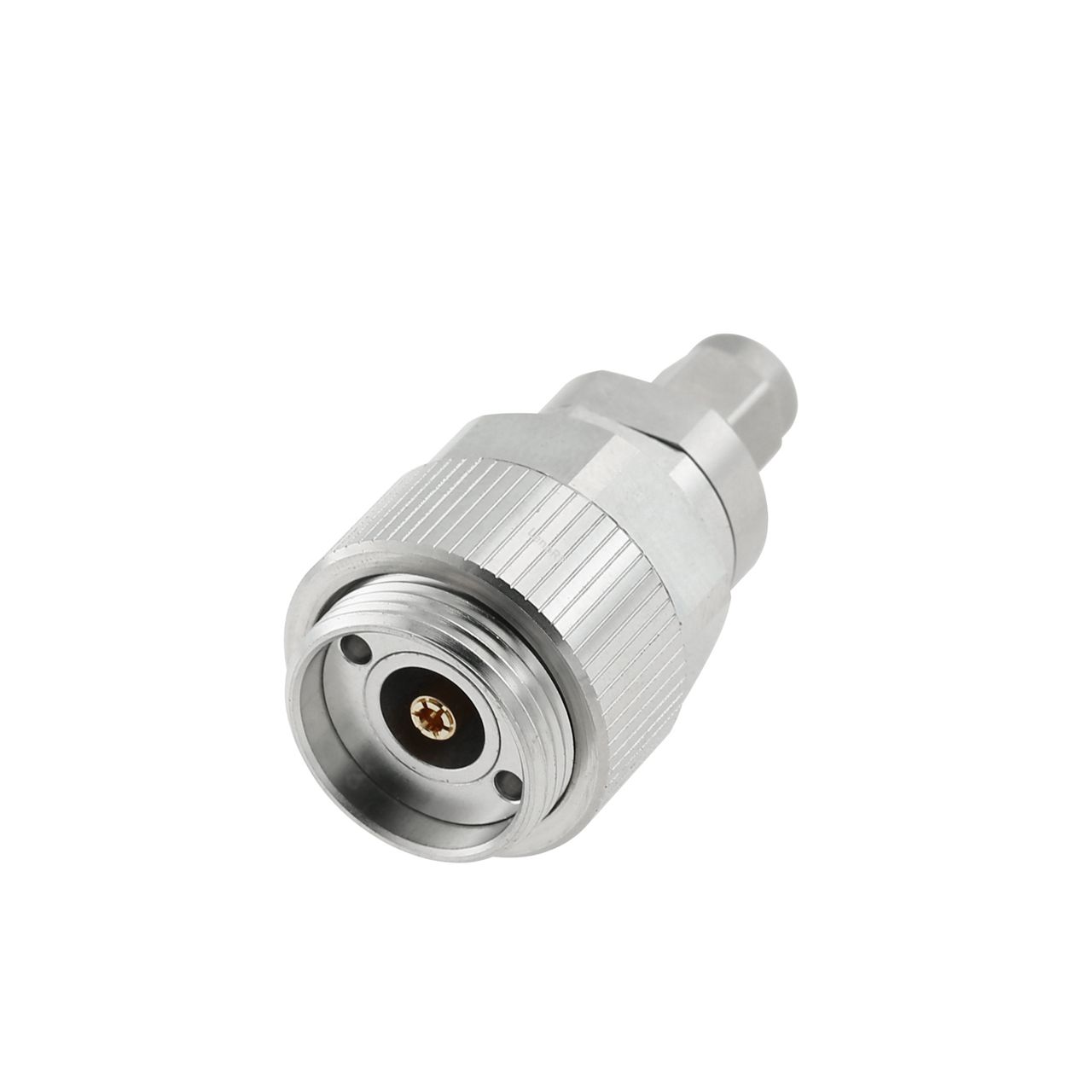

The realm of modern technology is a landscape where communication, precision, and connectivity intersect. Within this landscape, the 7 mm connector, a formidable component, stands out for its unique characteristics. With an impedance of 50 Ω, the 7 mm connector boasts a maximum operating frequency of 18.00 GHz, rendering it a vital player in high-frequency applications. Adding to its allure is the screw-on coupling mechanism, a design that aligns precision with ease of use. This mechanism allows for the seamless engagement and disengagement of connectors, reducing the risk of signal disruption.
Interface Standards: IEC 60457-2 and IEEE 287-2007
The 7 mm connector adheres to well-established interface standards, ensuring compatibility and consistency across the industry. Two prominent standards that govern its design and functionality are the IEC 60457-2 and the IEEE 287-2007. These standards provide a common language for manufacturers and engineers to communicate specifications, thereby promoting interoperability and innovation.
Genderless Hermaphroditic Design

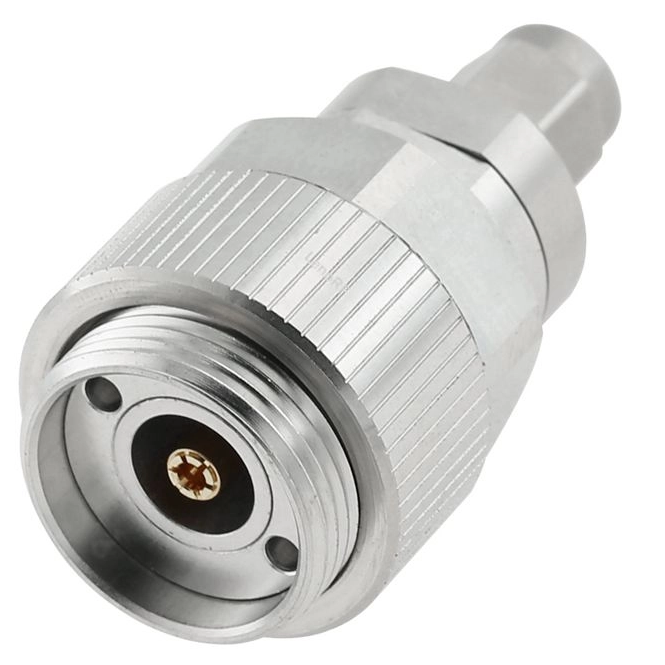

Central to the 7 mm connector's prowess is its genderless hermaphroditic design. This design approach offers a remarkable advantage over other connectors: the lowest Voltage Standing Wave Ratio (VSWR) among modern precision connectors. Affectionately known as APC-7, the 7 mm connector employs a unique interface configuration. It features a butt co-planar contact, aligning both inner and outer contacts at the same location. This alignment extends to both mechanical and electrical interfaces, streamlining the connection process and enhancing signal integrity.
Ruggedness and Repeatability
In the quest for excellence, the 7 mm connector excels not only in its technical specifications but also in its practical performance. Notably, the connector's ruggedness and impeccable repeatability stand out in laboratory environments. Even after multiple connections, the 7 mm connector maintains its reliability, a critical factor when precision and consistency are paramount.
Rotational Flexibility: Male or Female
A remarkable feature of the 7 mm connector is its rotational flexibility, a characteristic that allows it to assume the role of either male or female connector. The connector's gender can be toggled by rotating the coupling nut in either a clockwise or counterclockwise direction. A clockwise rotation extends the sleeve, transforming the connector into a female configuration. Conversely, a counterclockwise rotation retracts the sleeve, allowing the connector to function as a male counterpart. This versatility adds a layer of adaptability, catering to diverse connectivity needs.
Critical Connector Protection
While the 7 mm connector's design fosters convenience, it also demands meticulous care. The connectors interface through the meeting of two flat faces, or reference planes. Consequently, protecting these surfaces assumes utmost importance. Safeguarding the connector surfaces ensures longevity and consistent performance, serving as a reminder that even sophisticated technology requires conscientious handling.
Historical Evolution
The 7 mm connector's journey through time is a testament to its significance. Its inception traces back to the mid-1970s, with its proposal and introduction by Hewlett Packard. Subsequently, Amphenol took the reins, marketing it as the APC-7 model. This nomenclature gained substantial traction, becoming synonymous with the connector itself. The IEEE 287 Precision Connector Standards Committee and the IEC 60457-2 standard embraced the design as an open standard, further cementing its place in the world of precision connectors.
Applications and Cost Considerations
The 7 mm connector, despite its remarkable attributes, finds its usage somewhat constrained due to its elevated cost. Laboratories, known for their stringent demands for accuracy, are the natural habitat for the 7 mm series. Here, it thrives in applications that require the utmost precision. One notable application is its inclusion in precision airlines, integral to calibration and verification kits used with automatic network analyzers and reflectometers. These applications underscore its prowess in the pursuit of precision measurement.
Variants: General Precision Connector (GPC) and Laboratory Precision Connector (LPC)
As outlined by the IEEE 287 standard, the 7 mm RF connectors can assume two distinct roles: beaded General Precision Connector (GPC) or airline Laboratory Precision Connector (LPC) grade. These variants cater to different needs within the realm of precision connectors. The GPC variant brings versatility, accommodating various scenarios with its beaded design. On the other hand, the LPC version stands as a paragon of accuracy, finding its niche in laboratory settings where precision reigns supreme.
Conclusion
In the symphony of modern technology, where seamless communication and precision hold sway, the 7 mm connector emerges as a remarkable melody. Its impedance, operating frequency, coupling mechanism, and genderless hermaphroditic design all contribute to its allure. The careful adherence to interface standards and its historical evolution underscore its relevance and longevity. While its cost restricts its domain, the connector's applications within laboratories reflect its unwavering commitment to precision. As technology advances, the 7 mm connector stands as a testament to the harmonious interplay of design, functionality, and adaptability, creating a resounding impact in the world of connectors.
