21-286
89-5061-041-01
Female
Straight
4 Hole Flange
Soldering
N/A
Availability: | |
---|---|
Quantity: | |

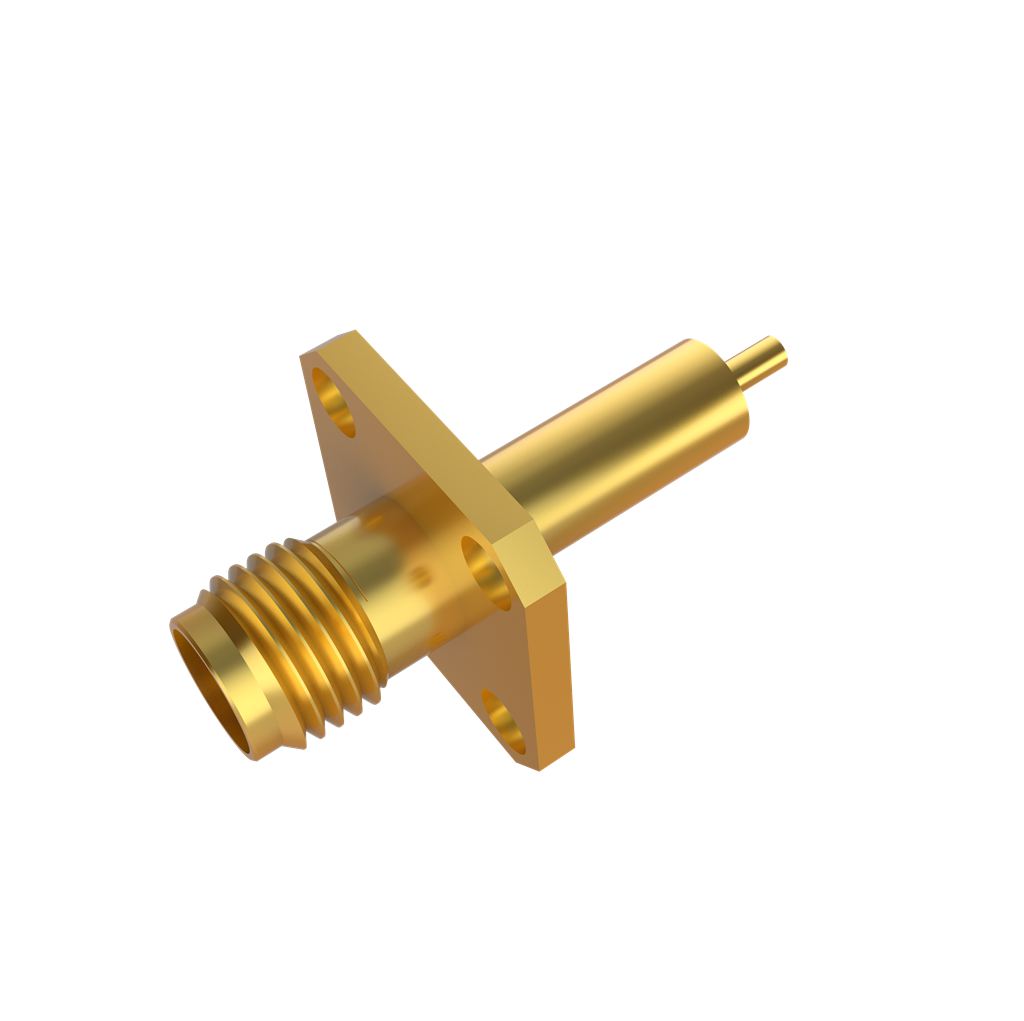

The SMA RF Connector is Wide frequency coverage up to 18 GHz RF connector designed for high-frequency applications up to 6 GHz, 50 OHMS. With a threaded interface, it ensures reliable connections in Radar & Satellite Systems,IoT Devices,Base Stations.
Frequency Range | DC to 18 GHz,extended to 26.5 GHz |
Impedance | 50 Ohms |
VSWR | ≤ 1.2:1 |
Material | Gold-plated Brass |
Interface | Threaded Interface for Secure Connection |
Wireless Communication Systems
Radar & Military Equipment
Telecommunications & 5G
Test & Measurement Equipment
GPS & Navigation Systems
Radar & Satellite Systems
IoT Devices
Base Stations
Body Plating | Gold |
Body Material | Brass |
Cable Type | N/A |
Contact Plating | Gold |
Contact Material | Beryllium Copper |
Contact Termination | Solder |
Coupling Mechanism | Threaded |
HS Code | 8536909000 |
Frequency (Max GHz) | 11 |
Gender | Female |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Size Category | Subminiature |
Temperature Range | -65 to 165 °C |
Thread Direction | Standard |
Mating Cycles | 500 Min |
Interface Specification | MIL-STD-348 |
