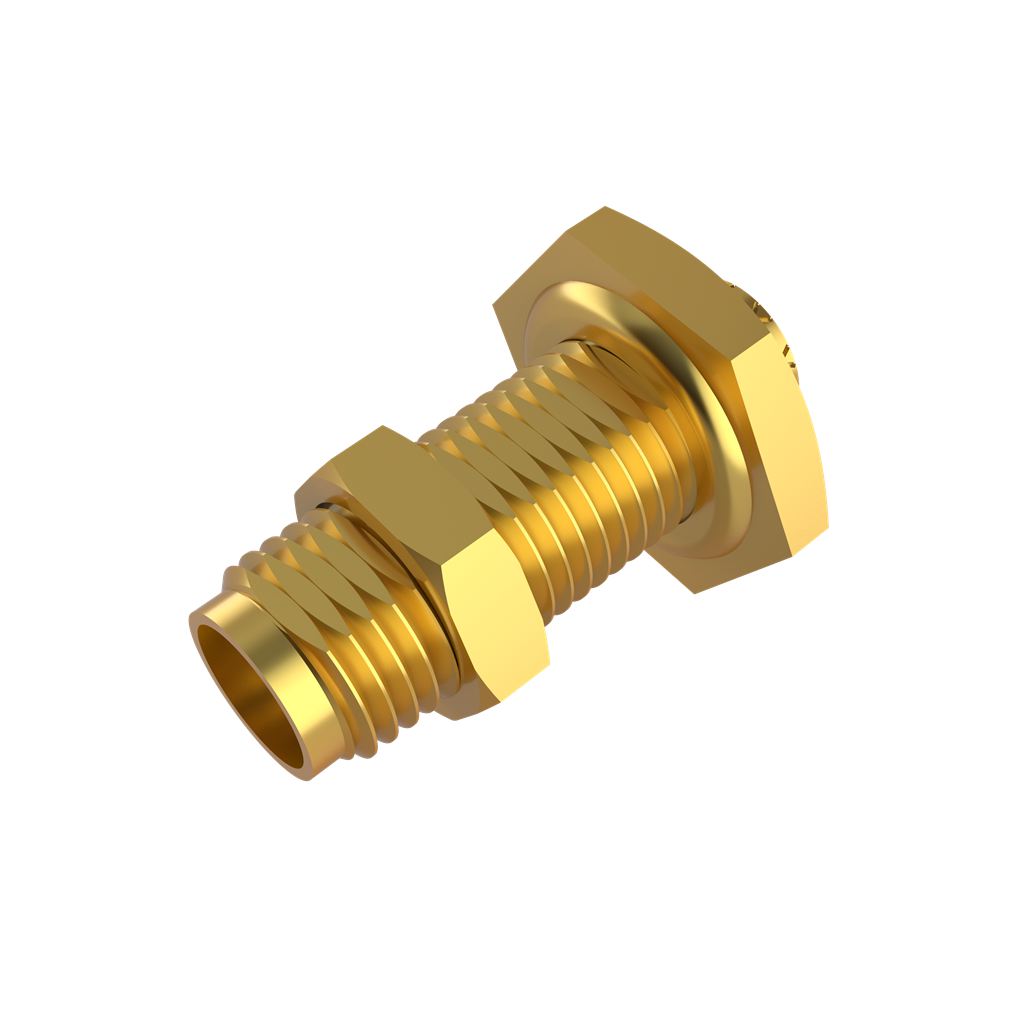

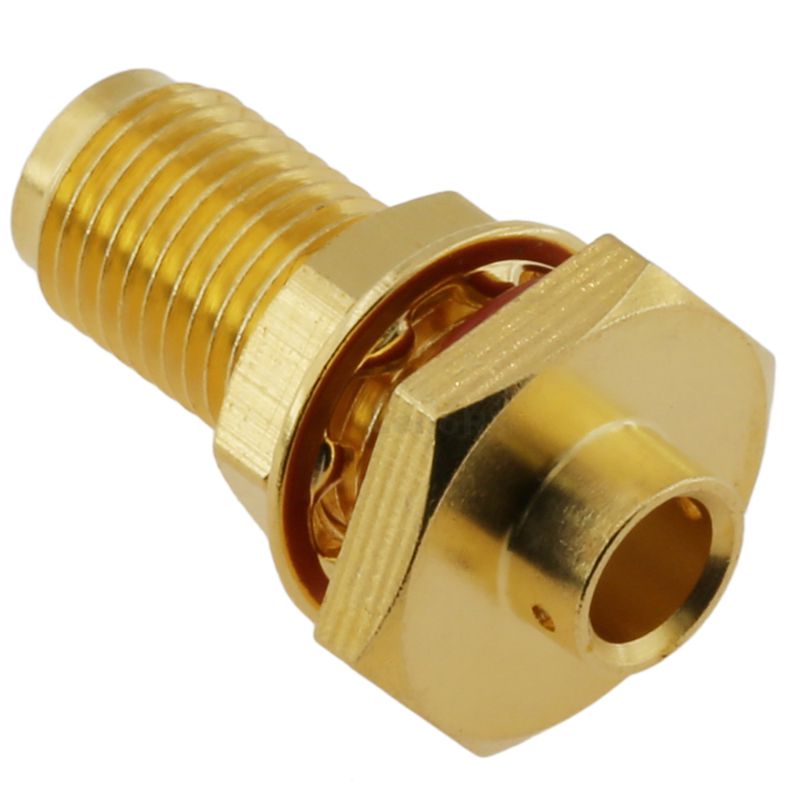

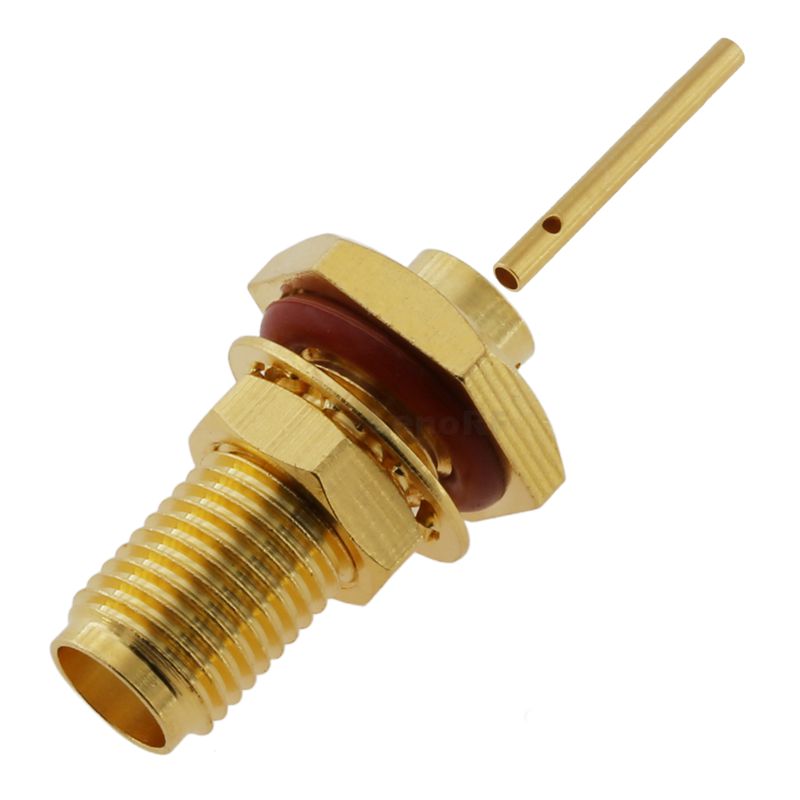

SMA Connectors Jack Crimping Straight For 3D-FB Coaxial Cable

SMA coaxial connectors from LenoRF provide excellent quality and performance. Great dependability, extended service life, high mechanical stability, and outstanding electrical properties are all features of these screw-on locking connectors with a set maximum torque. The butted outer contact allows for excellent frequency ranges up to 18 GHz and 30 dB return loss. SMA connectors are used in a variety of RF applications, including telecommunications and mobile communication, as well as test and measurement tools and equipment.
  • 21-311
  • 89-5061-330-01
  • Female
  • Straight
  • Soldering
  • Soldering
  • 3D-FB
  • 89-5061-330-01.pdf
  • 89-5061-330-01.stp
Availability:
Quantity:
Body   PlatingGold
Body MaterialBrass
Cable Type 3D-FB
Contact PlatingGold
Contact MaterialBrass
Contact TerminationCrimping
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)12.4
GenderJack
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Panel Mounting FeatureN/A
Size CategorySubminiature
Temperature Range-65   -165 °C
Termination StyleSolder
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
