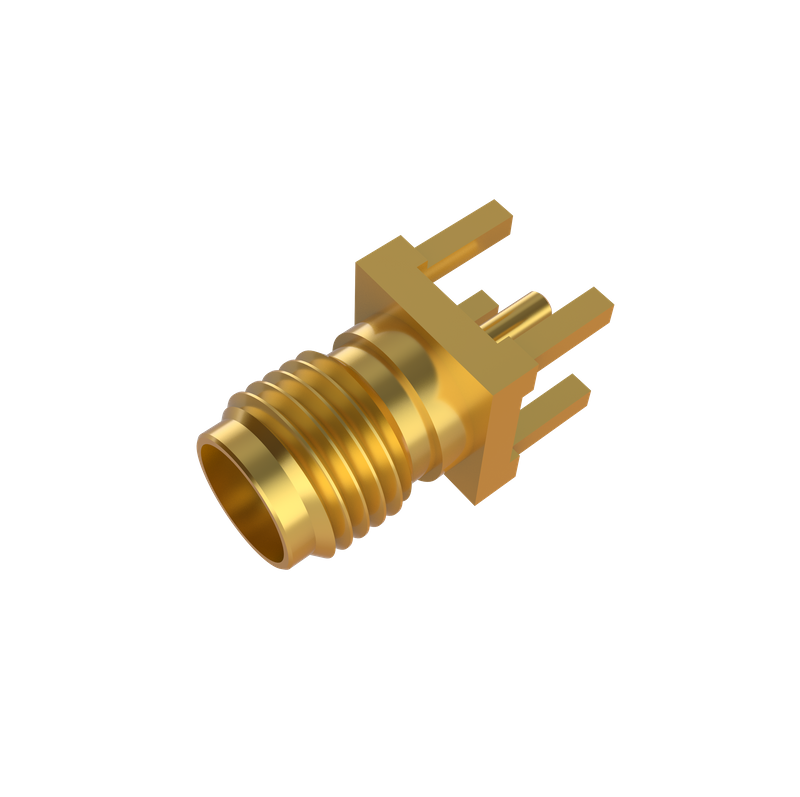

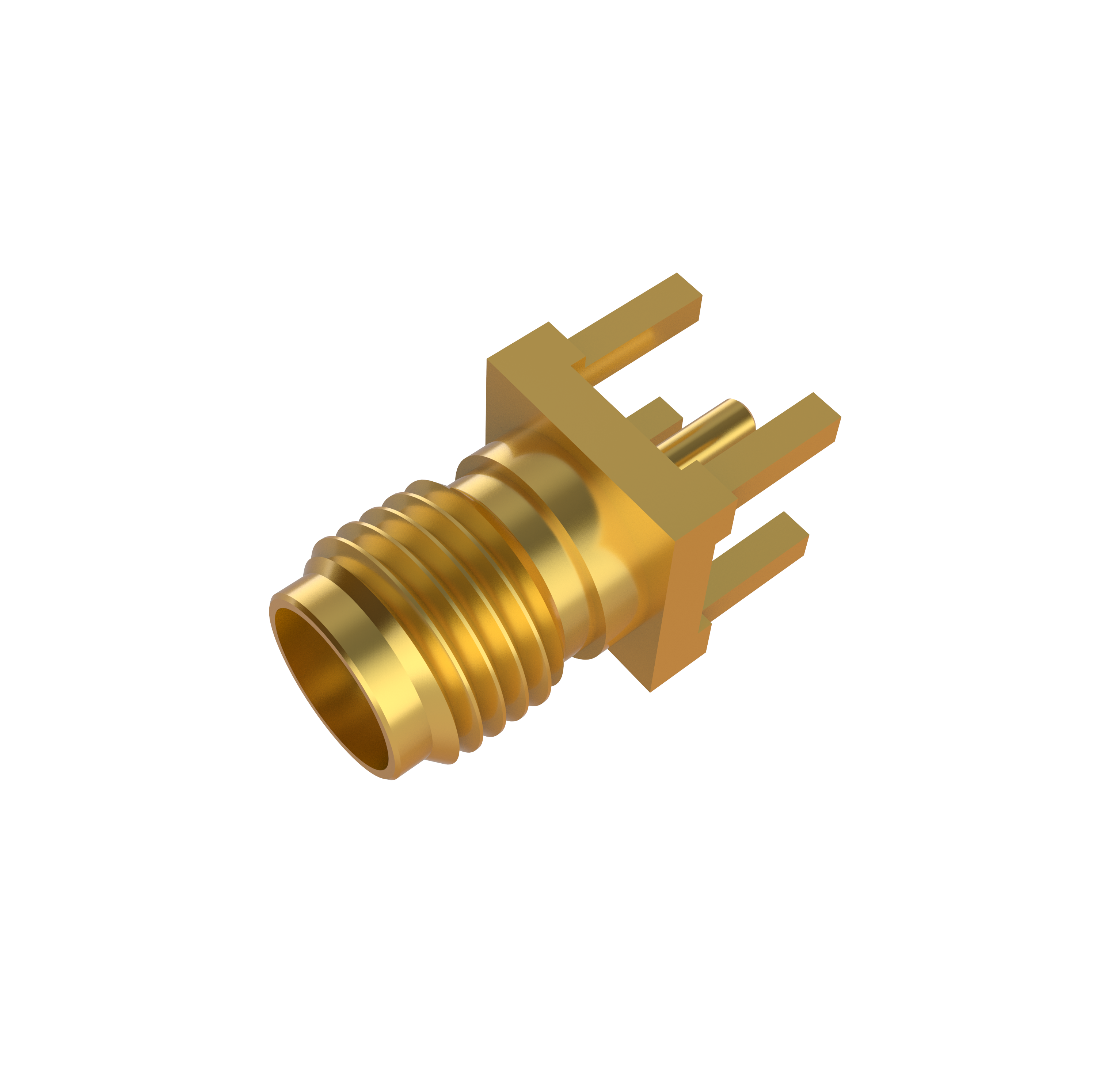

SMA Connectors Jack Straight For PCB Solder

LenoRF's SMA coaxial connectors are high-quality and reliable. These screw-on locking connectors with a fixed maximum torque provide high reliability, extended service life, great mechanical stability, and excellent electrical qualities. The butted outer contact provides for exceptional frequency ranges of up to 18 GHz and a return loss of 30 dB. SMA connectors are utilized in a wide range of RF applications, including telecommunications and mobile communication, as well as test and measurement instruments and equipment.
  • 89-5061-011-01
  • Female
  • Straight
  • PCB Hole through
  • Soldering
  • N/A
  • 89-5061-011-01.pdf
  • 89-5061-011-01.stp
Availability:
Quantity:
Body   PlatingGold
Body MaterialBrass
Cable Type N/A
Contact PlatingGold
Contact MaterialBeryllium Copper
Contact TerminationSolder
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)12.4
GenderJack
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Panel Mounting FeatureBulkhead - Rear   Mount
Size CategorySubminiature
Temperature Range-65 -165 °C
Termination StylePCB - Through Hole
Thread DirectionStandard
Mating Cycles500 Min
Interface SpecificationMIL-STD-348
