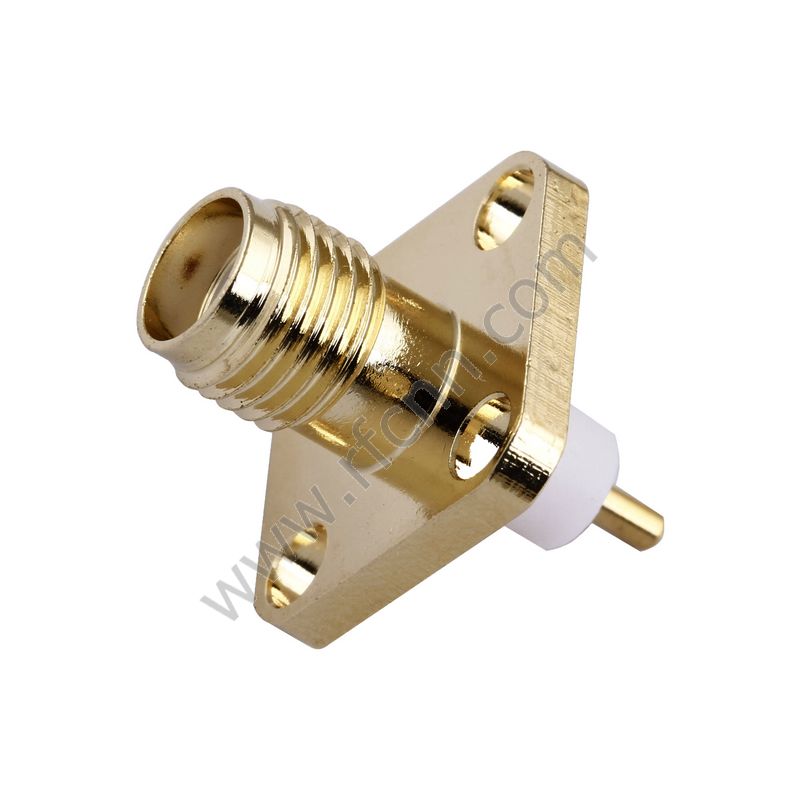

SMA Connectors Female Flange Straight For RG174 Cable

LenoRF SMA coaxial connectors are high-quality and reliable. For high reliability, longer service life, mechanical stability, and electrical performance, these screw-on locking connectors have a preset maximum torque. The butted outer contact provides for exceptional frequency ranges of up to 18 GHz with less than 30 dB return loss. SMA connectors are widely used in RF applications, such as telecommunications and mobile communication, as well as test and measurement instruments and equipment.
  • SMA226-174

  • Female

  • Straight

  • 4 Hole Flange

  • Crimping

  • RG174

Availability:
Quantity:
Body   PlatingGold
Body MaterialBrass
Cable TypeN/A
Contact PlatingGold
Contact MaterialBeryllium   Copper
Contact TerminationSolder
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)12.4
GenderJack
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationRight   Angle
Size CategorySubminiature
Temperature Range-65   -165 °C
Termination StylePCB   - Through Hole
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
