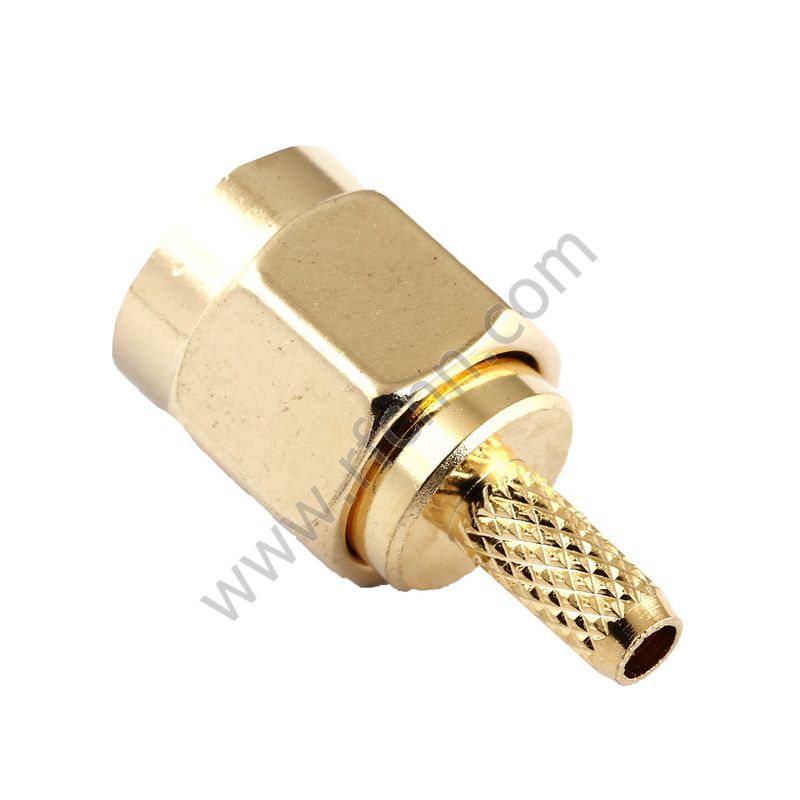

SMA Connectors Male Crimp Str For RG316 Cable

LenoRF offers high-quality and high-performance SMA coaxial connectors. For high reliability, longer service life, mechanical stability, and electrical performance, these screw-on locking connectors include a predetermined maximum torque. Excellent frequency ranges of up to 18 GHz and return loss of less than 30 dB are possible thanks to the butted outer contact. SMA connectors are widely used in RF applications such as telecommunications and mobile communication, as well as test and measurement instruments and equipment.
  • SMA121-316

  • Male

  • Straight

  • Crimping

  • Crimping

  • RG316


Body   PlatingGold
Body MaterialBrass
Cable TypeRG316
Contact PlatingGold
Contact MaterialBeryllium   Copper
Contact Termination Crimp
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)9
Impedance (Ohms)50
Insulator MaterialPTFE
Size CategorySubminiature
Temperature Range-65   -165 °C
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348


Thread coupling Mechanism

Crimping or soldering contact

50 impedance up to 18GHz

Light weight,compact design

Anti-vibration performance


1. Sample delivery time

Regular model need 15 days, some complex connectors need 25 days

2. Sample Fee

The most of RF connector is CNC parts,don't need to make mold.

Through, each part need be tuning the CNC, usually one sample need 200 USD cost.

The fee will return after 5K bulk order

3. The Quarantee

Brass RF connector is one year, the stainless steel connector is three year.

Also, depend on the material of contact, Beryllium contact have better lifetime.


Our product fully compliance with ROHS&REACH.

5.Does LENORF offer military class product

Yes. We honor to offer military product with super stable quality.

6. MOQ

Regular connector: 500PCS.


Military connector:100PCS

7. Materials

The popular material is brass,stainless steel for body, PTFE,PEEK for insulator,

brass, phosphor bronze, beryllium copper for contact, as well as aluminum,titanium alloy.



Our company, Zhejiang LenoRF Industry co. LTD, occupies an area of 30 hectares and is equipped with world class equipment to make millimeter wave connectors and phase stable cables. We specialize in coaxial connectors, cable assembly, and passive devices. Our current products are the latest millimeter wave connector and phase stable cable on the market.
