Overview
An RF attenuator is a passive device that reduces the power level of an RF signal without distorting its waveform. By introducing a known loss, attenuators help manage signal levels, protect sensitive components, and improve system performance. They are available in fixed, variable, and step types, and are commonly specified by attenuation value (dB), frequency range, power handling, and connector interface.
Features
Attenuation Control: Provides precise reduction of signal power in defined steps (e.g., 1 dB, 3 dB, 10 dB) or continuously adjustable
Frequency Range: Can support DC to 50+ GHz depending on the design.
Low Insertion Loss: Ensures minimal impact on signal transmission and VSWR performance.
Power Handling: Low-, medium-, and high-power models available, from a few watts to hundreds of watts.
Impedance Matching: Typically 50 ohm (some are 75 ohm), ensuring minimal reflection and low VSWR.
Types: Fixed attenuators, variable attenuators, programmable or step attenuators.
Applications
Protecting sensitive instruments from high signal levels
Adjusting signal levels in test and measurement setups
Improving impedance matching and minimizing reflections
Balancing power in RF/microwave circuits
towers, repeaters, routers, and access points for reliable RF signal transfer
radar systems, avionics, and navigation equipment
5G, LTE, Wi-Fi, and satellite communication systems
Specification

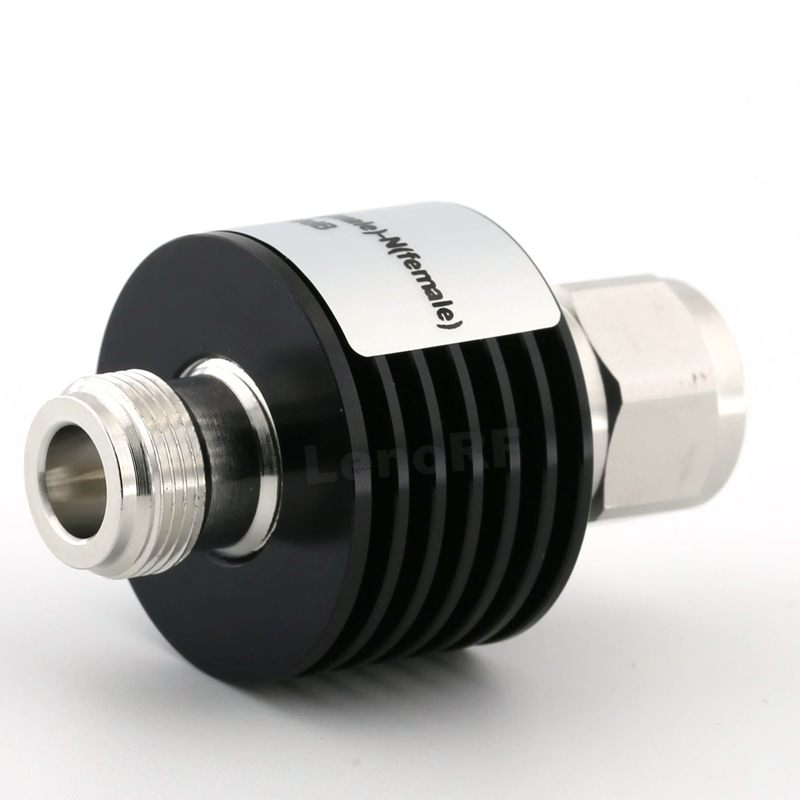

Power | 15W |
Frequency | DC-6GHz |
VSWR | DC-6GHz≦1.25 |
Attenuation | (1-10dB)±0.8dB (15-30dB) ±1.5 dB |
Impedance | 50 ohm |
RF Connector | N male to female |
Working Temperature | -55 ~ +125 ℃ |
