Overview

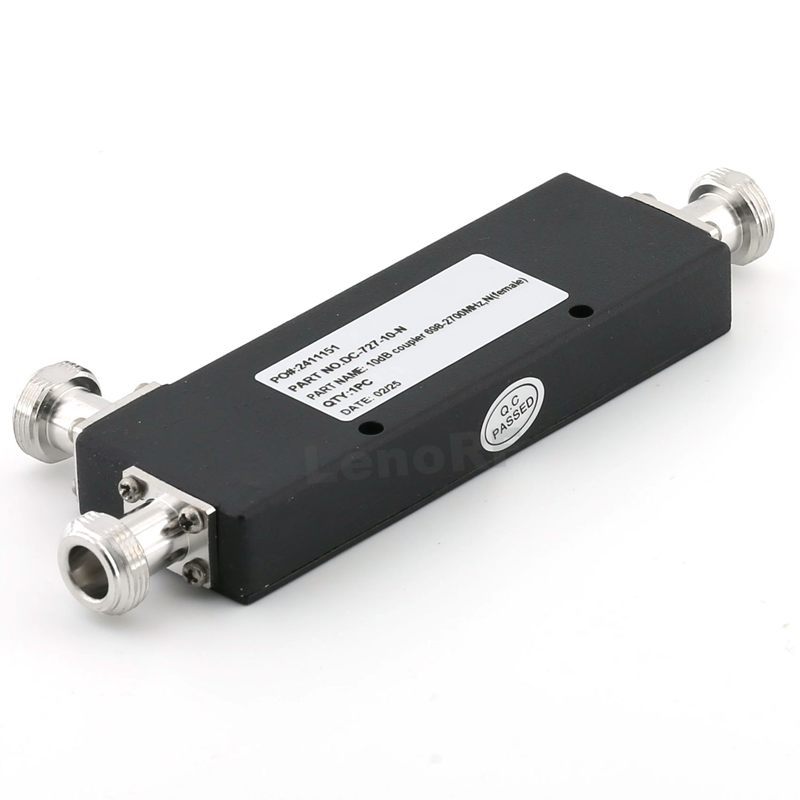

An RF coupler (commonly called a directional coupler) is a passive device that samples or combines RF signals while maintaining controlled signal direction and minimal disturbance to the main transmission line. It provides a way to monitor, measure, or inject signals without interrupting system operation.
Features
Coupling Factor: Defines how much of the input signal is sampled (e.g., 3 dB, 6 dB, 10 dB, 20 dB).
Frequency Range: Available for use from kHz to over 100 GHz, depending on design.
Low Insertion Loss: Minimizes signal loss in the through line
Types: Directional couplers, hybrid couplers (90° and 180°), and dual-directional couplers.
Applications
Monitoring signal power without disturbing the main line
Measuring reflected power (VSWR) for antenna systems
Combining or distributing signals in communication networks
Signal sampling for test and measurement setups
electronic warfare, military radios, and secure communication links
missile guidance, drones, and satellite payload systems
radar systems, avionics, and navigation equipment
Specification
Part numbers. | DC-727-5/6-N | DC-727-7/8-N | DC-727-10-N | DC-727-13/15-N | DC-727-20-N | DC-727-25-N |
Frequency(MHz) | 698-2700 |
Insertion Loss | ≦2.1/≦1.75 | ≦1.45/≦1.30 | ≦0.8 | ≦0.8/ ≦0.5 | ≦0.4 | ≦0.4 |
Coupling | 5/6 | 7/8 | 10 | 13/15 | 20 | 25 |
Accuracy | ±0.8/±0.8 | ±0.8/±0.8 | ±1.0 | ±1.0/ ±1.0 | ±1.2 | ±1.5 |
Isolation | ≧25/≧26 | ≧27/≧28 | ≧28 | ≧31/≧33 | ≧38 | ≧45 |
VSWR | ≦1.25 |
（PIM 3） | ≦-155dBc@2×43dBm |
Power | 200W |
Impedance | 50 ohm |
RF Connector | N-female |
Color | Black-plated |
Temperature | -20~+70 |
Application | Indoor or Outdoor, IP60 or IP65 |
Humidity | 5%-95% |
Weight(kg) | 0.23 |
