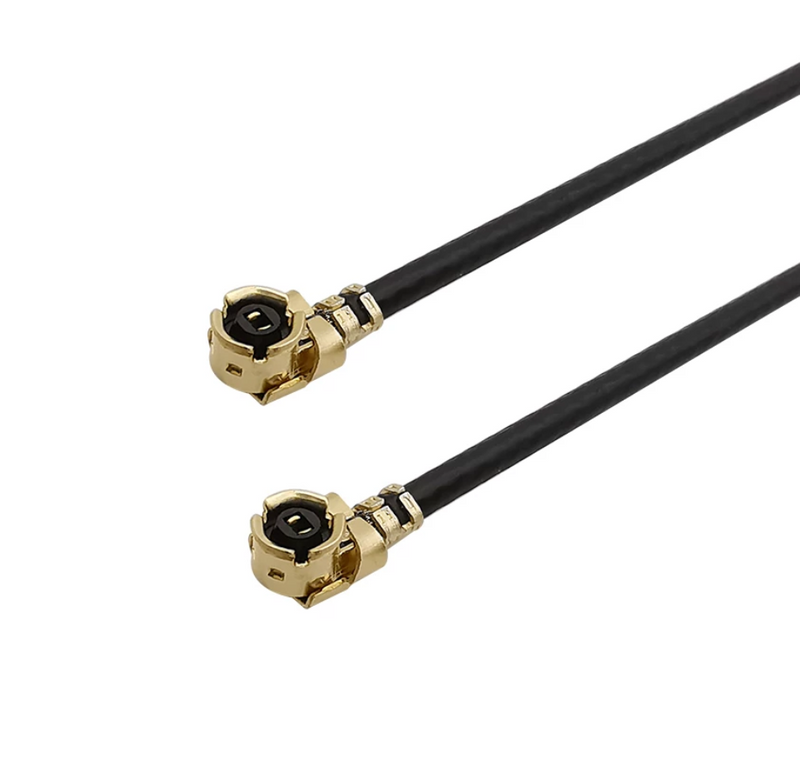

Micro Coaxial Cable,0.98mm,1.13mm,1,32mm,1.37mm

Micro coaxial cable has a very tiny diameter and may be used for antennas, routers, and other applications. The outside diameter of the popular model is given a name, such as 0.98mm,1.13mm,1.32mm, and 1.37mm.

Gender:
Male
Orientation:
Straight
Termination Body:
Crimping
Termination Contact:
Crimping

Availability:

Quantity:



Inquire Add to Basket

Product Description

Part Number	Impedance	Frequency (GHz)	Velocity	Capacitance (pF/M)	Maximun Voltage (VMS)	Conductor OD(mm)	Dielectric OD (mm)	Shield OD (mm)	Jacket OD (mm)	Bending Moment (mm)
40 AWG	50	1	70%	100	50	7X0.03	0.25	0.32	0.38	2
42 AWG	50	1	70%	100	50	7X0.025	0.17	0.23	0.30	2
MICRO-0.98	50	6	70%	100	1000	7X0.064	0.53	0.75	0.98	3
MICRO-1.13	50	6	70%	95.6	1000	7X0.08	0.68	0.88	1.13	4
MICRO-1.32	50	6	70%	100	1000	7X0.08	0.68	0.88	1.31	4
MICRO-1.37	50	6	70%	96	1000	7X1.02	0.88	1.10	1.37	12.5

Micro Coaxial Micro Cable coaxial cable 0.98 Coaxial Cable 1.13 Coaxial Cable 1.32 Coaxial Cable 1.37 Coaxial Cable

Our company, Zhejiang LenoRF Industry co. LTD, occupies an area of 30 hectares and is equipped with world class equipment to make millimeter wave connectors and phase stable cables. We specialize in coaxial connectors, cable assembly, and passive devices. Our current products are the latest millimeter wave connector and phase stable cable on the market.
