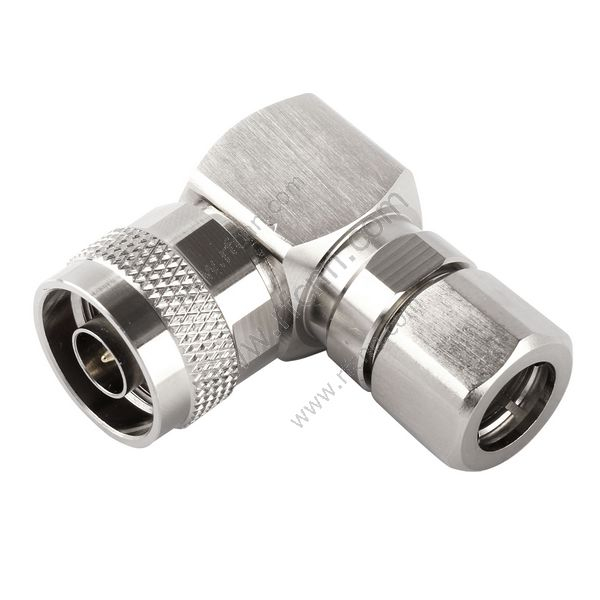

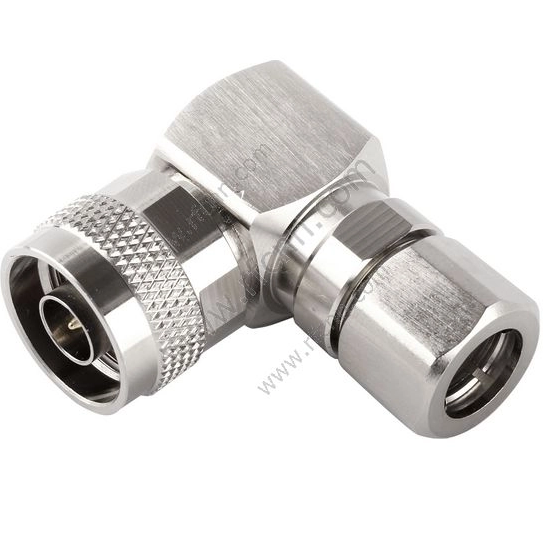

N Connectors Male Right Angle Clamp For LMR400 Cables

"Our N type connector is of great quality and value. To achieve high-quality electric performance and a reliable mechanism, we utilize brass, phosphor bronze, or beryllium copper for the center contact with silver, gold plating, and brass for the body with silver, tri-metal plating.
The N type connector takes a wide range of coaxial cables, including low-loss cables.
The MIL-C-39012-compliant N-type RF connector is used in antennas, base stations, instrumentation, satellite systems, WLAN, radar systems, broadcast, and surge protection, among other applications."
  • N11RA-LMR400

  • Male

  • Right angle

  • Clamping

  • Crimping

  • LMR400

Body   PlatingNickel
Body MaterialBrass
Cable TypeLMR400
Contact PlatingGold
Contact MaterialPhosphor   Bronze
Contact TerminationCrimping
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)6
Impedance (Ohms)50
Insulator MaterialPTFE
Size CategoryStandard
Temperature Range-65   -165 °C
Termination StyleClamp
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
