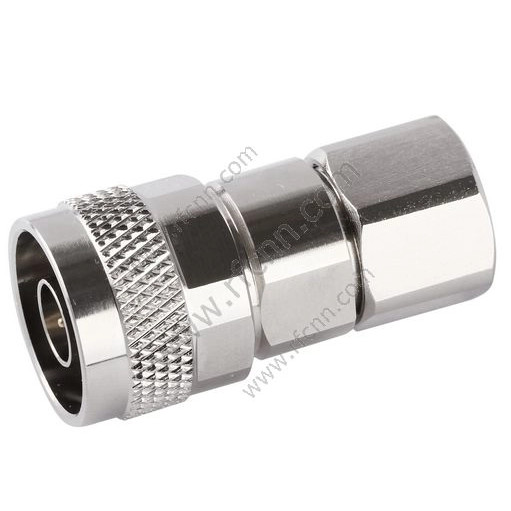

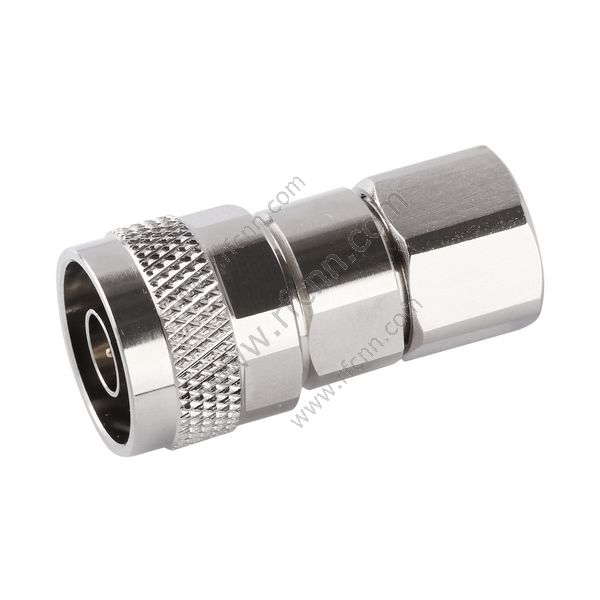

Type N Connectors Male Clamp Straight For LMR400 Low Loss Cable

"Our N type connector is of exceptional quality and value. To achieve high-quality electric performance and a reliable mechanism through threaded coupling, we utilize brass, phosphor bronze, or beryllium copper for the center contact with silver, gold plating, and brass for the body with silver, tri-metal plating.
The N type connector is compatible with a wide range of coaxial cables, including those with low loss.
The RoHS and REACH-compliant N-type RF connector is designed for a wide range of applications, including antennas, base stations, instrumentation, satellite systems, WLAN, radar systems, broadcast, and surge protection, and is built to the MIL-C-39012 standard."
  • N111-LMR400

  • Male

  • Straight

  • Clamping

  • Crimping

  • LMR400

Body   PlatingNickel
Body MaterialBrass
Cable TypeLMR400
Contact PlatingGold
Contact MaterialPhosphor   Bronze
Contact TerminationCrimping
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)6
Impedance (Ohms)50
Insulator MaterialPTFE
Size CategoryStandard
Temperature Range-65   -165 °C
Termination StyleClamping
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
