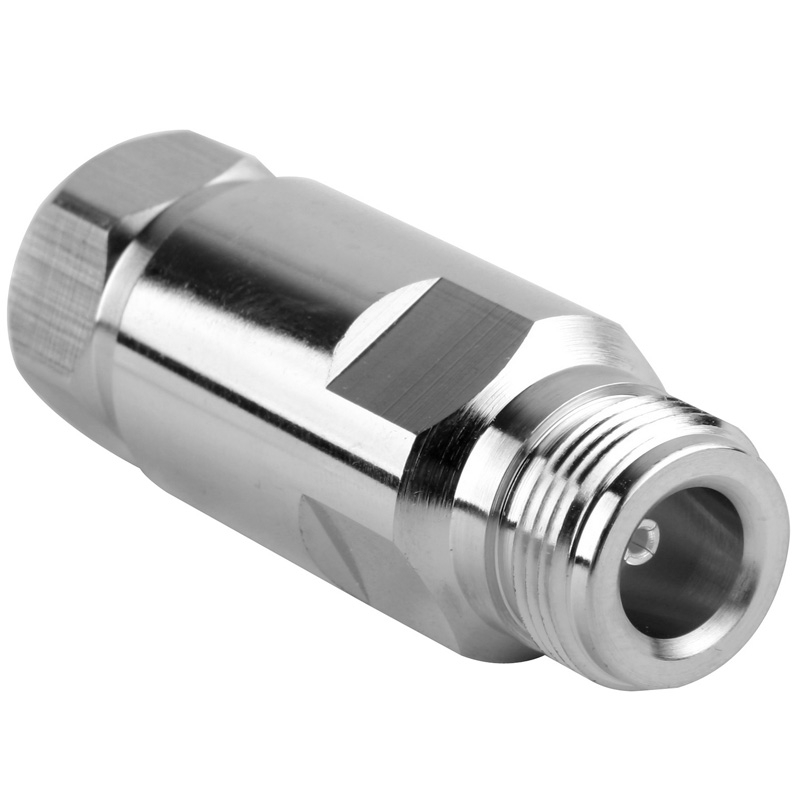

Type N Connectors Female Clamp Straight For LMR400 Cable

"Our N type connector is of great quality and value. To achieve high-quality electric performance and a reliable mechanism, we utilize brass, phosphor bronze, or beryllium copper for the center contact with silver, gold plating, and brass for the body with silver, tri-metal plating.
The N type connector takes a wide range of coaxial cables, including low-loss cables.
The MIL-C-39012-compliant N-type RF connector is used in antennas, base stations, instrumentation, satellite systems, WLAN, radar systems, broadcast, and surge protection, among other applications."
  • N221-400

  • Female

  • Straight

  • Clamping

  • Crimping

  • LMR400

Body   PlatingNickel
Body MaterialBrass
Cable TypeLMR400
Contact PlatingGold
Contact MaterialBeryllium   copper
Contact TerminationCrimping
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)6.5
Impedance (Ohms)50
Insulator MaterialPTFE
Size CategoryStandard
Temperature Range-65   -165 °C
Termination StyleClamp
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348

Our company, Zhejiang LenoRF Industry co. LTD, occupies an area of 30 hectares and is equipped with world class equipment to make millimeter wave connectors and phase stable cables. We specialize in coaxial connectors, cable assembly, and passive devices. Our current products are the latest millimeter wave connector and phase stable cable on the market.
