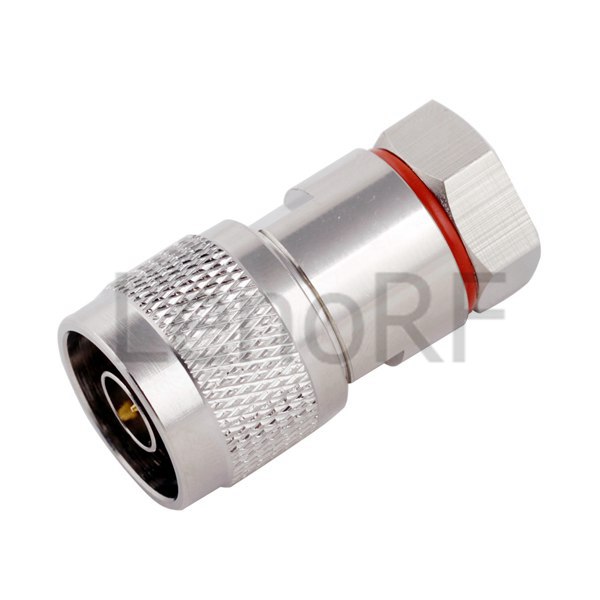

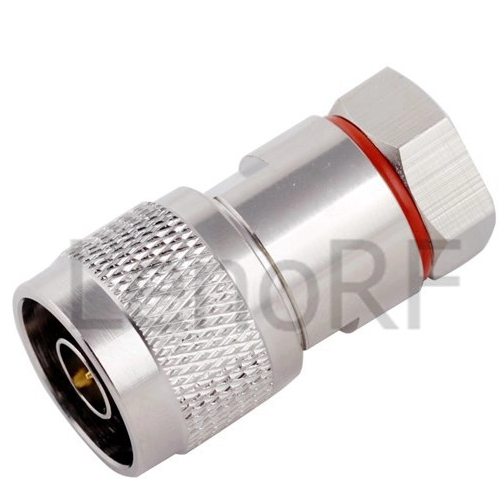

Type N Connector Male Straight Clamp For RG213 Cable

"The quality of our N type connector is outstanding, and the pricing is reasonable. To provide high-quality electric performance and a reliable mechanism using threaded coupling, we utilize brass, phosphor bronze, or beryllium copper for the center contact with silver, gold plating, and brass for the body with silver, tri-metal plating.
The N type connector is compatible with a wide range of coaxial cables, including low-loss cables.
Antennas, base stations, instrumentation, satellite systems, WLAN, radar systems, broadcast, and surge protection are just a few of the uses for the RoHS and REACH-compliant N-type RF connector, which is built to the MIL-C-39012 standard."
  • N212-RG213

  • Male

  • Straight

  • Clamping

  • Crimping

  • RG213

Availability:
Quantity:
Body   PlatingNickel
Body MaterialBrass
Cable TypeRG213
Contact PlatingGold
Contact MaterialPhosphor   Bronze
Contact TerminationCrimping
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)6
GenderPlug
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Size CategoryStandard
Temperature Range-65   -165 °C
Termination StyleCLAMP
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
