Overview

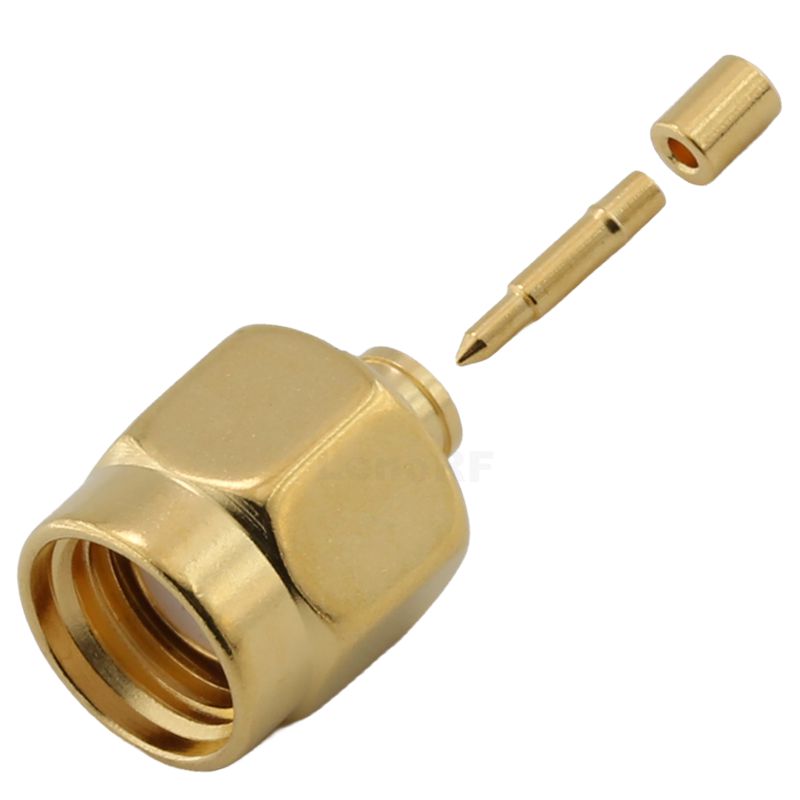

The SMA RF Connector is Gold plated contacts for low resistance RF connector designed for high-frequency applications up to 6 GHz, 50 OHMS. With a threaded interface, it ensures reliable connections in Cable TV distribution and headend systems,Vehicle radar (24 GHz, 77 GHz for ADAS),Studio equipment, satellite uplink/downlink stations.
Features
Frequency Range | DC to 18 GHz,extended to 26.5 GHz |
Impedance | 50 Ohms |
VSWR | ≤ 1.2:1 |
Material | Gold-plated Brass or Stainless Steel |
Interface | Threaded Interface for Secure Connection |
Applications
Wireless Communication Systems
Radar & Military Equipment
Telecommunications & 5G
Test & Measurement Equipment
GPS & Navigation Systems
Cable TV distribution and headend systems
Vehicle radar (24 GHz, 77 GHz for ADAS)
Studio equipment, satellite uplink/downlink stations
Specification
Body Plating | Gold |
Body Material | Brass |
Contact Plating | Gold |
Contact Material | Beryllium Copper |
Coupling Mechanism | Threaded |
HS Code | 8536909000 |
Frequency (Max GHz) | 6 |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Size Category | Subminiature |
Temperature Range | -65 to 165 °C |
Thread Direction | Standard |
Mating Cycles | 500 Min |
Interface Specification | MIL-STD-348 |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material—beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What is impedance, and why is 50 Ω or 75 Ω important?
Impedance matching prevents signal reflection and power loss. 50 Ω: Standard for RF communication, test equipment, aerospace, defense. 75 Ω: Standard for broadcast, video, and cable TV applications.
What materials are RF connectors made of?
Body: Brass, stainless steel, or beryllium copper (with nickel, gold, or silver plating). Insulator: PTFE, PE, or advanced low-loss dielectrics. Contacts: Gold-plated brass or beryllium copper for low resistance and durability.
