Overview

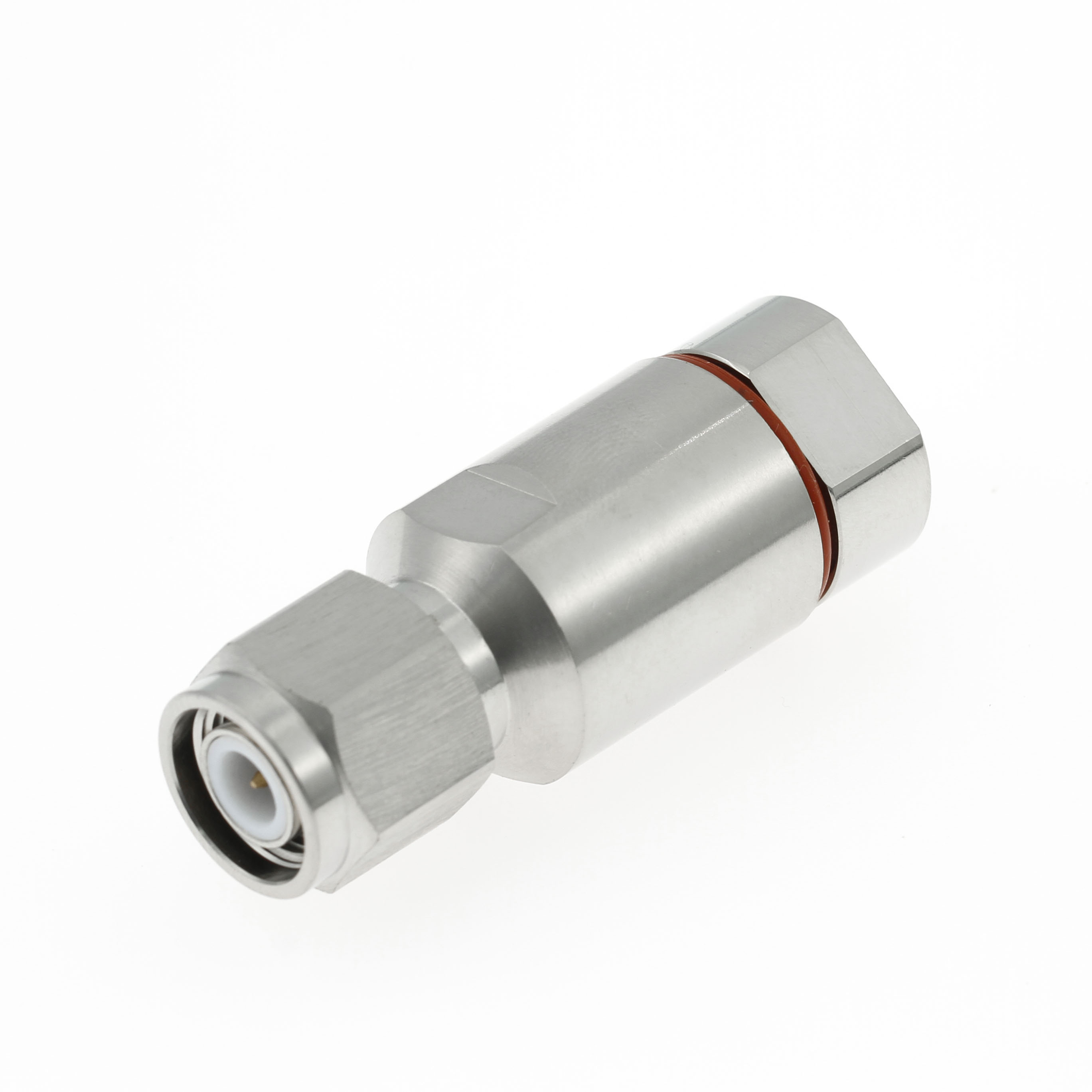

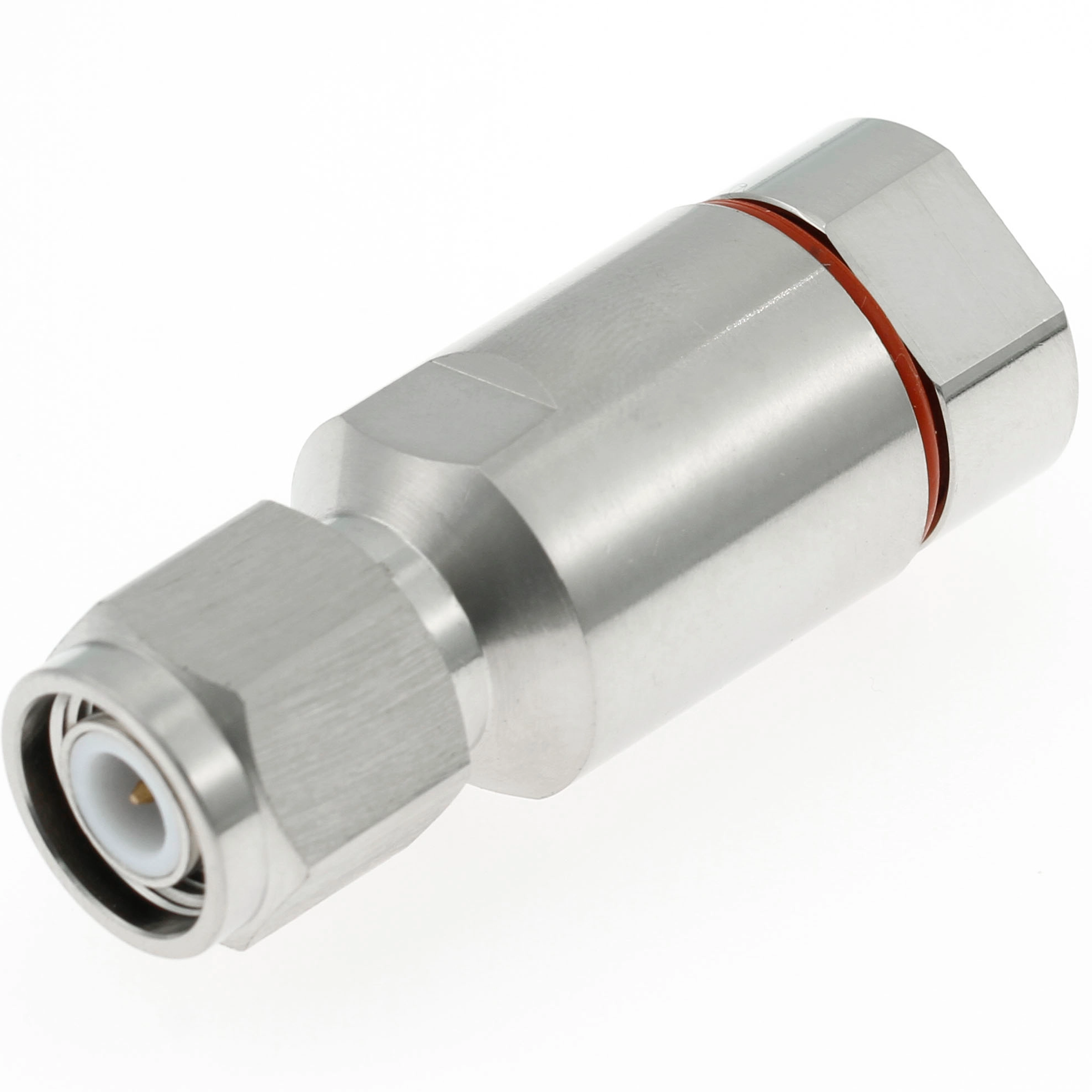

The TNC (Threaded Neill Concelman) connector is a threaded version of the BNC, offering secure, vibration-resistant connections for RF and microwave applications. Its 7/16-28 threaded coupling provides reliable mating and stable performance, even in demanding environments. Standard TNC connectors operate up to 11 GHz, while precision types reach 18 GHz, with 50 ohm and 75 ohm variants available. Known for low signal loss and durability, TNC connectors are widely used in telecommunications, antennas, WLAN, test equipment,cable TV distribution and headend systems,vehicle radar (24 GHz, 77 GHz for ADAS) and military systems. Compact and rugged, the TNC connector delivers consistent electrical performance and is ideal for both indoor and outdoor applications.
Features
Threaded coupling prevents accidental decoupling in high-vibration environments
Robust and durable construction
Wide product range supports many common cable types
Thread version BNC
Applications
Telecom equipment
Broadcast
Instrumentation
Test and measurement equipment
vehicle radar (24 GHz, 77 GHz for ADAS)
in-vehicle infotainment and connectivity systems
cable TV distribution and headend systems
Specification
Body Plating | Nickel |
Body Material | Brass |
Cable Type | 3/8" Flexible Cable
|
Contact Plating | Gold |
Contact Material | Brass |
Contact Termination | Clamp |
Coupling Mechanism | Threaded |
HS Code | 8536909000 |
Frequency (Max GHz) | 5.8 |
Gender | Male/Female |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Size Category | Medium |
Temperature Range | -65 to 165 ° C |
Mating Cycles | 500 Min |
Interface Specification | MIL-STD-348,IEC 60169-17 TNC, IEC 60169-26 TNCA |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What’s the difference between male and female RF connectors?
Male: Has a center pin and usually an outer thread or bayonet. Female: Has a receptacle (socket) for the center pin and matching thread. Some connectors (like SMA) can be confusing because “reverse polarity” (RP-SMA) swaps pin/socket configuration.
What is VSWR, and why does it matter?
VSWR (Voltage Standing Wave Ratio) indicates signal reflection. Ideal: 1.0 (perfect match). Lower VSWR means less signal loss and distortion.
What are typical applications of RF connectors?
Telecom (5G, LTE, satellite) Aerospace & defense (radar, avionics, secure comms) Test & measurement (network/spectrum analyzers) Broadcast & video distribution Automotive radar and IoT devices Medical imaging & equipment
What is the difference between RF connectors and coaxial connectors?
They are often used interchangeably. However: Coaxial connector refers to the physical design (shielded cylindrical form). RF connector emphasizes its use in radio-frequency applications. Most RF connectors are coaxial.
