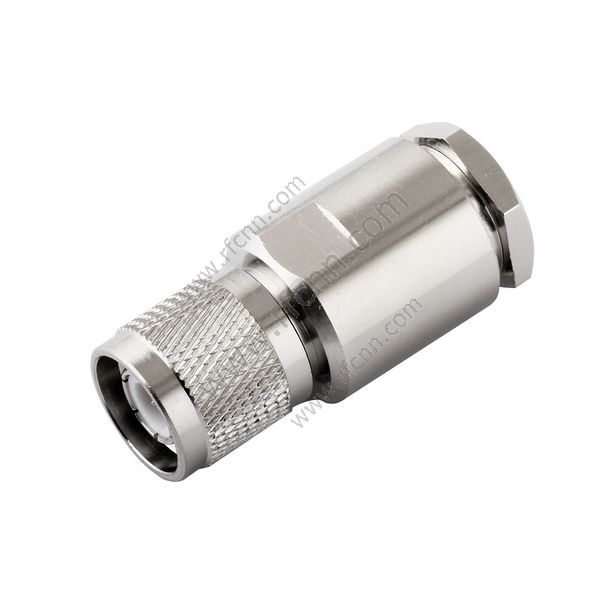

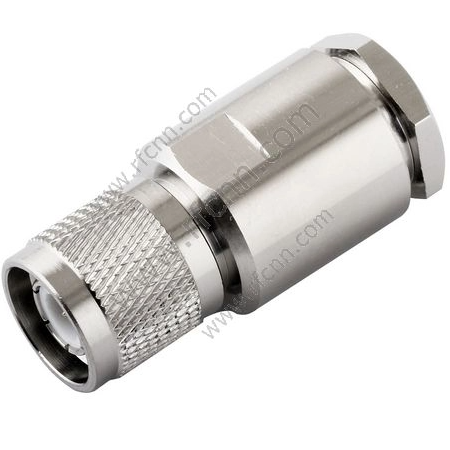

TNC Male Clamp Straight For RG213 -RF Connector

  • TNC.111-RG213


Specification of product:


Part No TNC.111-RG213
Connector Series TNC
Connector Type male
Contact Termination Solder
Shield Termination Clamp
Impedance 75 Ohm
Mounting Type Free Hanging
Cable Group RG213
Fastening Type Thread
Frequency - Max DC-3GHz
Body Material Brass
Body Finish Nickel
Center Contact Material Brass
Center Contact Finish Gold
Dielectric Material Polytetrafluorethylene (PTFE)
Voltage Rating 375V
Working Temperature -65°C ~ 165°C

Application of product

Aerospace,Defense,Telecom,Broadcast, Industrial,Medical, Instrumentation.

Environmental Compliance

All product is RoHS and REACH complaint.
