Overview

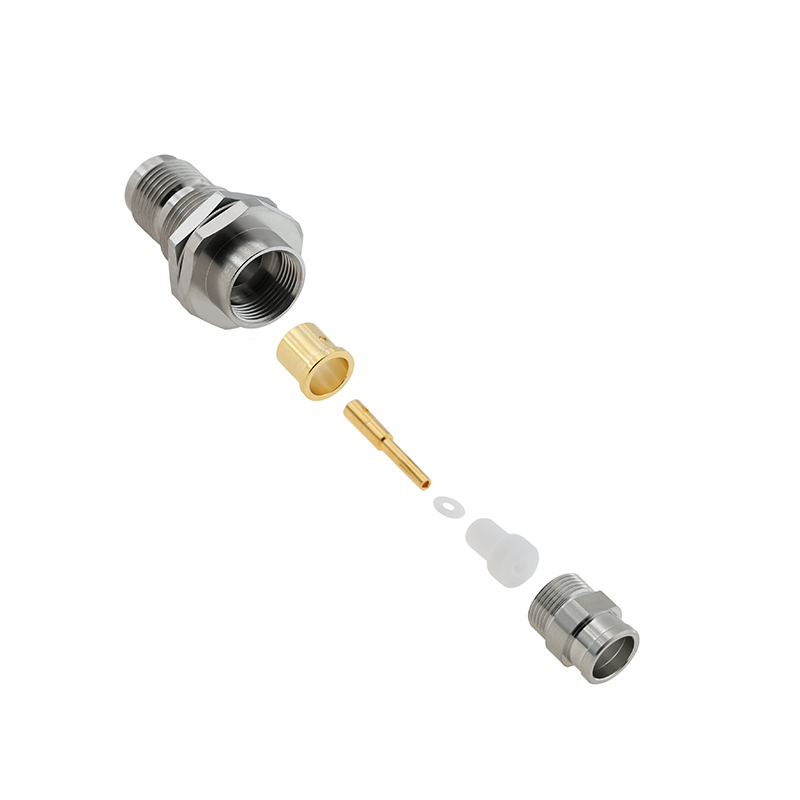

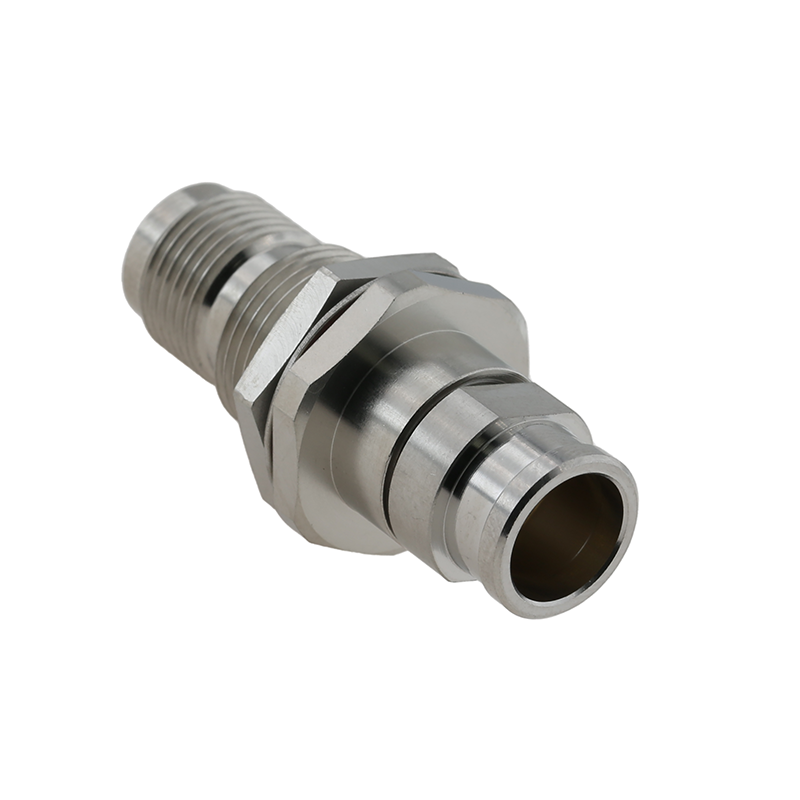

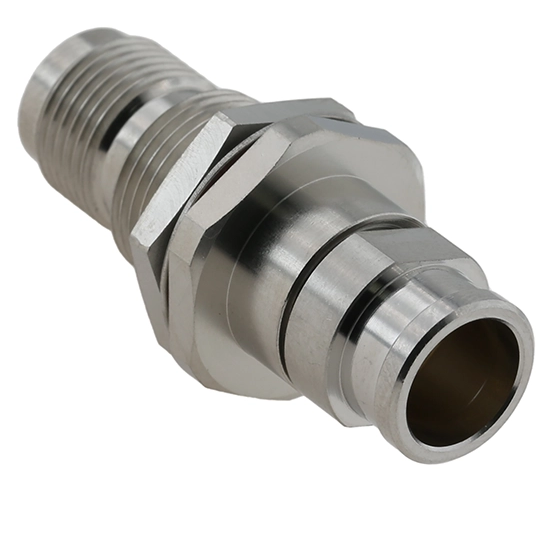

The TNC RF Connector is a threaded, weatherproof connector designed for high-frequency applications up to 11 GHz. It ensures superior durability and stability in RF systems requiring secure connections.
Specifications
Frequency Range: DC to 18 GHz
Impedance: 50 Ohms
VSWR: ≤ 1.3:1
Material: Gold-plated Brass or Stainless Steel
Weatherproof Design for Outdoor Use
Applications
Wireless Communication Systems
Radar & Military Equipment
Telecommunications & 5G
Test & Measurement Equipment
GPS & Navigation Systems
Specification
| Materials&Electroplating |
| Conduct | Brass/ Silver or Golden Plating |
| Insulator | PTFE |
| Body | Brass /Ternary or nickel or silver |
| Other Parts | Brass/ Nickel Plating |
| Electric Performance |
| Impedance | 50 OHMS |
| Frequency Range | 0-18 GHz |
| VSWR | ≤1.30 |
| Rating Voltage | 500V |
| Environmental |
|
| Temperature Rating | -65°C to +165°C |
| Corrosion (Salt Spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D, 20 Gs |
| Shock | MIL-STD-202, Method 213, Condition I, 100 Gs |
| Thermal Shock | MIL-STD-202, Method 107. Cond. B, -65°C to +125°C |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material—beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
