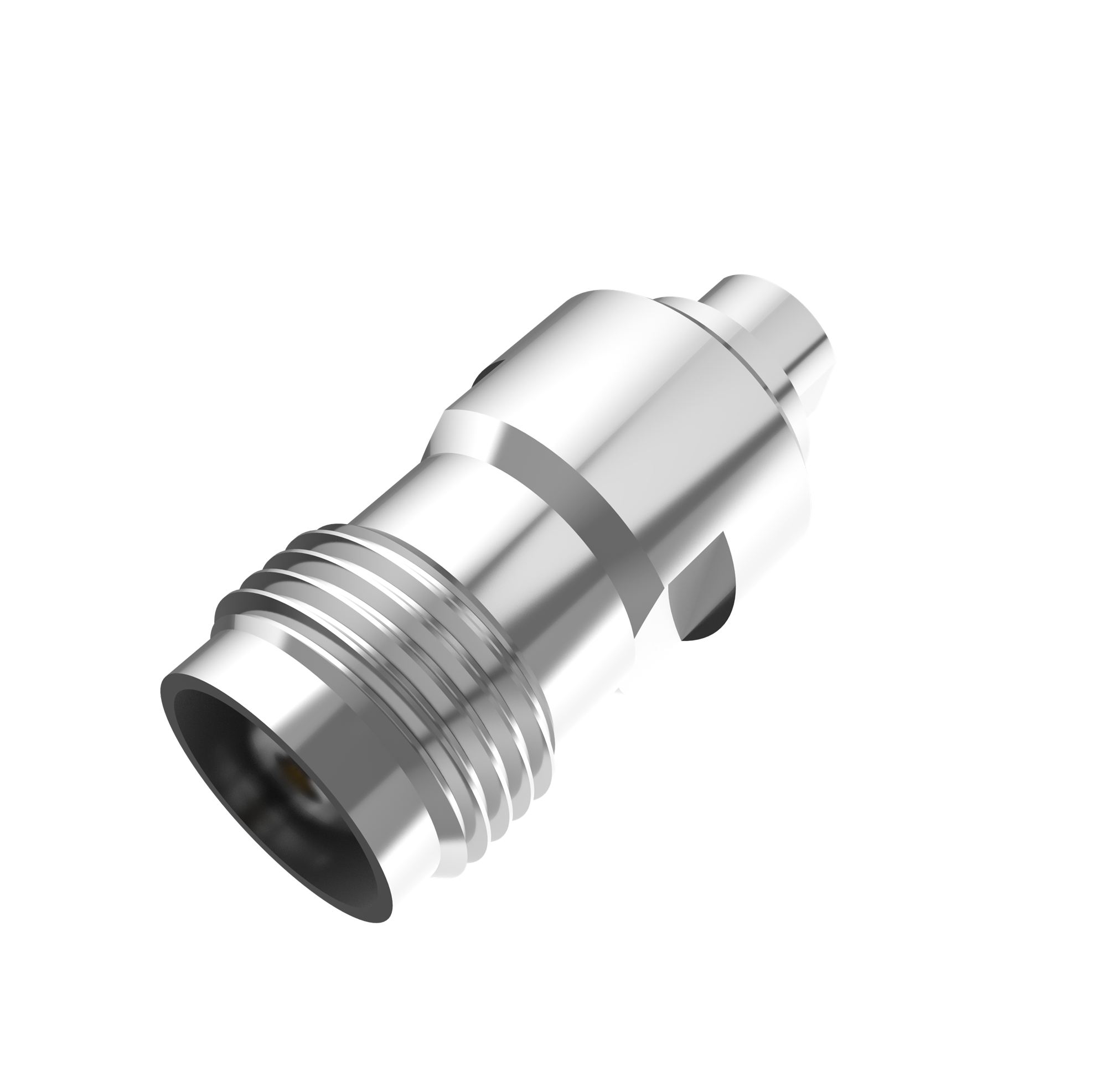

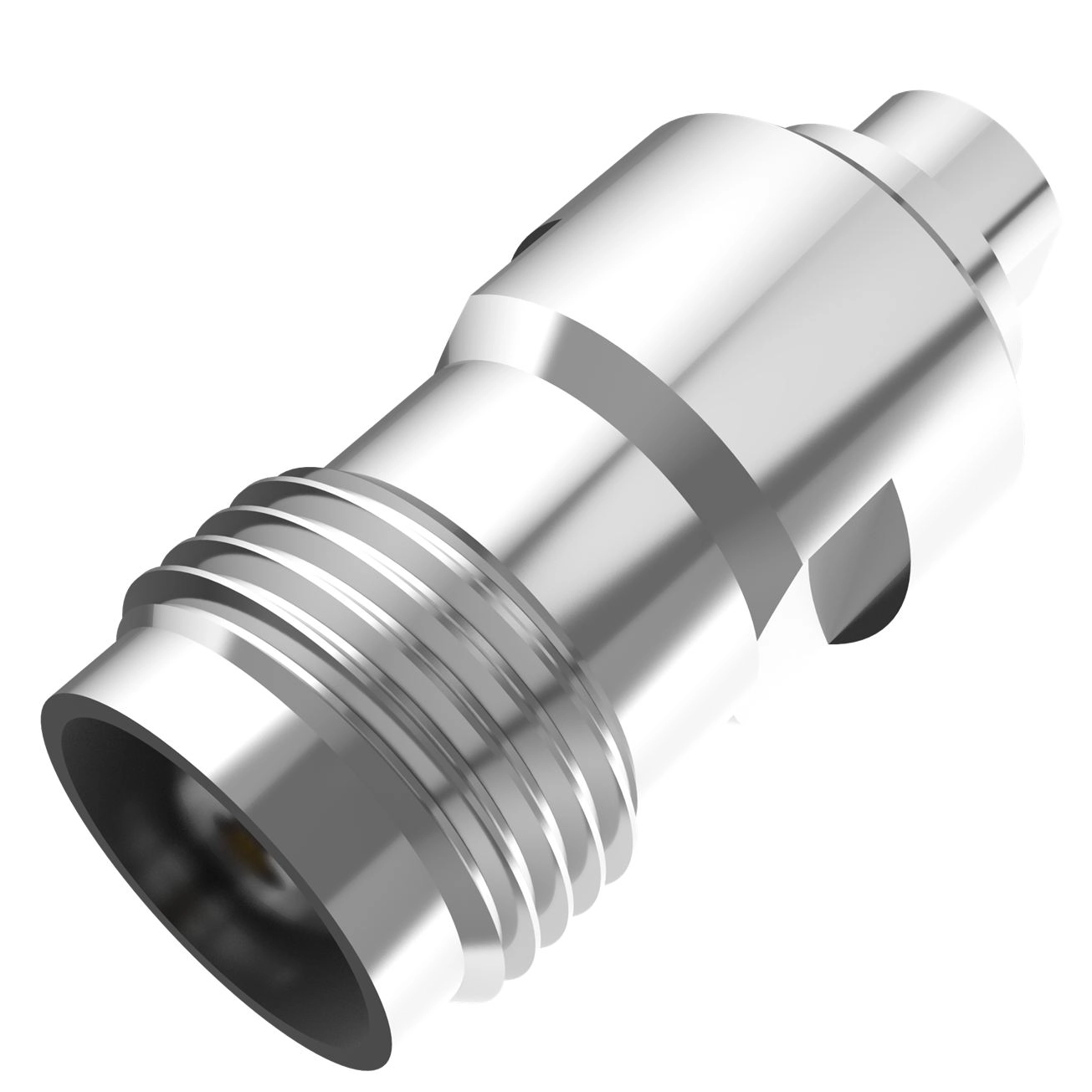

TNC Connector Jack Solder Straight For RG402 Cable

TNC connectors (Threaded Neill Concelman) are coaxial connectors with a 50 ohm impedance. It's a threaded, higher-performance variant of the more popular BNC connection. It's utilized for RF communications at frequencies up to 11 GHz. It's an excellent choice for dealing with microwave frequencies because of its structure, which has threaded couplings that establish a strong connection. Standard polarity and reverse polarity TNC connectors are provided (RP-TNC).

  • 67-5061-330-01

  • Female

  • Straight

  • Soldering

  • Soldering

  • RG402

  • 67-5061-330-01.pdf

  • 67-5061-330-01.stp

Availability:
Quantity:
Inquire Add to Basket

Materials&Electroplating
ConductBrass/   Silver or Golden Plating
InsulatorPTFE
BodyBrass   /Ternary or nickel or silver
Other PartsBrass/   Nickel Plating
Electric Performance
Impedance50   OHMS
Frequency Range0-3GHz
VSWR≤1.30
Rating Voltage500V
Environmental
Temperature Rating-65°C   to +165°C
Corrosion (Salt Spray)MIL-STD-202,   Method 101, Condition B
VibrationMIL-STD-202,   Method 204, Condition D, 20 Gs
ShockMIL-STD-202,   Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202,   Method 107. Cond. B, -65°C to +125°C
Moisture ResistanceMIL-STD-202,   Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202,   Method 105, Condition C, 70k Ft.


Application of product

Aerospace,Defense,Telecom,Broadcast, Industrial,Medical, Instrumentation.

Environmental Compliance

All product is RoHS and REACH complaint.
