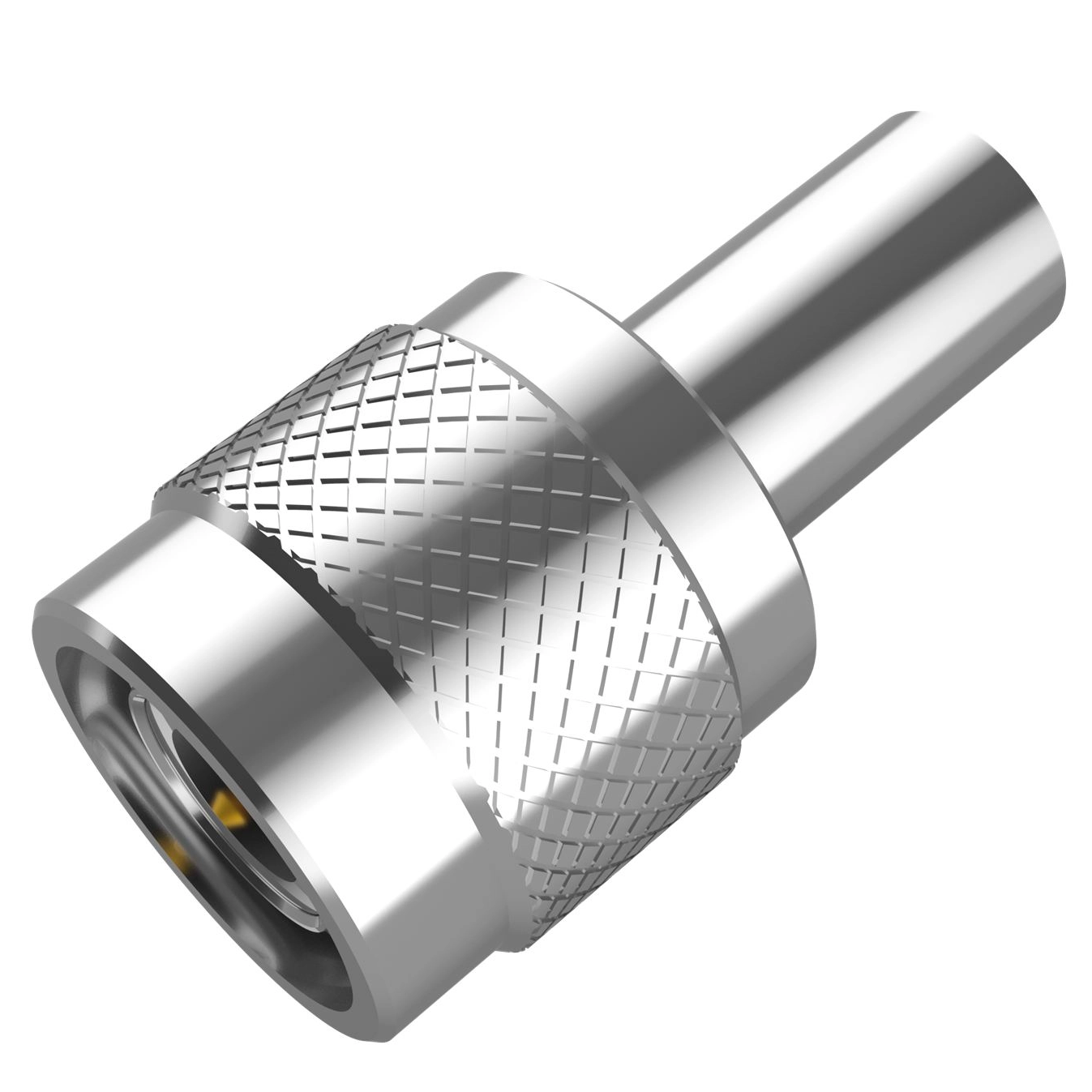

TNC Connector Male Solder Straight For RG402 Cable

TNC (Threaded Neill Concelman) coaxial connectors have a 50 ohm impedance. It's a threaded, higher-performing variant of the more popular BNC connection. It's utilized for RF communications with a frequency range of up to 11 GHz. It's an excellent choice for dealing with microwave frequencies because of its structure, which includes threaded coupling that creates a stable connection. There are two types of TNC connectors: normal polarity and reverse polarity (RP-TNC).

  • 67-5161-330-01

  • Male

  • Straight

  • Soldering

  • Crimping

  • RG402

  • 67-5161-330-01.pdf

  • 67-5161-330-01.stp

Availability:
Quantity:
Inquire Add to Basket

Materials&Electroplating
ConductBrass/   Silver or Golden Plating
InsulatorPTFE
BodyBrass   /Ternary or nickel or silver
Other PartsBrass/   Nickel Plating
Electric Performance
Impedance50   OHMS
Frequency Range0-3GHz
VSWR≤1.30
Rating Voltage500V
Environmental
Temperature Rating-65°C   to +165°C
Corrosion (Salt Spray)MIL-STD-202,   Method 101, Condition B
VibrationMIL-STD-202,   Method 204, Condition D, 20 Gs
ShockMIL-STD-202,   Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202,   Method 107. Cond. B, -65°C to +125°C
Moisture ResistanceMIL-STD-202,   Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202,   Method 105, Condition C, 70k Ft.


Application of product

Aerospace,Defense,Telecom,Broadcast, Industrial,Medical, Instrumentation.

Environmental Compliance

All product is RoHS and REACH complaint.
