Male
Straight
Crimping
Crimping

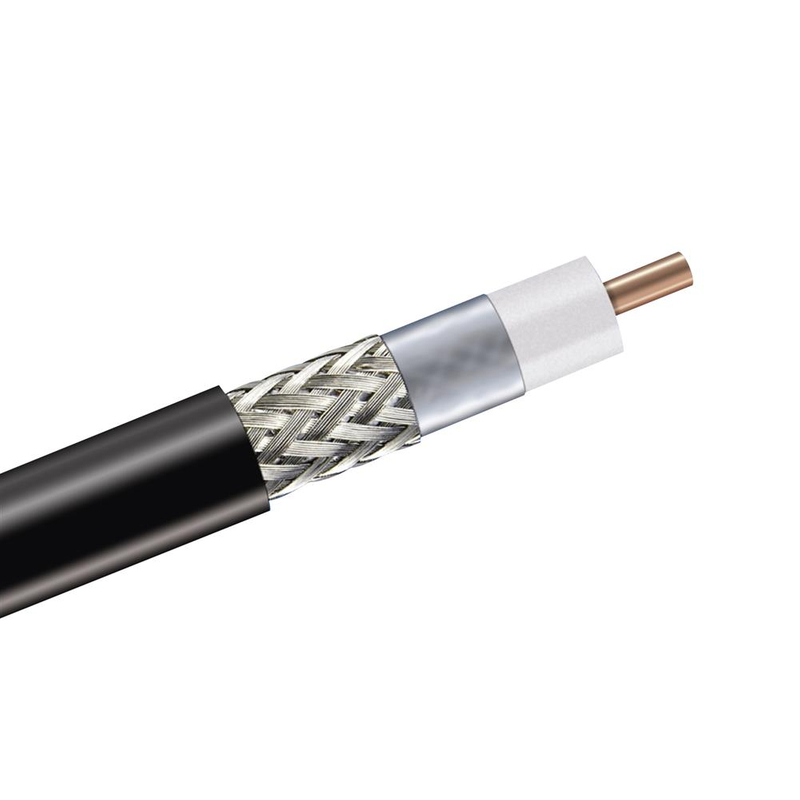

Availability: | |
---|---|
Quantity: | |
In Metric | ||||||||||||
Part Number | Impedance | Velocity | Capacitance (pF per Foot) | Shielding | Conductor OD(mm) | Dielectric OD(mm) | Shield Aluminum OD (mm) | Shiled Tinned copper braid OD (mm) | Jacket OD (mm) | Jacket | Weight KG/M | Bending Moment (mm) |
LMR 100A | 50 Ohms | 66% | 30.8 | >90db | 0.46 | 1.52 | 1.65 | 2.11 | 2.79 | Black PE | 0.014 | 0.014 |
LMR 195 | 50 Ohms | 76% | 26.7 | >90db | 0.94 | 2.79 | 2.95 | 3.53 | 4.95 | Black PE | 0.03 | 0.27 |
LMR 200 | 50 Ohms | 83% | 24.5 | >90db | 1.12 | 2.95 | 3.07 | 3.66 | 4.95 | Black PE | 0.03 | 0.27 |
LMR 240 | 50 Ohms | 84% | 24.2 | >90db | 1.42 | 3.81 | 3.94 | 4.52 | 6.10 | Black PE | 0.05 | 0.34 |
LMR 300 | 50 Ohms | 85% | 23.9 | >90db | 1.78 | 4.83 | 4.98 | 5.72 | 7.62 | Black PE | 0.08 | 0.52 |
LMR 400 | 50 Ohms | 85% | 23.9 | >90db | 2.74 | 7.24 | 7.39 | 8.13 | 10.29 | Black PE | 0.1 | 0.68 |
LMR 500 | 50 Ohms | 86% | 23.6 | >90db | 3.61 | 9.40 | 9.55 | 10.29 | 12.70 | Black PE | 0.14 | 2.37 |
LMR 600 | 50 Ohms | 87% | 23.4 | >90db | 4.47 | 11.56 | 11.71 | 12.45 | 14.99 | Black PE | 0.2 | 3.73 |
LMR 900 | 50 Ohms | 87% | 23.4 | >90db | 6.65 | 17.27 | 17.42 | 18.59 | 22.10 | Black PE | 0.4 | 12.2 |
LMR 1200 | 50 Ohms | 88% | 23.1 | >90db | 8.86 | 23.37 | 23.52 | 24.69 | 30.35 | Black PE | 0.67 | 20.34 |
LMR 1700 | 50 Ohms | 89% | 22.8 | >90db | 13.39 | 34.29 | 34.44 | 35.61 | 42.42 | Black PE | 1.1 | 54.23 |
In Inch | ||||||||||||
Part Number | Impedance | Velocity | Capacitance (pF per Foot) | Shielding | Conductor OD(ft) | Dielectric OD(ft) | Shield Aluminum OD (ft) | Shiled Tinned copper braid OD (ft) | Jacket OD (ft) | Jacket | Weight(lbs/foot) | Bending Moment (ft) |
LMR 100A | 50 Ohms | 66% | 30.8 | >90db | 0.018 | 0.06 | 0.065 | 0.083 | 0.110 | Black PE | 0.009 | 0.25 |
LMR 195 | 50 Ohms | 76% | 26.7 | >90db | 0.037 | 0.11 | 0.116 | 0.139 | 0.195 | Black PE | 0.021 | 0.5 |
LMR 200 | 50 Ohms | 83% | 24.5 | >90db | 0.044 | 0.116 | 0.121 | 0.144 | 0.195 | Black PE | 0.022 | 0.5 |
LMR 240 | 50 Ohms | 84% | 24.2 | >90db | 0.056 | 0.15 | 0.155 | 0.178 | 0.240 | Black PE | 0.034 | 0.75 |
LMR 300 | 50 Ohms | 85% | 23.9 | >90db | 0.07 | 0.19 | 0.196 | 0.225 | 0.300 | Black PE | 0.055 | 0.875 |
LMR 400 | 50 Ohms | 85% | 23.9 | >90db | 0.108 | 0.285 | 0.291 | 0.32 | 0.405 | Black PE | 0.068 | 1 |
LMR 500 | 50 Ohms | 86% | 23.6 | >90db | 0.142 | 0.37 | 0.376 | 0.405 | 0.500 | Black PE | 0.097 | 1.25 |
LMR 600 | 50 Ohms | 87% | 23.4 | >90db | 0.176 | 0.455 | 0.461 | 0.49 | 0.590 | Black PE | 0.131 | 1.5 |
LMR 900 | 50 Ohms | 87% | 23.4 | >90db | 0.262 | 0.68 | 0.686 | 0.732 | 0.870 | Black PE | 0.266 | 3 |
LMR 1200 | 50 Ohms | 88% | 23.1 | >90db | 0.349 | 0.92 | 0.926 | 0.972 | 1.195 | Black PE | 0.448 | 6.5 |
LMR 1700 | 50 Ohms | 89% | 22.8 | >90db | 0.527 | 1.35 | 1.356 | 1.402 | 1.670 | Black PE | 0.736 | 13.5 |
In Metric | ||||||||||||
Part Number | Impedance | Velocity | Capacitance (pF per Foot) | Shielding | Conductor OD(mm) | Dielectric OD(mm) | Shield Aluminum OD (mm) | Shiled Tinned copper braid OD (mm) | Jacket OD (mm) | Jacket | Weight KG/M | Bending Moment (mm) |
LMR 100A | 50 Ohms | 66% | 30.8 | >90db | 0.46 | 1.52 | 1.65 | 2.11 | 2.79 | Black PE | 0.014 | 0.014 |
LMR 195 | 50 Ohms | 76% | 26.7 | >90db | 0.94 | 2.79 | 2.95 | 3.53 | 4.95 | Black PE | 0.03 | 0.27 |
LMR 200 | 50 Ohms | 83% | 24.5 | >90db | 1.12 | 2.95 | 3.07 | 3.66 | 4.95 | Black PE | 0.03 | 0.27 |
LMR 240 | 50 Ohms | 84% | 24.2 | >90db | 1.42 | 3.81 | 3.94 | 4.52 | 6.10 | Black PE | 0.05 | 0.34 |
LMR 300 | 50 Ohms | 85% | 23.9 | >90db | 1.78 | 4.83 | 4.98 | 5.72 | 7.62 | Black PE | 0.08 | 0.52 |
LMR 400 | 50 Ohms | 85% | 23.9 | >90db | 2.74 | 7.24 | 7.39 | 8.13 | 10.29 | Black PE | 0.1 | 0.68 |
LMR 500 | 50 Ohms | 86% | 23.6 | >90db | 3.61 | 9.40 | 9.55 | 10.29 | 12.70 | Black PE | 0.14 | 2.37 |
LMR 600 | 50 Ohms | 87% | 23.4 | >90db | 4.47 | 11.56 | 11.71 | 12.45 | 14.99 | Black PE | 0.2 | 3.73 |
LMR 900 | 50 Ohms | 87% | 23.4 | >90db | 6.65 | 17.27 | 17.42 | 18.59 | 22.10 | Black PE | 0.4 | 12.2 |
LMR 1200 | 50 Ohms | 88% | 23.1 | >90db | 8.86 | 23.37 | 23.52 | 24.69 | 30.35 | Black PE | 0.67 | 20.34 |
LMR 1700 | 50 Ohms | 89% | 22.8 | >90db | 13.39 | 34.29 | 34.44 | 35.61 | 42.42 | Black PE | 1.1 | 54.23 |
In Inch | ||||||||||||
Part Number | Impedance | Velocity | Capacitance (pF per Foot) | Shielding | Conductor OD(ft) | Dielectric OD(ft) | Shield Aluminum OD (ft) | Shiled Tinned copper braid OD (ft) | Jacket OD (ft) | Jacket | Weight(lbs/foot) | Bending Moment (ft) |
LMR 100A | 50 Ohms | 66% | 30.8 | >90db | 0.018 | 0.06 | 0.065 | 0.083 | 0.110 | Black PE | 0.009 | 0.25 |
LMR 195 | 50 Ohms | 76% | 26.7 | >90db | 0.037 | 0.11 | 0.116 | 0.139 | 0.195 | Black PE | 0.021 | 0.5 |
LMR 200 | 50 Ohms | 83% | 24.5 | >90db | 0.044 | 0.116 | 0.121 | 0.144 | 0.195 | Black PE | 0.022 | 0.5 |
LMR 240 | 50 Ohms | 84% | 24.2 | >90db | 0.056 | 0.15 | 0.155 | 0.178 | 0.240 | Black PE | 0.034 | 0.75 |
LMR 300 | 50 Ohms | 85% | 23.9 | >90db | 0.07 | 0.19 | 0.196 | 0.225 | 0.300 | Black PE | 0.055 | 0.875 |
LMR 400 | 50 Ohms | 85% | 23.9 | >90db | 0.108 | 0.285 | 0.291 | 0.32 | 0.405 | Black PE | 0.068 | 1 |
LMR 500 | 50 Ohms | 86% | 23.6 | >90db | 0.142 | 0.37 | 0.376 | 0.405 | 0.500 | Black PE | 0.097 | 1.25 |
LMR 600 | 50 Ohms | 87% | 23.4 | >90db | 0.176 | 0.455 | 0.461 | 0.49 | 0.590 | Black PE | 0.131 | 1.5 |
LMR 900 | 50 Ohms | 87% | 23.4 | >90db | 0.262 | 0.68 | 0.686 | 0.732 | 0.870 | Black PE | 0.266 | 3 |
LMR 1200 | 50 Ohms | 88% | 23.1 | >90db | 0.349 | 0.92 | 0.926 | 0.972 | 1.195 | Black PE | 0.448 | 6.5 |
LMR 1700 | 50 Ohms | 89% | 22.8 | >90db | 0.527 | 1.35 | 1.356 | 1.402 | 1.670 | Black PE | 0.736 | 13.5 |
