1.0/2.3 Connector Plug Right Angle Crimping For ST212 Coaxial Cable
You are here: Home » Products » RF Connector » 1.0/2.3 RF Connector » 1.0/2.3 Connector Plug Right Angle Crimping For ST212 Coaxial Cable
Share to:

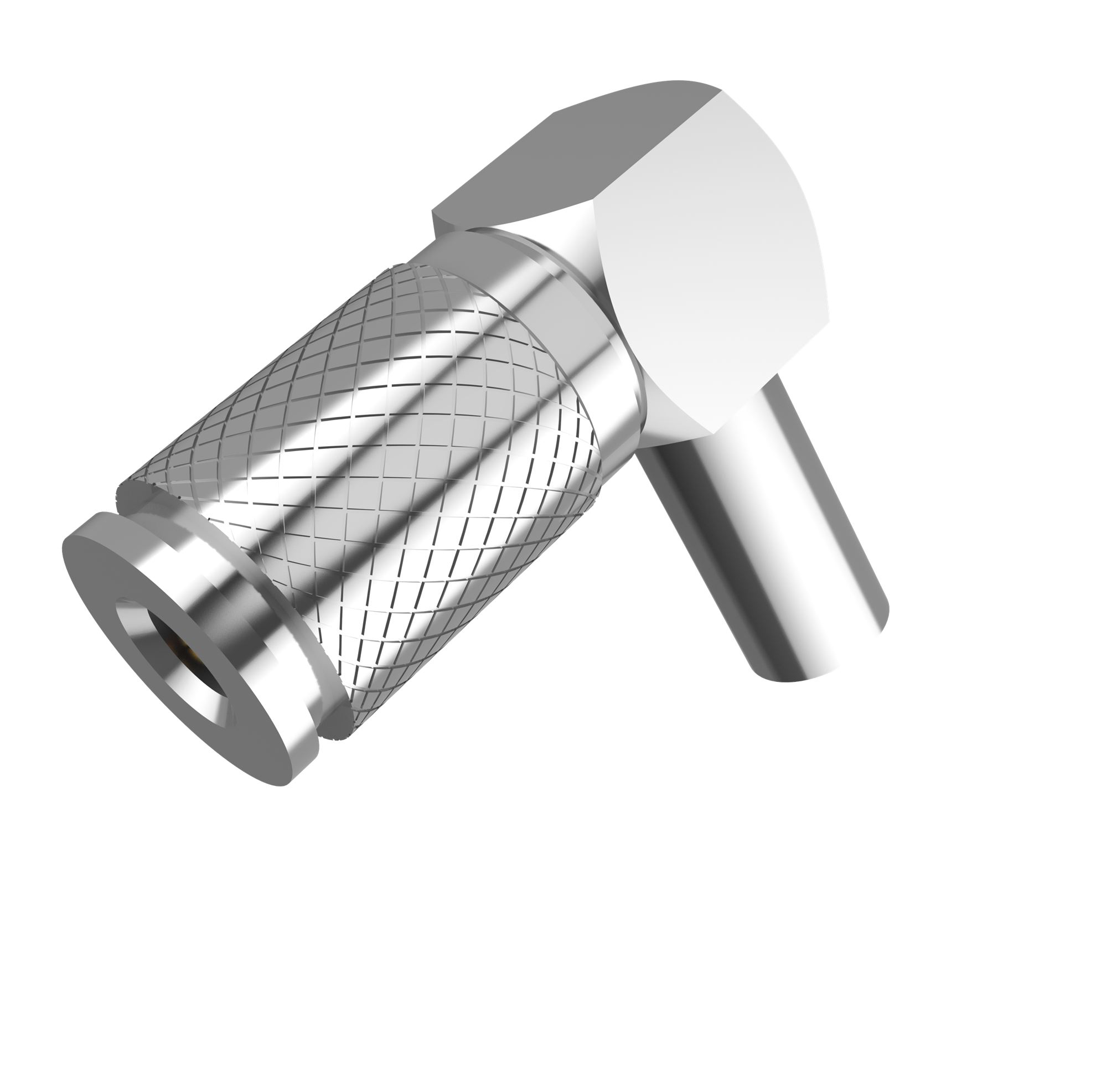

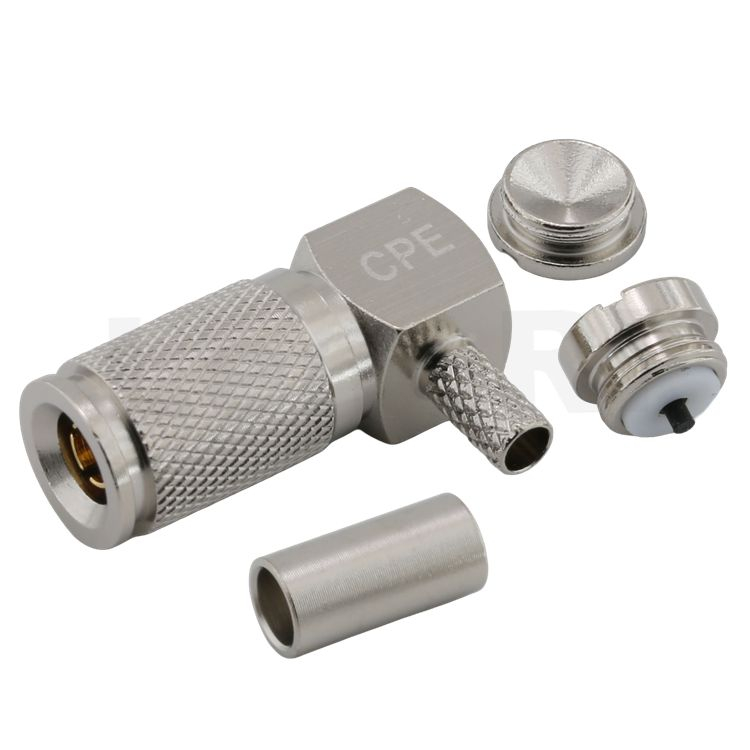

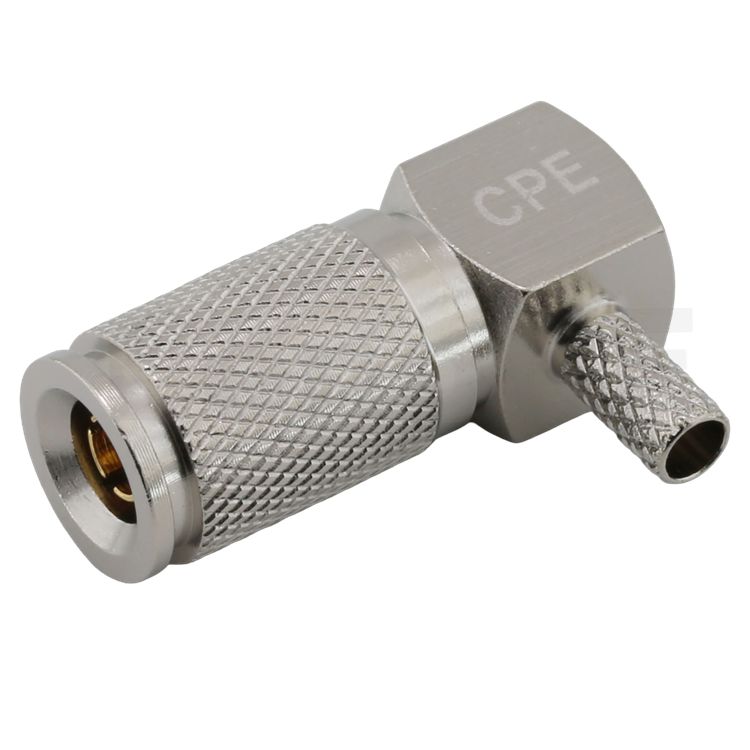

1.0/2.3 Connector Plug Right Angle Crimping For ST212 Coaxial Cable

The 1.0-2.3 connector series was initially released in the 1990s by the European telecommunications sector. The compact size facilitates tighter connection density, making this interface suited for applications with limited space.
DIN 1.0-2.3 connector are supplied in 50 ohm and 75 ohm variants with a maximum frequency of 10 GHz and 4 GHz, respectively. These performance requirements allow high-density and high data rates digital broadcast formats such as Audio, Video and other activities. The DIN 1.0-2.3 connector series corresponds with international standards DIN 41626, DIN 47297, and NFC 93-571.
  • 22-693
  • 80-7160-104-06
  • Male
  • Right angle
  • Crimping
  • Crimping
  • ST212
  • 80-7160-104-06.pdf
  • 80-7160-104-06.stp
Availability:
Quantity:
Body PlatingNickel
Body MaterialBrass
Cable Type ST212
Contact PlatingGold
Contact MaterialBeryllium copper
Contact TerminationSoldering/Crimping
Coupling MechanismSnap on
HS Code8536909000
Frequency (Max GHz)3
GenderPlug
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Size CategoryMiniature
Temperature Range-65   -165 °C
Mating Cycles500   Min
Interface SpecificationMIL-STD-348



FAQ

1. Sample delivery time

Regular model need 15 days, some complex connectors need 25 days


2. Sample Fee

The most of RF connector is CNC parts,don't need to make mold.

Through, each part need be tuning the CNC, usually one sample need 200 USD cost.

The fee will return after 5K bulk order


3. The quarantee

Brass RF connector is one year, the stainless steel connector is three year.

Also, depend on the material of contact, Beryllium contact have better lifetime.


4. ROHS&REACH

Our product fully compliance with ROHS&REACH.


5.Does LENORF offer military class product

Yes. We honor to offer military product with super stable quality.
