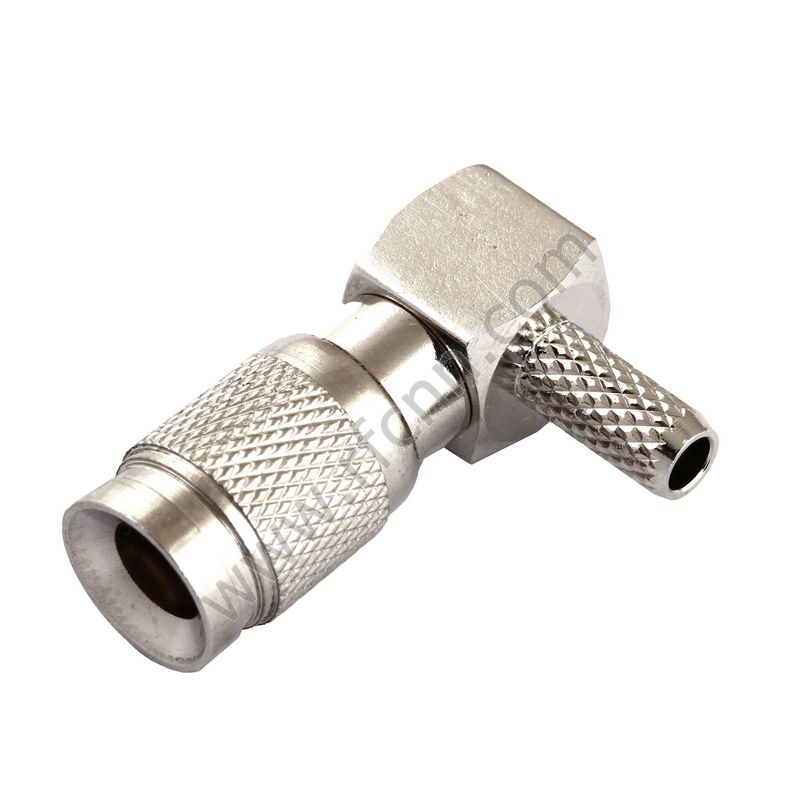

1.0/2.3 Connectors Male Right Angle Crimping For BT3002 Cable

The 1.0-2.3 connection series was first used in the 1990s by the European telecommunications industry. This interface is appropriate for applications that require a little amount of space due to its small size.
With maximum frequencies of 10 GHz and 4 GHz, respectively, DIN 1.0-2.3 connections are offered in 50 ohm and 75 ohm versions. High-density and high-data-rate digital broadcast formats such as audio, video, and other activities are possible thanks to these performance criteria. International standards DIN 41626, DIN 47297, and NFC 93-571 are all met by the DIN 1.0-2.3 connection family.
  • 1023-125-3002

  • Male

  • Right angle

  • Crimping

  • Crimping

  • BT3002

Availability:
Quantity:
Body   PlatingNickel
Body MaterialBrass
Cable TypeBT3002
Contact PlatingGold
Contact MaterialBeryllium   copper
Contact TerminationCrimping
Coupling MechanismPush-Pull
HS Code8536909000
Frequency (Max GHz)10   GHz 50Ohms
    4GHz 75 Ohms
GenderPlug
Impedance (Ohms)75
Insulator MaterialPTFE
OrientationRight Angle
Size CategoryMiniature
Temperature Range-65   -165 °C
Termination StyleCable   Crimping
Mating Cycles500   Min
Interface SpecificationDIN   41626, 47297, NFC 93-571
