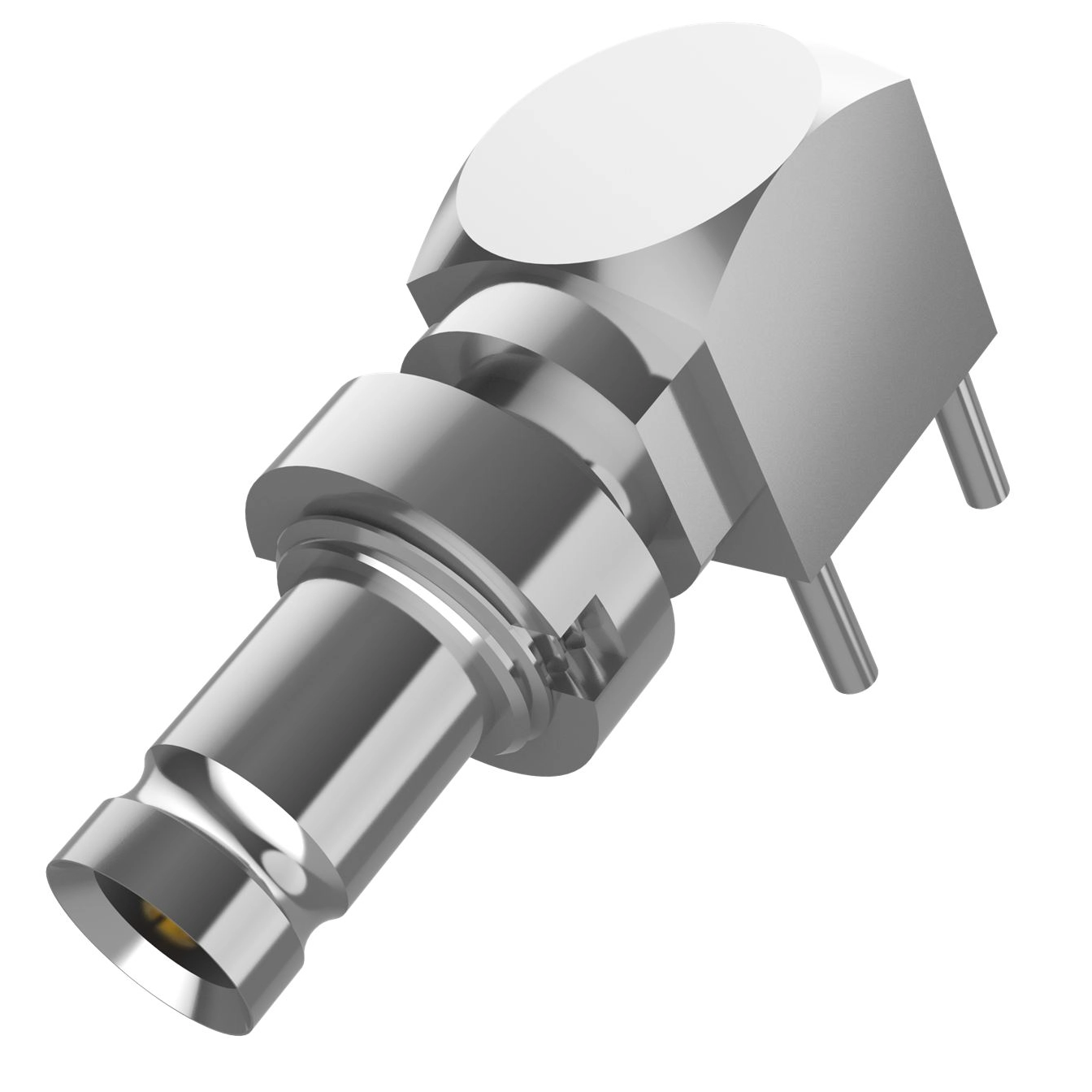

1.0/2.3 RF Connector Jack Right Angle For PCB

The European telecommunications sector introduced the 1.0-2.3 connector series in the 1990s. Because of its tiny size, this interface is ideal for applications with limited space.
DIN 1.0-2.3 connectors are available in 50 ohm and 75 ohm variants, with maximum frequencies of 10 GHz and 4 GHz, respectively. These performance requirements allow high-density and high-data-rate digital broadcast formats such as audio, video, and other activities. The DIN 1.0-2.3 connector series complies with international standards DIN 41626, DIN 47297, and NFC 93-571.
  • 22-607

  • 80-7061-011-01

  • Female

  • Straight

  • PCB Hole through

  • Soldering

  • N/A

  • 80-7061-011-01.pdf

  • 80-7061-011-01.stp

Availability:
Quantity:

Overview

The 1.0/2.3 RF connector is a Gold plated contacts for low resistance ,miniature-size, push-pull RF coaxial connector designed for applications such as RF/microwave test benches and calibration equipment,TV and radio transmission systems, as well as network analyzers, spectrum analyzers, and oscilloscopes, requiring reliable performance up to 10 GHz (50 OHMS system) and 2 GHz (75 OHMS). The DIN 1.0-2.3 connector complies with DIN 41626, DIN 47297, and NFC 93-571 international specifications.


Features

  • Push-pull / self-lock Coupling mechanism

  • Frequency Range DC to ~10 GHz (50 OHMS) / up to 2GHz (75 OHMS)

  • Impedance Available: 50   (RF/microwave systems) and 75   (broadcast/video applications).

  • Ideal for high vibration applications

  • Durability >500 times

  • Space saving compact design


Applications


  • Telecom equipment

  • Broadcast

  • Instrumentation

  • Test and measurement equipment

  • RF/microwave test benches and calibration equipment

  • TV and radio transmission systems

  • network analyzers, spectrum analyzers, and oscilloscopes


Specification


Body   Plating

Gold

Body Material

Brass

Cable Type

N/A

Contact Plating

Gold

Contact Material

Phosphor bronze

Contact Termination

Crimp

Coupling Mechanism

Push-pull

HS Code

8536909000

Frequency (Max GHz)

7

Gender

Female

Impedance (Ohms)

50

Insulator Material

PTFE

Orientation

Straight

Size Category

Miniature

Temperature Range

-65 to 165 ° C

Thread Direction

Standard

Mating Cycles

500   Min

Interface Specification

DIN 41626, 47297, NFC 93-571



FAQ

Sample Delivery Time

Regular models require 15 days, while some complex connectors require 25 days.


Sample Fee

Most RF connectors are CNC-machined parts and do not require mold-making.

However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.

This fee will be refunded after a 5K bulk order.


Guarantee


Brass RF connectors come with a one-year warranty.

Stainless steel connectors come with a three-year warranty.

The lifespan also depends on the contact material  beryllium contacts offer better durability.


ROHS & REACH Compliance

Our products fully comply with ROHS & REACH regulations.

Does LENORF Offer Military-Grade Products?

Yes. We are honored to provide military-grade products with exceptionally stable quality.


MOQ (Minimum Order Quantity)

Regular connectors: 500 PCS

Adapters: 100 PCS

Military connectors: 100 PCS


Materials

Common materials include:

Body: Brass, stainless steel

Insulator: PTFE, PEEK

Contacts: Brass, phosphor bronze, beryllium copper

Other: Aluminum, titanium alloy


What is impedance, and why is 50 Ω or 75 Ω important?

Impedance matching prevents signal reflection and power loss. 50 Ω: Standard for RF communication, test equipment, aerospace, defense. 75 Ω: Standard for broadcast, video, and cable TV applications.


What materials are RF connectors made of?

Body: Brass, stainless steel, or beryllium copper (with nickel, gold, or silver plating). Insulator: PTFE, PE, or advanced low-loss dielectrics. Contacts: Gold-plated brass or beryllium copper for low resistance and durability.


Are RF connectors weatherproof?

Some RF connectors are designed with gaskets and sealing (e.g., N-type, 4.3-10) for outdoor telecom, antennas, and harsh environments. Indoor lab connectors (e.g., SMA, BNC) are usually not weatherproof unless specified.


What’s the difference between male and female RF connectors?

Male: Has a center pin and usually an outer thread or bayonet. Female: Has a receptacle (socket) for the center pin and matching thread. Some connectors (like SMA) can be confusing because “reverse polarity” (RP-SMA) swaps pin/socket configuration.
