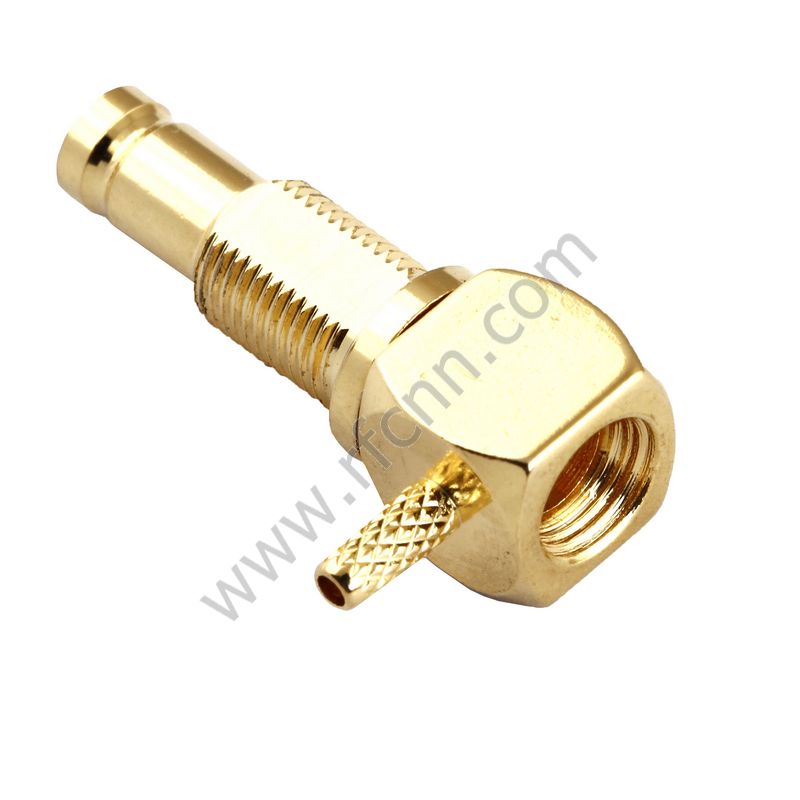

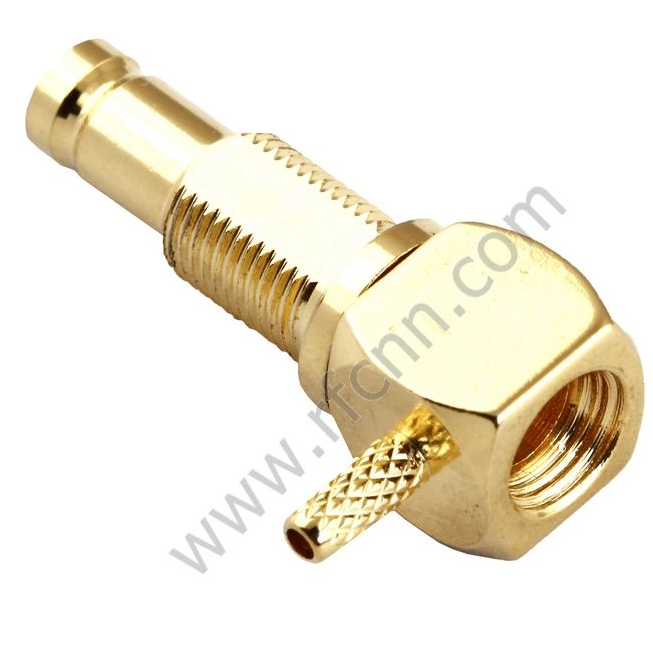

1.0/2.3 Connectors Male Right Angle Crimping For 1.13 Microcable

In the 1990s, the European telecoms sector created the 1.0-2.3 connection family. This interface is appropriate for applications with limited space because of its small size.
The 50 ohm and 75 ohm DIN 1.0-2.3 connections have maximum frequencies of 10 GHz and 4 GHz, respectively. High-density and high-data-rate digital broadcast formats, such as audio, video, and other activities, are enabled by these performance criteria. DIN 41626, DIN 47297, and NFC 93-571 are all international standards that the DIN 1.0-2.3 connection family conforms with.
  • 1023-121-113

  • Male

  • Right angle

  • Crimping

  • Crimping

  • 1.13 microcoaxial cable

Body   PlatingNickel
Body MaterialBrass
Cable Type1.13
Contact PlatingGold
Contact MaterialBeryllium   copper
Contact TerminationCrimping
Coupling MechanismPush-Pull
HS Code8536909000
Frequency (Max GHz)10   GHz 50Ohms
    4GHz 75 Ohms
Impedance (Ohms)75
Insulator MaterialPTFE
Size CategoryMiniature
Temperature Range-65   -165 °C
Termination StyleCable   Crimping
Mating Cycles500   Min
Interface SpecificationDIN   41626, 47297, NFC 93-571
