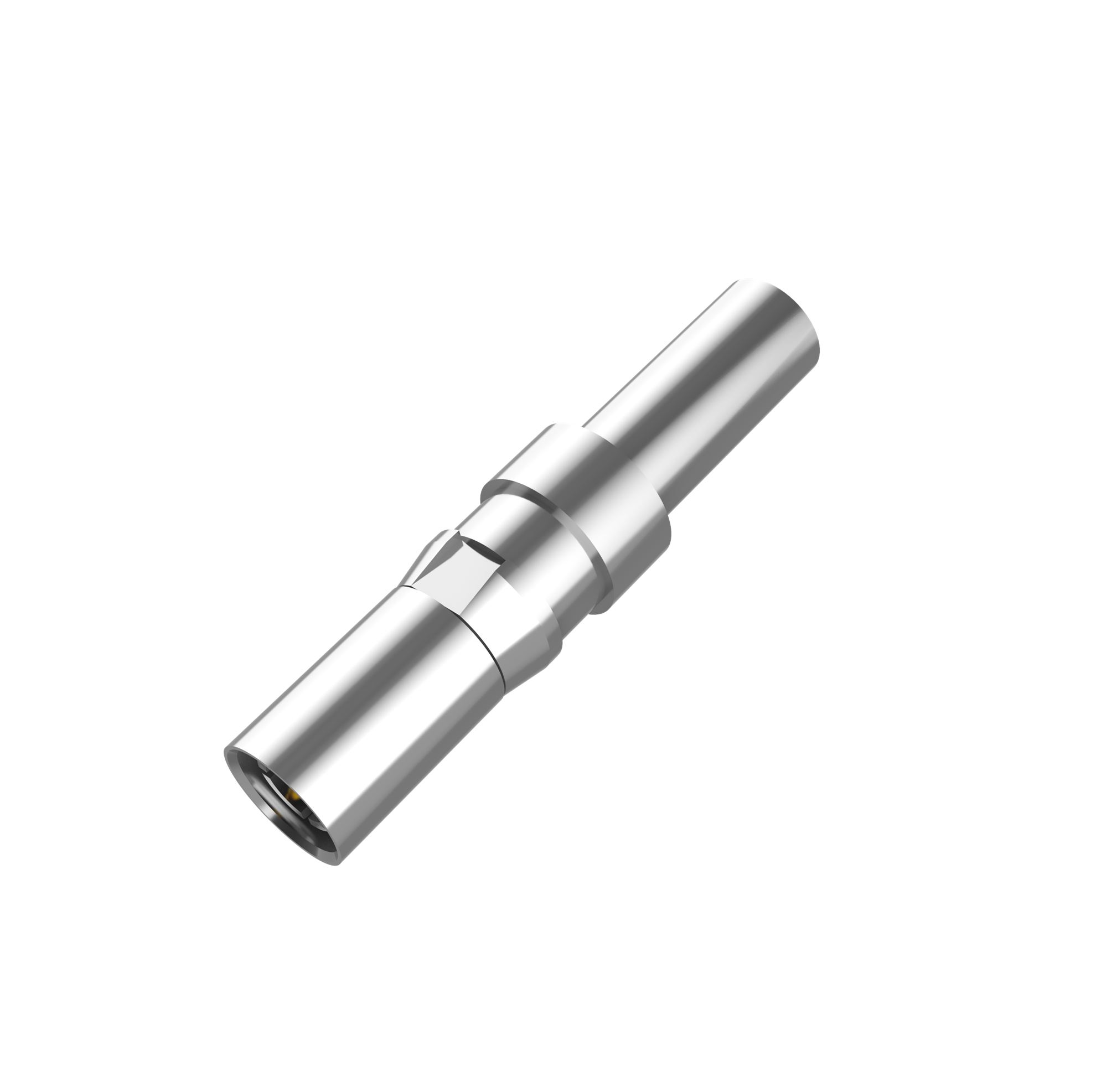

DIN41626 1.0/2.3 Connector Plug Straight Crimping For RG316 Coaxial Cable

The European telecommunications sector introduced the 1.0-2.3 connector series in the 1990s. Because of its tiny size, this interface is ideal for applications with limited space.
DIN 1.0-2.3 connectors are available in 50 ohm and 75 ohm variants, with maximum frequencies of 10 GHz and 4 GHz, respectively. These performance requirements allow high-density and high-data-rate digital broadcast formats such as audio, video, and other activities. The DIN 1.0-2.3 connector series complies with international standards DIN 41626, DIN 47297, and NFC 93-571.

  • 22-771

  • 80-5161-115-02

  • Male

  • Straight

  • Crimping

  • Crimping

  • RG316

  • 80-5161-115-02.pdf

  • 80-5161-115-02.stp

Availability:
Quantity:
Inquire Add to Basket

Body PlatingNickel
Body MaterialBrass
Cable Type RG316
Contact PlatingGold
Contact MaterialBeryllium copper
Contact TerminationSoldering/Crimping
Coupling MechanismSnap on
HS Code8536909000
Frequency (Max GHz)3
GenderPlug
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Size CategoryMiniature
Temperature Range-65   -165 °C
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
