Product Overview

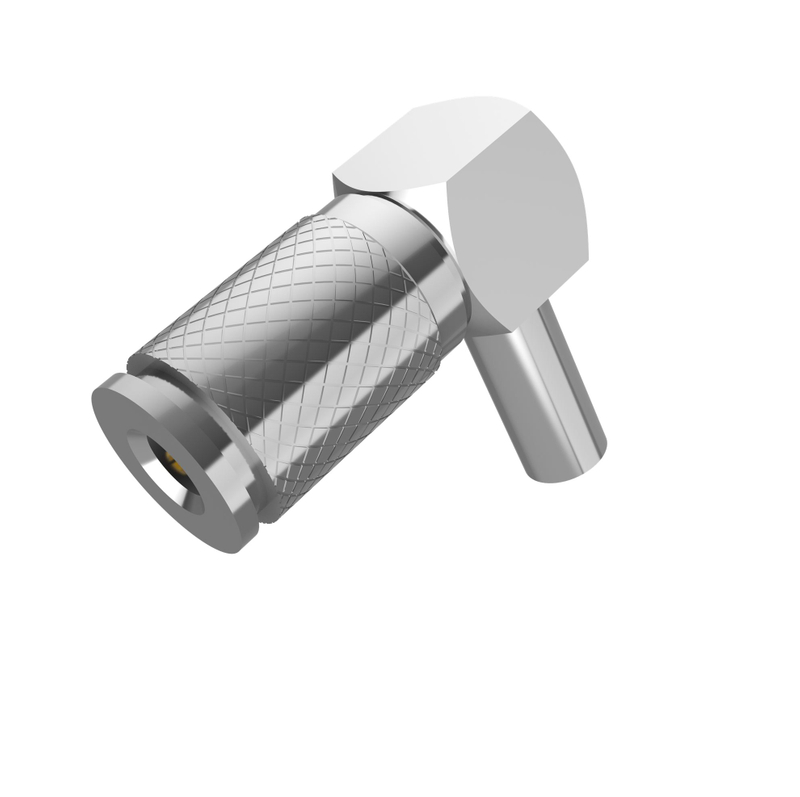

Originated from the European telecommunications sector in the 1990s, the 1.0/2.3 male right angle crimp RF connector for 2.6 coaxial cable is a compact, high-reliability push-pull RF coaxial connector engineered for space-constrained equipment integration and rugged industrial environments. This DIN 1.0-2.3 compliant male plug features gold-plated contacts for ultra-low contact resistance, optimized for perfect compatibility with 2.6mm coaxial cables, delivering stable 50 ohm RF performance up to 6 GHz.
Designed with a 90-degree right angle male interface and full crimp termination for body and contact, this 2.6mm coaxial cable crimp RF plug solves critical wiring challenges in tight equipment enclosures, reducing cable bend stress and enabling cleaner, more compact internal routing. Its push-pull self-lock coupling mechanism guarantees secure, tool-free mating in high-vibration scenarios, with a minimum of 500 mating cycles for extended service life. Fully compliant with DIN 41626, DIN 47297, NFC 93-571 standards, and RoHS & REACH regulations, it meets the strict procurement requirements of global business industrial and telecom clients.
![80-7160-104-02.265]( "80-7160-104-02.265")
Key Technical Specifications & Performance
Parameter | Core Specification |
Model Number | 22-628 |
Part Number | 80-7160-104-02 |
Gender & Orientation | Male, Right Angle (90°) |
Compatible Cable | 2.6mm Coaxial Cable |
Nominal Impedance | 50 Ohm |
Max Operating Frequency | 6 GHz |
Coupling Mechanism | Push-pull / Self-lock |
Body | Brass with Nickel Plating |
Contact | Brass with Gold Plating |
Insulator | PTFE |
Min Mating Cycles | 500 Times |
Operating Temperature | -65℃ to 165℃ |
Compliance | RoHS & REACH, DIN 41626, DIN 47297, NFC 93-571 |
HS Code | 8536909000 |
Industry Applications
Compact Telecom & Network Equipment Integration
This DIN 1.0-2.3 right angle male RF connector is purpose-built for tight-enclosure telecom and network hardware, including rack-mounted routers, switches, compact base stations, and in-building wireless access points, where straight connectors cannot fit.
Automotive & Industrial IoT Connectivity
Its right-angle design and high vibration resistance make it ideal for automotive radar systems, industrial IoT gateways, factory automation equipment, and vehicle-mounted communication devices requiring reliable RF connectivity in dynamic, harsh environments.
Mobile Broadcast & On-Site Production Systems
It supports high-data-rate audio and video transmission for mobile broadcast trucks, on-site production equipment, and outdoor broadcast systems, with a compact form factor that simplifies portable gear integration.
Ruggedized Military & Aerospace Devices
With robust mechanical design and military-grade performance potential, it is suitable for ruggedized communication radios, portable secure comms devices, and aerospace on-board equipment requiring space-saving, shock-resistant RF connectivity.
Why Choose LenoRF
Space-Optimized Design for Tight Enclosures
Our 1.0/2.3 right angle male RF plug is precision-engineered to minimize footprint, solving wiring challenges in compact equipment where straight connectors are unfeasible, reducing cable strain and improving long-term reliability.
Rigorous Quality Control for Rugged Performance
Every connector undergoes full in-house testing for vibration resistance, mating durability, and electrical performance, ensuring consistent signal integrity even in extreme temperature and harsh industrial environments.
Comprehensive Technical Documentation
We provide complete product data sheets and 3D model files (STP format) for all standard models, enabling seamless integration into your equipment design workflow and reducing your R&D cycle time.
Customizable Solutions for Specialized Needs
We offer custom plating, material, and dimensional modifications, with a low MOQ of 100 PCS for custom and military-grade variants, to meet the unique requirements of your specialized projects.
FAQ
What is the key advantage of a right angle RF connector over a straight version?
A right angle design reduces cable bend stress, enables compact routing in tight equipment enclosures, and minimizes overall installation footprint, making it ideal for space-constrained devices.
Can I get 3D models or data sheets for this product?
Yes, we provide free downloadable data sheets and 3D STP model files for this 1.0/2.3 male right angle RF connector to support your design and integration process.
Is this connector suitable for high-vibration industrial environments?
Yes, its push-pull self-lock coupling mechanism is specifically designed to withstand high vibration and shock, ensuring secure mating and uninterrupted signal transmission in dynamic industrial settings.
Do you offer custom plating options for this connector?
Yes, we provide custom plating options including gold, nickel, and silver, along with custom material modifications to meet your project’s specific performance requirements.
