Overview

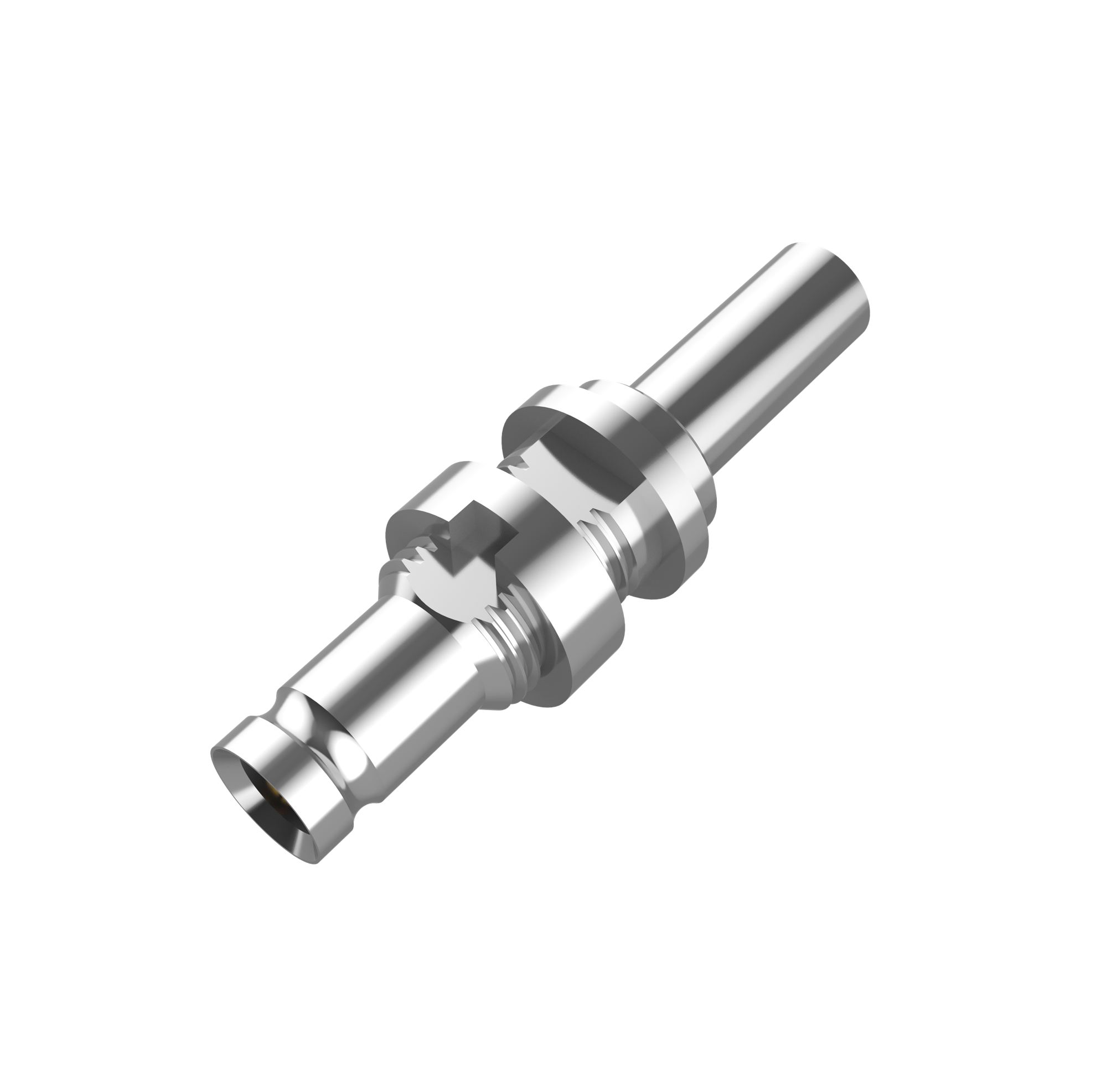

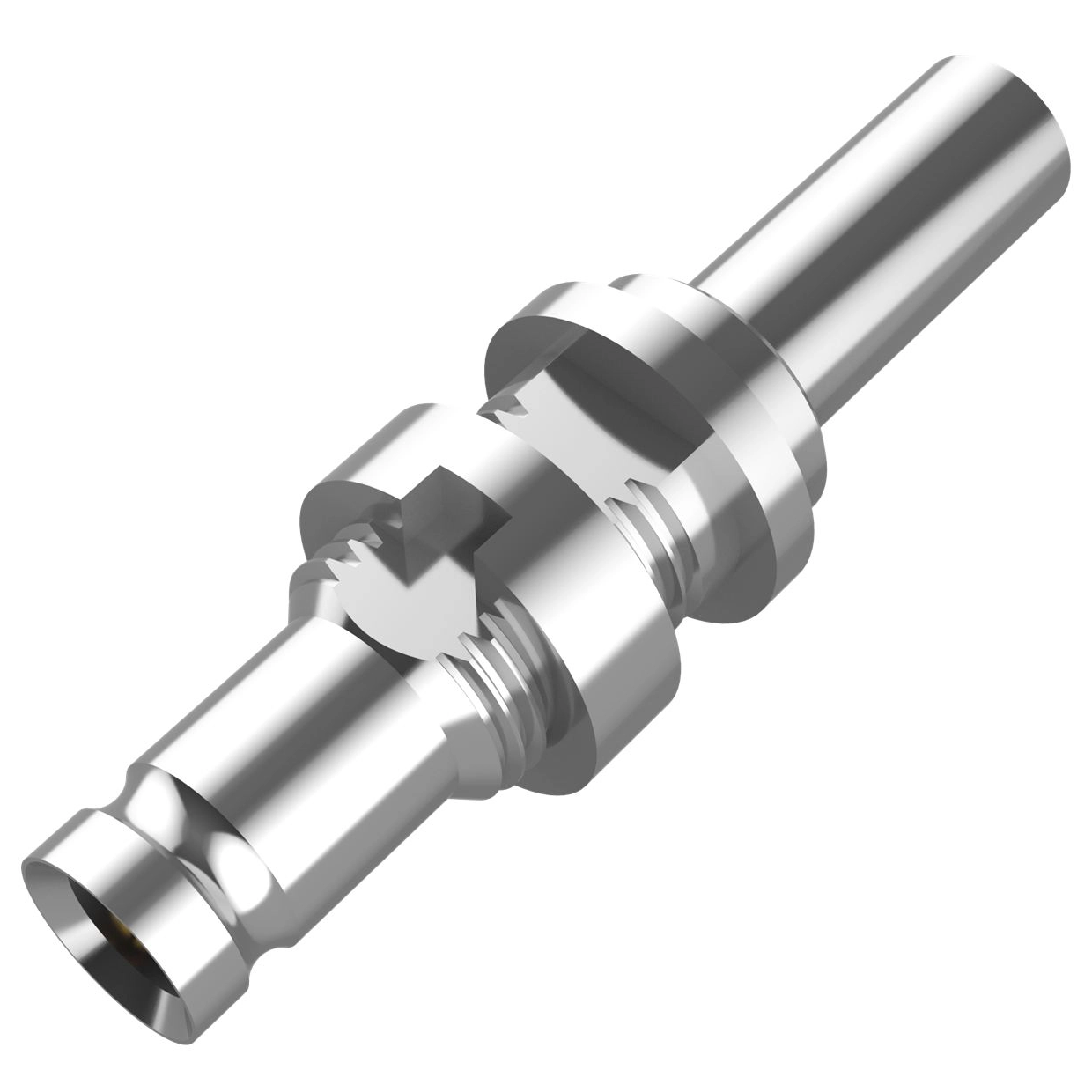

The 1.0/2.3 RF connector is a Durable stainless steel construction ,miniature-size, push-pull RF coaxial connector designed for applications such as RF ablation, telemetry, and diagnostic tools,wireless sensor networks and IoT gateways, as well as patient monitoring systems with wireless connectivity, requiring reliable performance up to 10 GHz (50 OHMS system) and 2 GHz (75 OHMS). The DIN 1.0-2.3 connector complies with DIN 41626, DIN 47297, and NFC 93-571 international specifications.
Features
Push-pull / self-lock Coupling mechanism
Frequency Range DC to ~10 GHz (50 OHMS) / up to 2GHz (75 OHMS)
Impedance Available: 50 (RF/microwave systems) and 75 (broadcast/video applications).
Ideal for high vibration applications
Durability >500 times
Space saving compact design
Applications
Telecom equipment
Broadcast
Instrumentation
Test and measurement equipment
RF ablation, telemetry, and diagnostic tools
wireless sensor networks and IoT gateways
patient monitoring systems with wireless connectivity
Specification
Body Plating | Gold |
Body Material | Brass |
Cable Type | RG174,RG316 |
Contact Plating | Gold |
Contact Material | Phosphor bronze |
Contact Termination | Crimp |
Coupling Mechanism | Push-pull |
HS Code | 8536909000 |
Frequency (Max GHz) | 3 |
Gender | Female |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Size Category | Miniature |
Temperature Range | -65 to 165 ° C |
Thread Direction | Standard |
Mating Cycles | 500 Min |
Interface Specification | DIN 41626, 47297, NFC 93-571 |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What is the difference between RF connectors and coaxial connectors?
They are often used interchangeably. However: Coaxial connector refers to the physical design (shielded cylindrical form). RF connector emphasizes its use in radio-frequency applications. Most RF connectors are coaxial.
What is “reverse polarity” (RP-SMA, RP-TNC)?
Reverse polarity means the gender of the center pin is swapped while keeping the outer body style unchanged. It was introduced to comply with regulatory requirements in Wi-Fi devices and to prevent connection with standard SMA/TNC.
What’s the lifespan of an RF connector?
Connector durability is rated in mating cycles: General-purpose connectors (BNC, SMA): 500 cycles. Precision connectors (2.92 mm, 2.4 mm): 500 cycles or less. Rugged telecom connectors (N, 7/16 DIN): 500 cycles.
Can RF connectors be reused?
Yes, but performance degrades with wear. Precision connectors (used in test equipment) should be handled carefully—damage to threads or pins increases VSWR and insertion loss.
