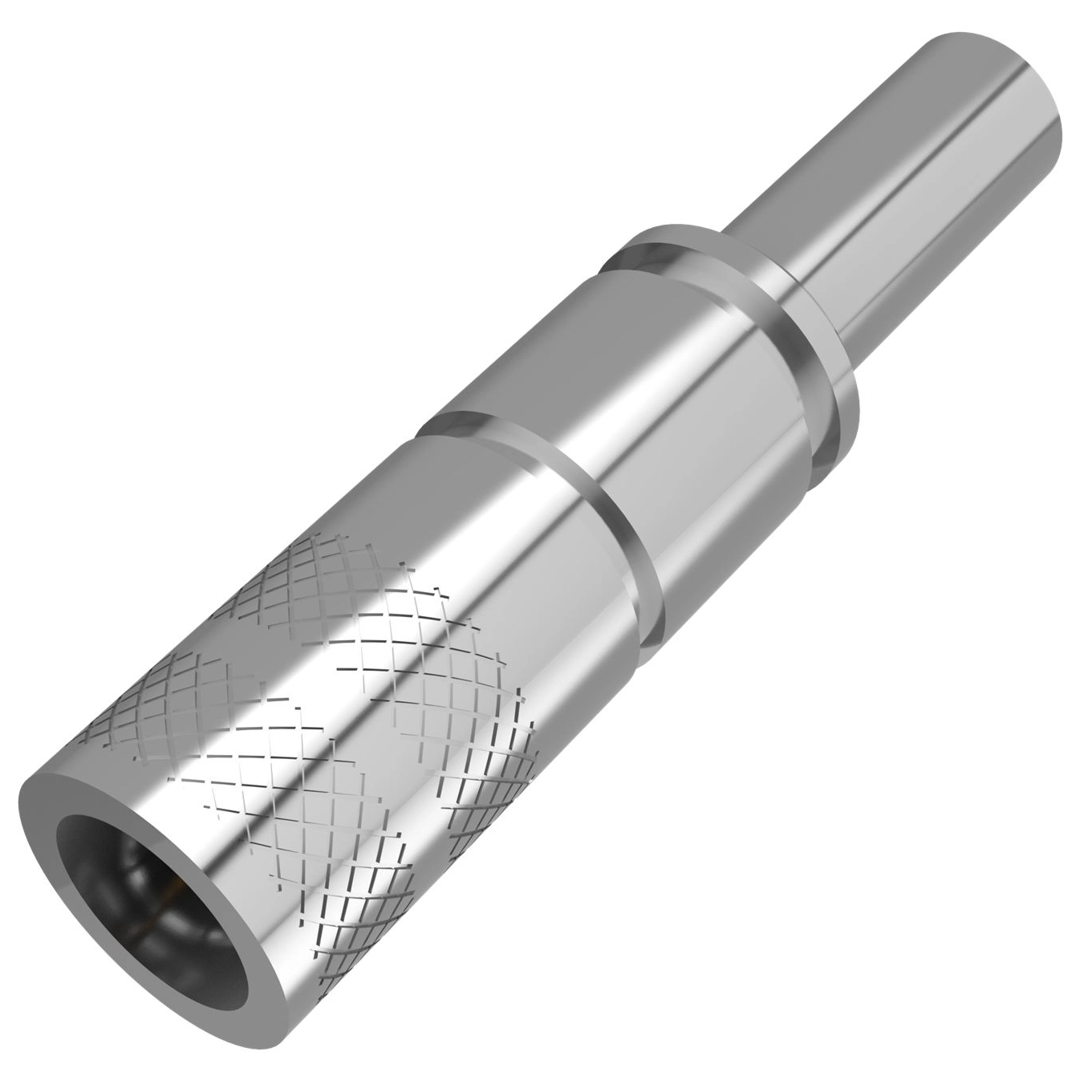

Miniature 1.0/2.3 Connector Plug Straight Crimping For RG179 Coaxial Cable

The 1.0-2.3 connector series was initially released in the 1990s by the European telecommunications sector. The compact size facilitates tighter connection density, making this interface suited for applications with limited space.
DIN 1.0-2.3 connector are supplied in 50 ohm and 75 ohm variants with a maximum frequency of 10 GHz and 4 GHz, respectively. These performance requirements allow high-density and high data rates digital broadcast formats such as Audio, Video and other activities. The DIN 1.0-2.3 connector series corresponds with international standards DIN 41626, DIN 47297, and NFC 93-571.

  • 22-863

  • 80-7161-104-04

  • Male

  • Straight

  • Crimping

  • Crimping

  • RG179

  • 80-7161-104-04.pdf

  • 80-7161-104-04.stp

Availability:
Quantity:
Inquire Add to Basket

Body PlatingNickel
Body MaterialBrass
Cable Type RG179
Contact PlatingGold
Contact MaterialBeryllium copper
Contact TerminationSoldering/Crimping
Coupling MechanismSnap on
HS Code8536909000
Frequency (Max GHz)3
GenderPlug
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Size CategoryMiniature
Temperature Range-65   -165 °C
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
