Overview

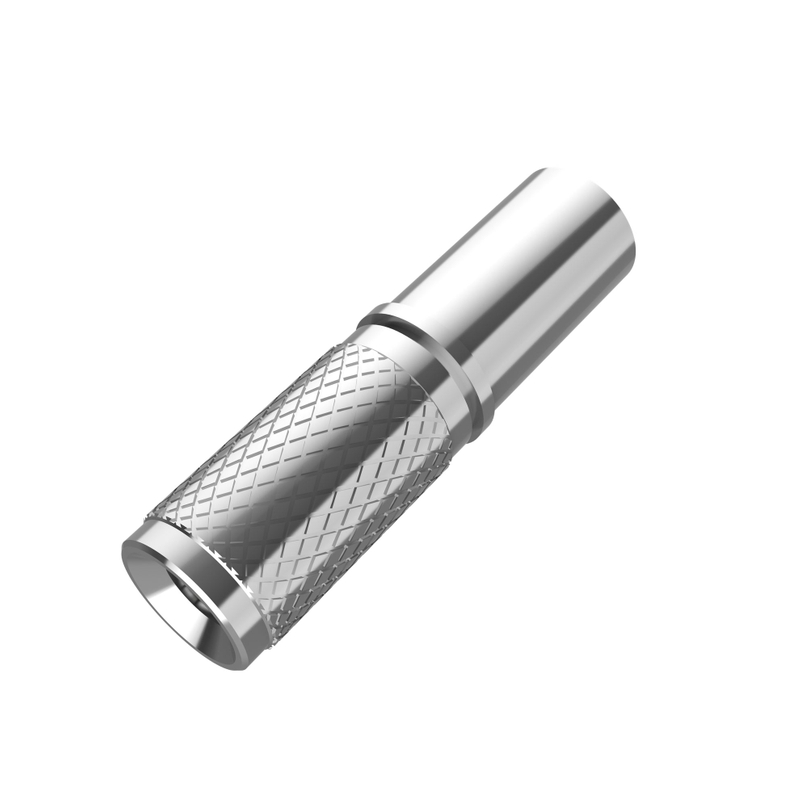

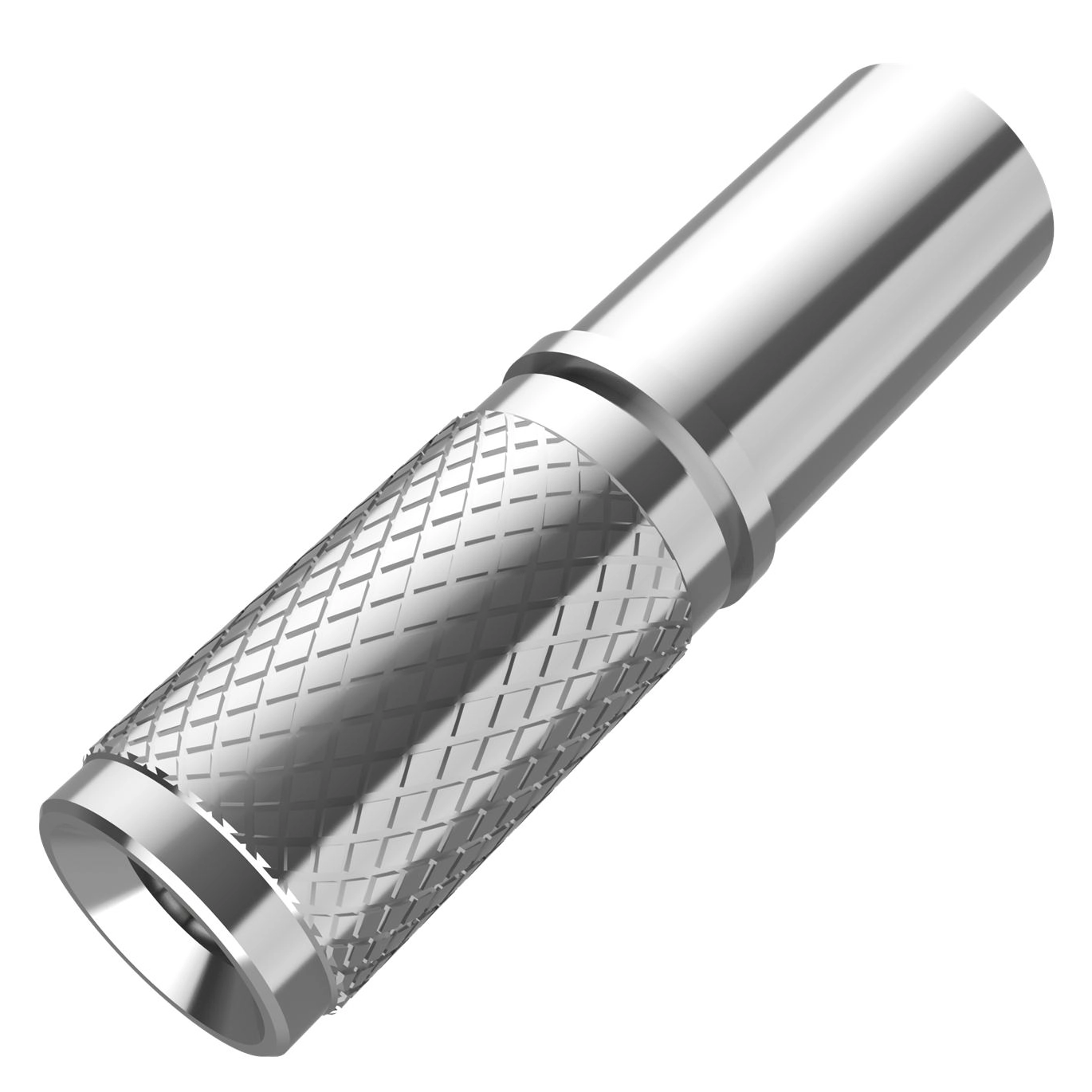

The 1.0/2.3 RF connector is a IP67 waterproof protection ,miniature-size, push-pull RF coaxial connector designed for applications such as studio equipment, satellite uplink/downlink stations,cable TV distribution and headend systems, as well as TV and radio transmission systems, requiring reliable performance up to 10 GHz (50 OHMS system) and 2 GHz (75 OHMS). The DIN 1.0-2.3 connector complies with DIN 41626, DIN 47297, and NFC 93-571 international specifications.
Features
Push-pull / self-lock Coupling mechanism
Frequency Range DC to ~10 GHz (50 OHMS) / up to 2GHz (75 OHMS)
Impedance Available: 50 (RF/microwave systems) and 75 (broadcast/video applications).
Ideal for high vibration applications
Durability >500 times
Space saving compact design
Applications
Telecom equipment
Broadcast
Instrumentation
Test and measurement equipment
studio equipment, satellite uplink/downlink stations
cable TV distribution and headend systems
TV and radio transmission systems
Specification
Body Plating | Nickel |
Body Material | Brass |
Cable Type | LMR240 |
Contact Plating | Gold |
Contact Material | Brass |
Contact Termination | Crimp |
Coupling Mechanism | Push-pull |
HS Code | 8536909000 |
Frequency (Max GHz) | 6 |
Gender | Male |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Size Category | Miniature |
Temperature Range | -65 to 165 ° C |
Thread Direction | Standard |
Mating Cycles | 500 Min |
Interface Specification | DIN 41626, 47297, NFC 93-571 |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
Can RF connectors be reused?
Yes, but performance degrades with wear. Precision connectors (used in test equipment) should be handled carefully—damage to threads or pins increases VSWR and insertion loss.
What’s the difference between threaded, bayonet, and push-on RF connectors?
Threaded (SMA, N, TNC): Secure, vibration-resistant. Bayonet (BNC): Quick connect/disconnect. Push-on (MCX, SMP): Ultra-fast, compact, used in high-density modules.
Are RF connectors interchangeable between brands?
Yes, if they follow the same standard (e.g., SMA-to-SMA). However, tolerances, plating, and dielectric quality vary — mixing low-quality and precision connectors can damage equipment.
How do environmental conditions affect RF connectors?
Temperature extremes can cause expansion/shrinkage and change performance. Humidity and salt spray may cause corrosion (use stainless steel or weatherproof designs). Vibration may loosen bayonet types — use threaded connectors in harsh environments.
