Overview

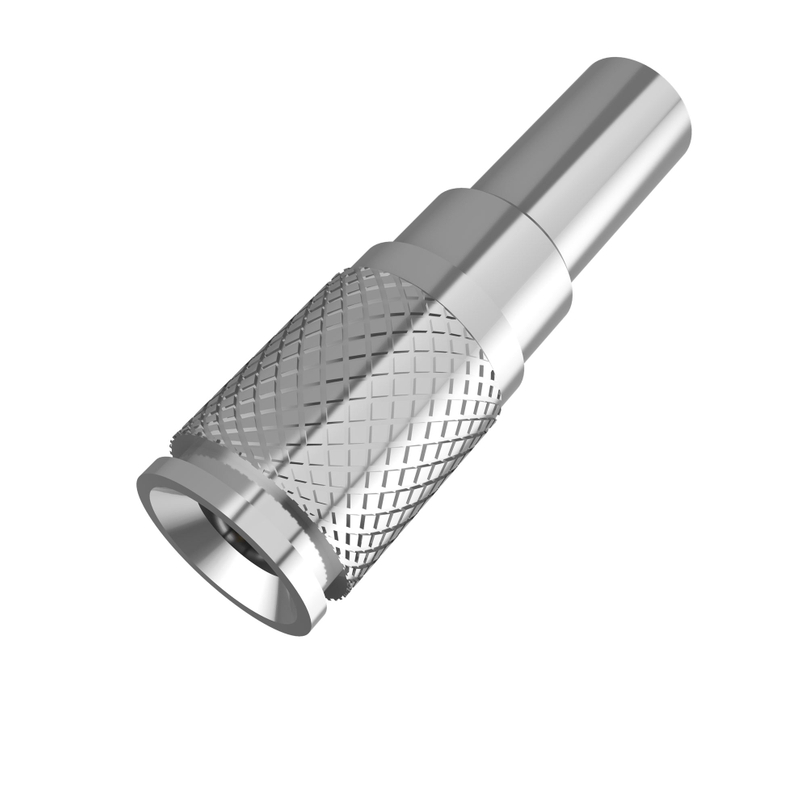

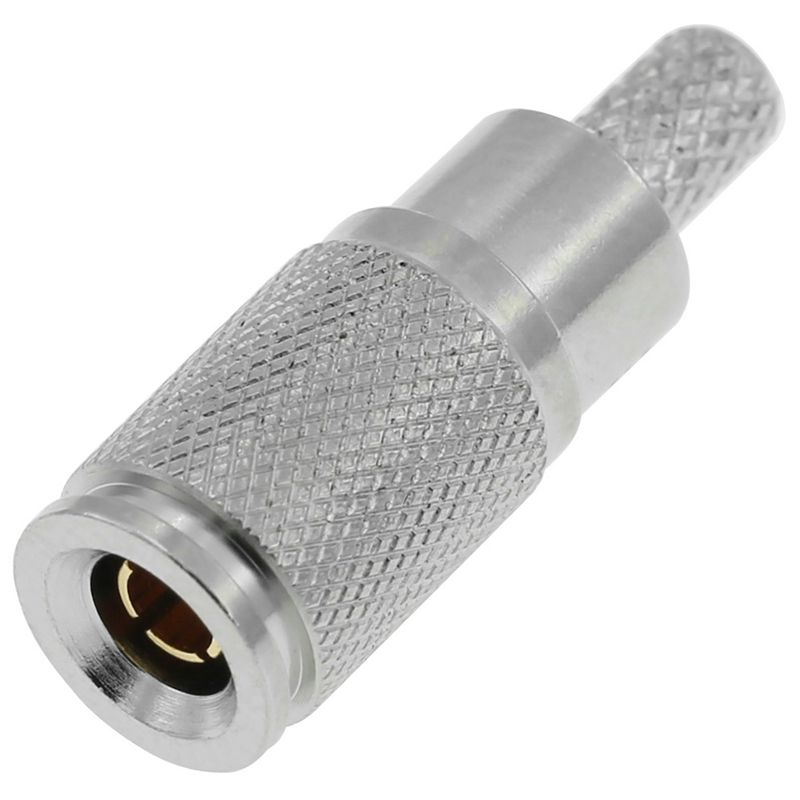

The 1.0/2.3 RF connector is a Optimized for IoT and embedded RF modules ,miniature-size, push-pull RF coaxial connector designed for applications such as TV and radio transmission systems,studio equipment, satellite uplink/downlink stations, as well as RF/microwave test benches and calibration equipment, requiring reliable performance up to 10 GHz (50 OHMS system) and 2 GHz (75 OHMS). The DIN 1.0-2.3 connector complies with DIN 41626, DIN 47297, and NFC 93-571 international specifications.
Features
Push-pull / self-lock Coupling mechanism
Frequency Range DC to ~10 GHz (50 OHMS) / up to 2GHz (75 OHMS)
Impedance Available: 50 (RF/microwave systems) and 75 (broadcast/video applications).
Ideal for high vibration applications
Durability >500 times
Space saving compact design
Applications
Telecom equipment
Broadcast
Instrumentation
Test and measurement equipment
TV and radio transmission systems
studio equipment, satellite uplink/downlink stations
RF/microwave test benches and calibration equipment
Specification
Body Plating | Nickel |
Body Material | Brass |
Cable Type | ST779 |
Contact Plating | Gold |
Contact Material | Phosphor bronze |
Contact Termination | Crimp |
Coupling Mechanism | Push-pull |
HS Code | 8536909000 |
Frequency (Max GHz) | 4 |
Gender | Male |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Size Category | Miniature |
Temperature Range | -65 to 165 ° C |
Thread Direction | Standard |
Mating Cycles | 500 Min |
Interface Specification | DIN 41626, 47297, NFC 93-571 |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What’s the difference between threaded, bayonet, and push-on RF connectors?
Threaded (SMA, N, TNC): Secure, vibration-resistant. Bayonet (BNC): Quick connect/disconnect. Push-on (MCX, SMP): Ultra-fast, compact, used in high-density modules.
Are RF connectors interchangeable between brands?
Yes, if they follow the same standard (e.g., SMA-to-SMA). However, tolerances, plating, and dielectric quality vary — mixing low-quality and precision connectors can damage equipment.
How do environmental conditions affect RF connectors?
Temperature extremes can cause expansion/shrinkage and change performance. Humidity and salt spray may cause corrosion (use stainless steel or weatherproof designs). Vibration may loosen bayonet types — use threaded connectors in harsh environments.
Can RF connectors be adapted from one type to another?
Yes, RF adapters (e.g., SMA-to-N, BNC-to-TNC) exist. But:Each adapter adds insertion loss and possible VSWR increase.Avoid stacking multiple adapters in sensitive applications.
