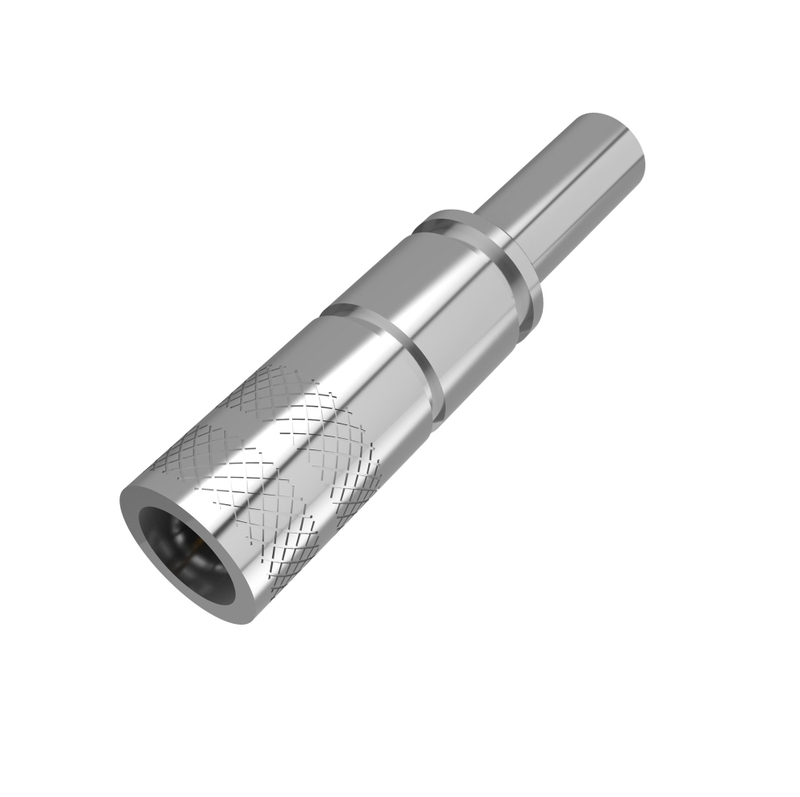

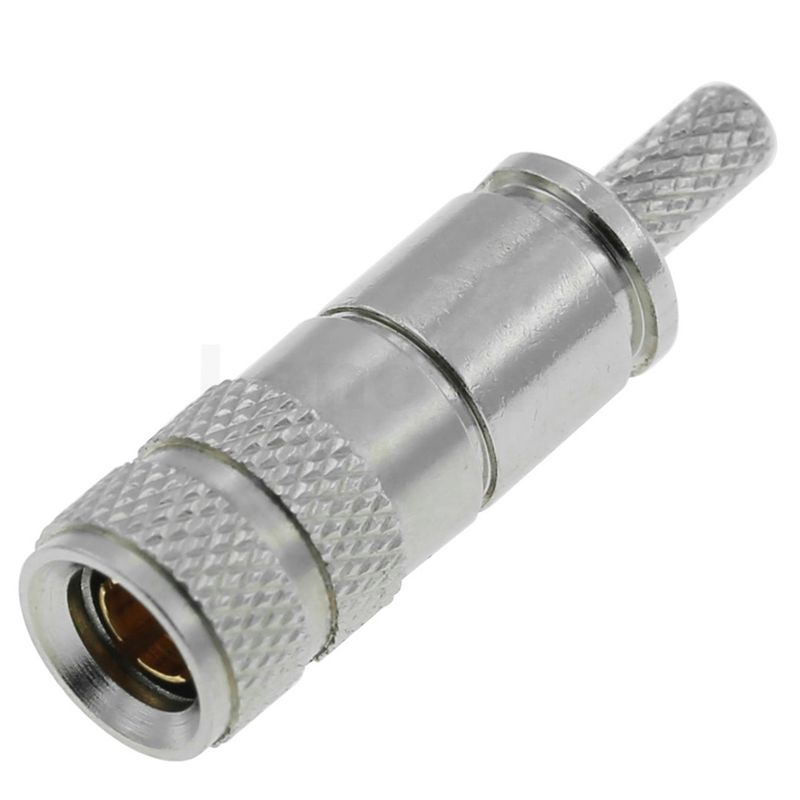

Miniature 1.0/2.3 Connector Plug Straight Crimping For ST779 Coaxial Cable
You are here: Home » Products » RF Connector » 1.0/2.3 RF Connector » Miniature 1.0/2.3 Connector Plug Straight Crimping For ST779 Coaxial Cable
Share to:

Miniature 1.0/2.3 Connector Plug Straight Crimping For ST779 Coaxial Cable

The European telecommunications sector introduced the 1.0-2.3 connector series in the 1990s. Because of its tiny size, this interface is ideal for applications with limited space.
DIN 1.0-2.3 connectors are available in 50 ohm and 75 ohm variants, with maximum frequencies of 10 GHz and 4 GHz, respectively. These performance requirements allow high-density and high-data-rate digital broadcast formats such as audio, video, and other activities. The DIN 1.0-2.3 connector series complies with international standards DIN 41626, DIN 47297, and NFC 93-571.
  • 22-826
  • 80-7161-104-03
  • Male
  • Straight
  • Crimping
  • Crimping
  • ST779
  • 80-7161-104-03.pdf
  • 80-7161-104-03.stp
Availability:
Quantity:

Body PlatingNickel
Body MaterialBrass
Cable Type ST779
Contact PlatingGold
Contact MaterialBeryllium copper
Contact TerminationSoldering/Crimping
Coupling MechanismSnap on
HS Code8536909000
Frequency (Max GHz)3
GenderPlug
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Size CategoryMiniature
Temperature Range-65   -165 °C
Mating Cycles500   Min
Interface SpecificationMIL-STD-348

FAQ

1. Sample delivery time

Regular model need 15 days, some complex connectors need 25 days


2. Sample Fee

The most of RF connector is CNC parts,don't need to make mold.

Through, each part need be tuning the CNC, usually one sample need 200 USD cost.

The fee will return after 5K bulk order


3. The Quarantee

Brass RF connector is one year, the stainless steel connector is three year.

Also, depend on the material of contact, Beryllium contact have better lifetime.


4. ROHS&REACH

Our product fully compliance with ROHS&REACH.


5.Does LENORF offer military class product

Yes. We honor to offer military product with super stable quality.


6. MOQ

Regular connector: 500PCS.

Adaptor:100PCS

Military connector:100PCS


7. Materials

The popular material is brass,stainless steel for body, PTFE,PEEK for insulator,

brass, phosphor bronze, beryllium copper for contact, as well as aluminum,titanium alloy.


Application:

Telecommunication,Military,Broadband,Industry,Medical,5G,Radar,Aerospace.
