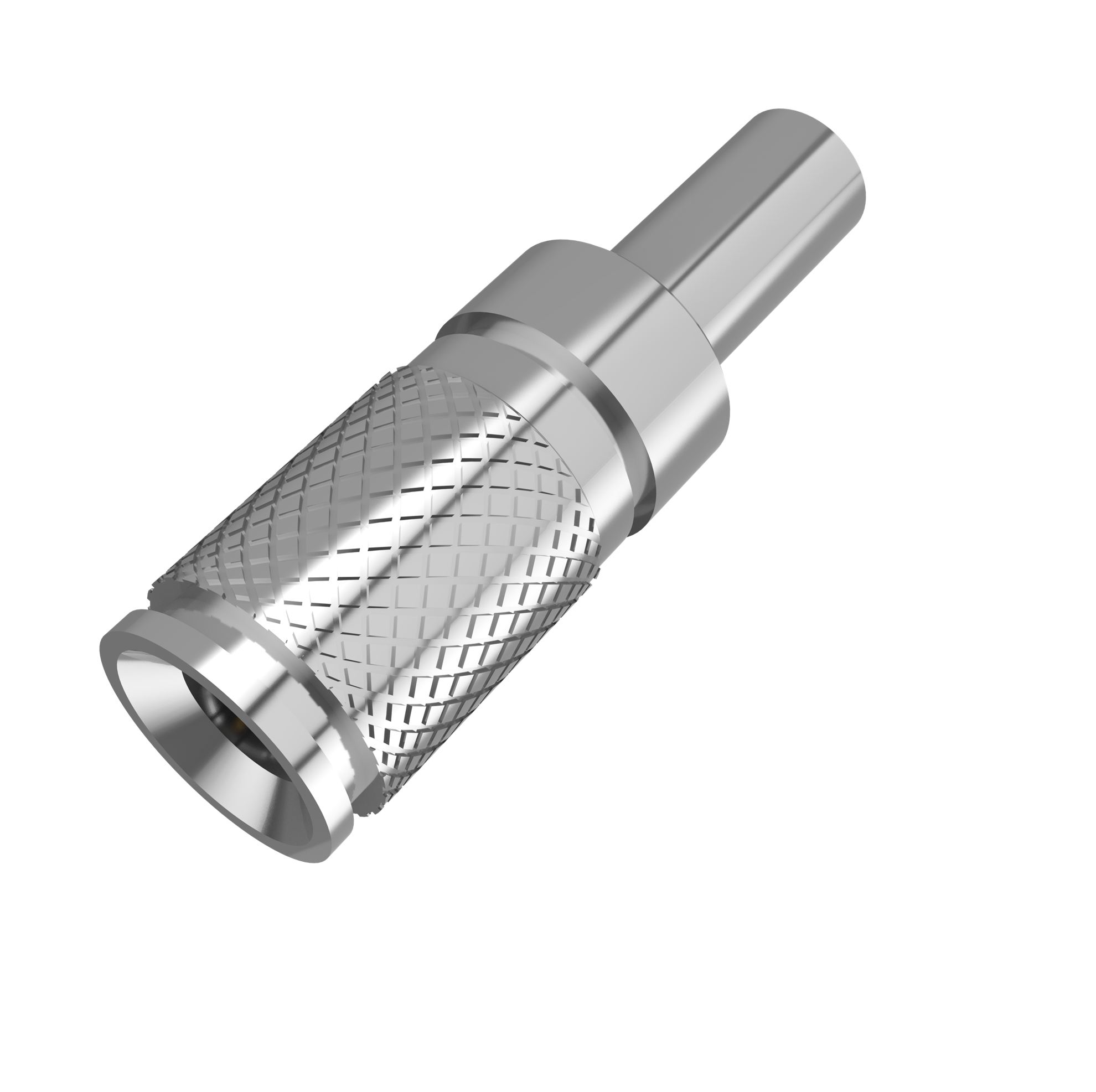

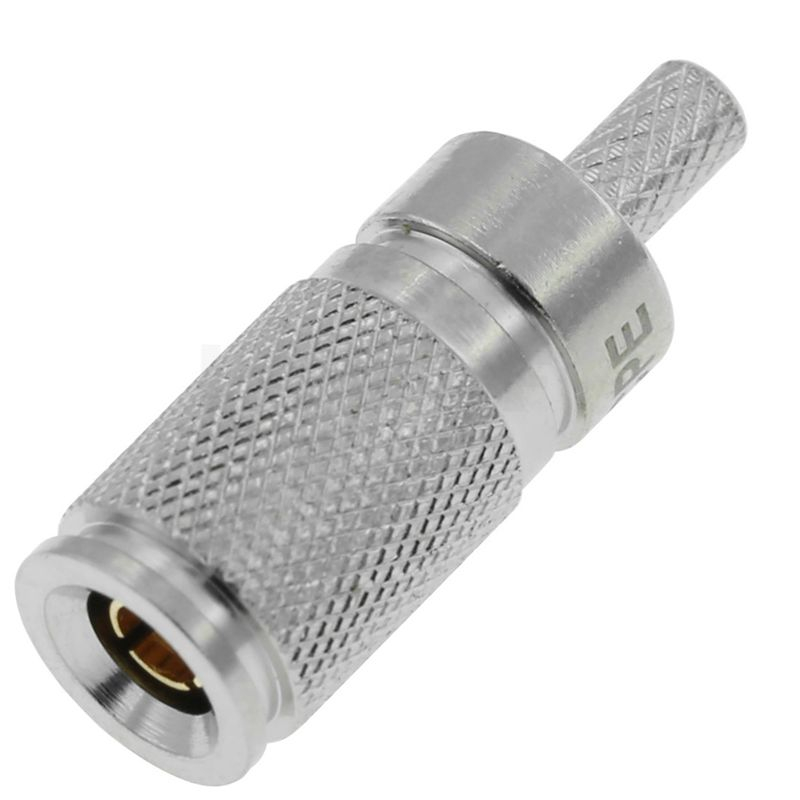

1.0/2.3 Connector Plug Straight Crimping For ST212 Coaxial Cable

The European telecommunications sector originally introduced the 1.0-2.3 connector series in the 1990s. Because of its compact size, this interface is ideal for applications that need a high density of connections.
The DIN 1.0-2.3 connector is available in 50 ohm and 75 ohm variants, with maximum frequencies of 10 GHz and 4 GHz, respectively. These performance criteria allow for high-density, high-data-rate digital broadcast formats such as audio, video, and other activities. DIN 41626, DIN 47297, and NFC 93-571 are all international standards that the DIN 1.0-2.3 connector family adheres to.

  • 22-528

  • 80-7161-104-05

  • Male

  • Straight

  • Crimping

  • Crimping

  • ST212

  • 80-7161-104-05.pdf

  • 80-7161-104-05.stp

Availability:
Quantity:
Inquire Add to Basket

Body PlatingNickel
Body MaterialBrass
Cable Type ST212
Contact PlatingGold
Contact MaterialBeryllium copper
Contact TerminationSoldering/Crimping
Coupling MechanismSnap on
HS Code8536909000
Frequency (Max GHz)3
GenderPlug
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Size CategoryMiniature
Temperature Range-65   -165 °C
Mating Cycles500   Min
Interface SpecificationMIL-STD-348


Previous:
Next:
1.0/2.3 Connector Plug Straight Crimping For ST212 1.0/2.3 Connector Plug Straight Crimping Coaxial Cable 1.0/2.3 Connector Plug Straight ST212 Coaxial Cable Crimping 1.0/2.3 Connector Plug Coaxial Cable Straight Crimping For ST212 1.0/2.3 Connector Plug Straight Crimping ST212 1.0/2.3 Connector Plug ST212 Coaxial Cable 1.0/2.3 RF Connectors DIN41626 RF connector 1.0/2.3 cable assemblies

Related Products

1.0/2.3 Female Straight PCB RF Connectors
1.0/2.3 Female Straight PCB RF Connectors

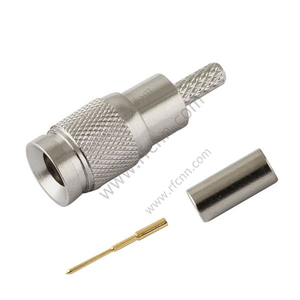

1.0/2.3 Connectors Male Straight Crimping For ST212 Cable
