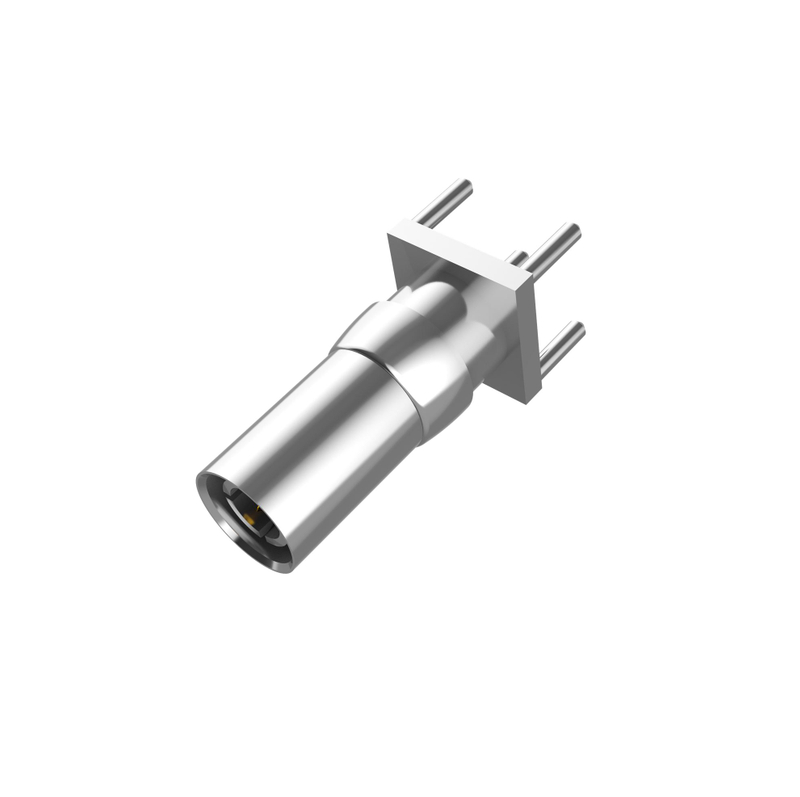

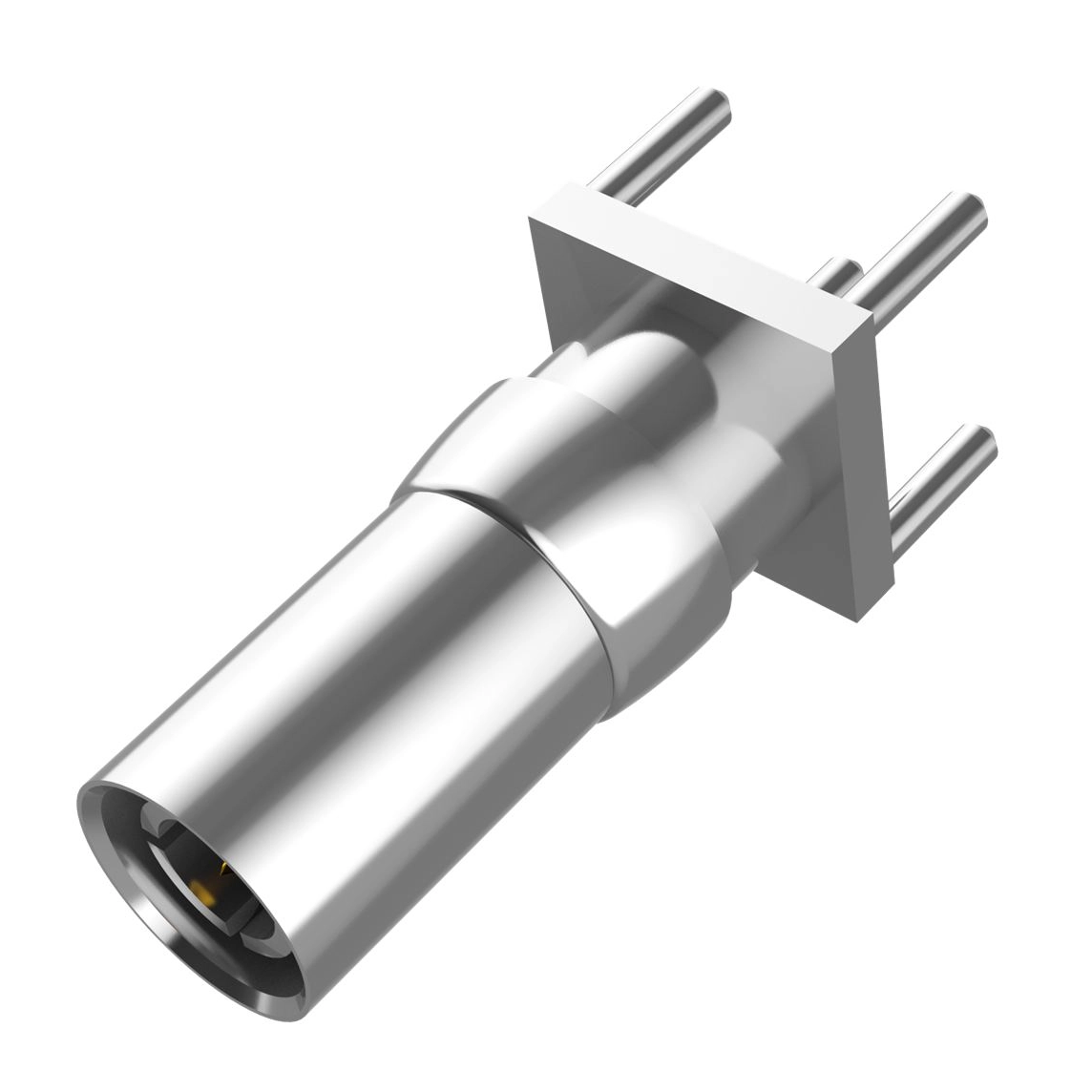

DIN41612 1.0/2.3 Connector Plug For PCB Mount

The European telecommunications sector originally introduced the 1.0-2.3 connector series in the 1990s. Because of its compact size, this interface is ideal for applications that need a high density of connections.
The DIN 1.0-2.3 connector is available in 50 ohm and 75 ohm variants, with maximum frequencies of 10 GHz and 4 GHz, respectively. These performance criteria allow for high-density, high-data-rate digital broadcast formats such as audio, video, and other activities. DIN 41626, DIN 47297, and NFC 93-571 are all international standards that the DIN 1.0-2.3 connector family adheres to.
  • 80-5161-011-01

  • Male

  • Straight

  • PCB Hole through

  • Soldering

  • N/A

  • 80-5161-011-01.pdf

  • 80-5161-011-01.stp

Body   PlatingNickel
Body MaterialBrass
Cable Type -
Contact PlatingGold
Contact MaterialBeryllium   copper
Contact TerminationCrimping
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)3
Impedance (Ohms)50
Insulator MaterialPTFE
Size CategoryStandard
Temperature Range-65   -165 °C
Termination StyleCrimping
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
